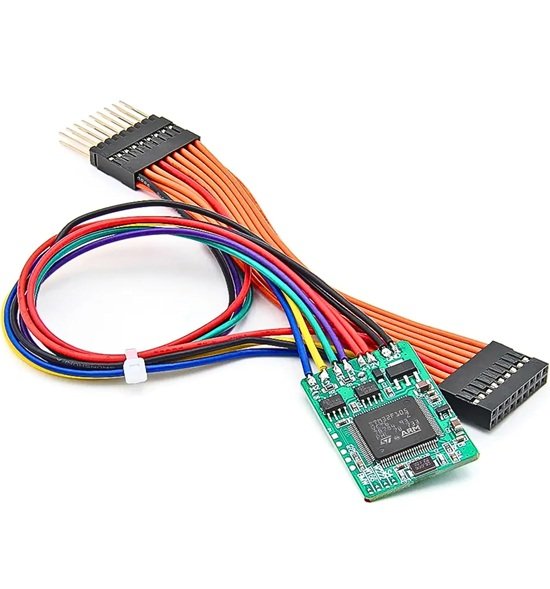

Newest MB Can Filter 18 in 1 Can Filter for Universal Mileage Emulator CAN Filter for Mercedes Benz Odometer W222, W205, W447, 204, W212, BMW, 18 in 1 Type-B W222 W205 W447 204 W212 E W207 W246 for Benz BMW Universal Filter

The Universal MB CAN Filter 18-in-1 is a specialized module used to block mileage data synchronization between a vehicle’s Electronic Control Unit (ECU) and the instrument cluster. It is primarily used after (or sometimes before) odometer adjustments to prevent the vehicle’s original high mileage from being restored to the dashboard.
Key Features
Universal Compatibility: Works with 18 different Mercedes-Benz chassis types and several BMW F-series models.
Safe Operation: Designed to filter data without interrupting other electronic systems or triggering Diagnostic Trouble Codes (DTCs).
Stable Performance: Heatproof (up to 105°C) and built with high-quality PCB materials for long-term reliability.
Supported Vehicles
Mercedes-Benz: S (W222, W221), C (W205, W204), V (W447), E (W212, W207), A (W176), G (W463), ML (W166), SL (R231), GL (X166), B (W246), CLS (W218), SLK (R172), SLS (W197), CLA (W117), and GLK (X204).
BMW: CAS4/FEM F-series (F01, F02, F07, F10, F18, F20, F25, X3, X5).
Installation Guidelines
Vehicle Group Timing of InstallationWiring Notes
Most Models Install after mileage adjustment. Follow standard wiring diagram for the specific dashboard.
Benz W222/W205/W447 Install before mileage adjustment.Short circuit the “New Style” configuration points to GND.
BMW Models Install into instrument cluster, CAS, or FEM. Must short circuit the two BMW-specific dots on the board before connecting.
Wiring Pinout
The standard Yanhua MB CAN Filter uses the following color-coded wires for connection:
Black: GND (Ground)
Red: +12V Power
White: +5V Power
Purple: L1 (CAN_L1)
Green: H1 (CAN_H1)
Yellow: L2 (CAN_L2)
Blue: H2 (CAN_H2)
For more technical diagrams or to purchase this tool, you can check retailers like Amazon.ae or AliExpress.
Do you need the specific wiring diagram for one of these models, such as the W222 dashboard or BMW FEM module?
