Alfaobd Software with J2534 VCI Openport Diagnosis for Chrysler / Dodge / Ram / Jeep 2005 – 2023

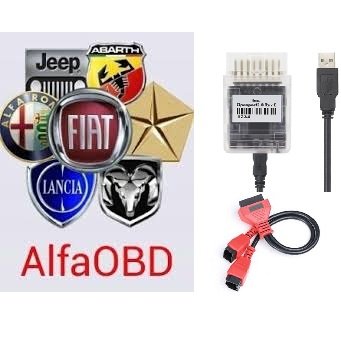

This Package Including Alfaobd Software, Openport J2534 VCI, and 12+8 FCA Bypass Cable

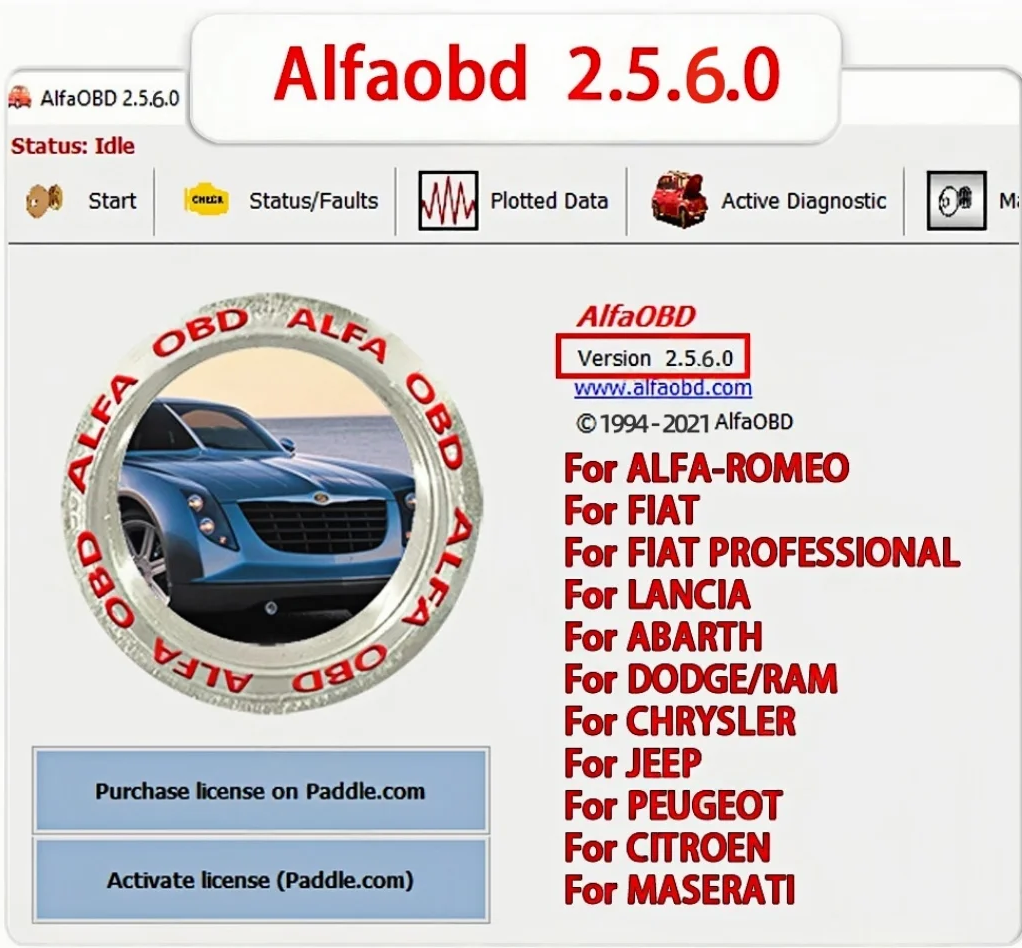

AlfaOBD is a diagnostic software for the vehicles produced by Stellantis (former Fiat Chrysler Automobiles FCA) group.

In general, 1994 – 2023 Fiat / Alfa Romeo / Lancia, and 2005 – 2023 Chrysler / Dodge / Ram / Jeep vehicles are supported. For a particular model support see Supported Vehicles list.

The software is primarily targeted to serve the needs of the car owners, but it provides many of the professional scanner features.

The AlfaOBD app natively supports the Electronic Control Units (ECU), which differs AlfaOBD from the OBDII / EOBD diagnostic applications, because they only provide limited generic access to the engine and transmission modules and sometimes to the ABS.

The AlfaOBD software is available on the Windows PC (OS XP / 8 / 8.1 / 10 / 11) .

The AlfaOBD features include:
monitoring various dynamic parameters of engine, transmission, body, dash, ABS, climate control, etc., and graphical presentation as adjustable plots
reading of the static data: ECU id, system status, fault codes (DTC) with probable causes and environment information (freeze frames) where applicable
clearing of fault (DTC) codes, monitoring the system for the occurence of new faults
active diagnostics and configuration procedures for various equipment controlled by the ECUs. Service light reset, engine oil change, DPF regeneration, ABS bleed, air suspension maintenance, transmission calibration procedures, and many more.
electronic key and RF remote control programming on some vehicle models
adjustment of the car configuration with the ability to activate the newly installed equipment in the Body computer configuration, the Proxy alignment.

Security Gateway bypass (model years 2018 and later)
Starting from the model year 2018 (2017 Fiat 500L) Stellantis (FCA) installs the Security Gateway Module (SGW) blocking third-party diagnostics. AlfaOBD has no software solution yet. As a workaround please use a hardware SGW bypass module.

Owners of Alfa Romeo Giulia / Stelvio, Fiat 500X / Argo / Chronos / Toro, Jeep Renegade / Compass MP, Ducato Serie 8, RAM ProMaster 2022+, make sure that the bypass supports the second high-speed CAN bus. This bus is connected to the pins 12 and 13 of the car OBD socket.
Openport VCI J2534;
Technical Details
72Mhz 32-bit processor
USB 2.0 full speed device (USB-A/Mini cable included)
Field upgradeable software
Supports these major OBD protocols:
CAN 2.0 (CAN/ISO15765)
K-line (ISO9141/ISO14230(KWP2000)/dual K line)
J2534 PassThru support with Windows DLL
Standalone datalogs to microSD / microSDHC card without a laptop
Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector
Able to log from Innovate Motorsports 2.5mm stereo MTS data bus
RGB status LEDs;

AlfaOBD is an advanced diagnostic software designed specifically for vehicles produced by the Stellantis group (formerly Fiat Chrysler Automobiles or FCA). It goes beyond basic OBD-II scanners by providing “dealer-level” access to almost every electronic control unit (ECU) in supported vehicles.
Key Capabilities
The software is widely used by DIY enthusiasts and professionals for tasks that typically require a trip to the dealership:
Deep Diagnostics: Reads and clears fault codes (DTCs) from the engine, transmission, ABS, airbags, climate control, and body computer.
Customization & Coding: Enables hidden factory features like Daytime Running Lights (DRL), fog lights with high beams, and trailer brake controllers.
Configuration: Performs “Proxy Alignment” to sync new hardware modules with the vehicle’s computer.
Service Tasks: Resets service lights, performs oil changes, initiates DPF regenerations, and bleeds ABS systems.
Advanced Features: Programs new electronic keys and remote fobs (often requires a 4-digit PIN from the dealer) and corrects speedometers for different tire sizes.
Compatibility
Vehicles: Generally supports Fiat, Alfa Romeo, Lancia (1994–2023) and Chrysler, Dodge, RAM, Jeep (2005–2023). It also covers some Peugeot (Boxer) and Citroen (Jumper) models.
Hardware: Requires a compatible OBD interface (like OBDLink MX+ or EX).
Note for 2018+ Models: Most 2018 and newer FCA/Stellantis vehicles have a Security Gateway Module (SGW) that blocks third-party tools. To use AlfaOBD on these cars, a physical hardware bypass cable is required.
Platforms: Available for Windows PC and Android. It is not natively available for iOS.
Are you looking to use this for a specific vehicle model or a particular modification?
You can find the hardware and specialized automotive tools at Jabedul Dewan Trading Co, LLC in Dubai, which specializes in importing and selling automotive diagnostic scanners and programming devices.
Jabedul Dewan Trading Co, LLC
This establishment is an authorized dealer for several diagnostic brands and provides technical support for the tools they sell.
Location: Shop F98, Nesto Hypermarket Building, Meena Bazaar, 64 St, Al Fahidi, Bur Dubai.
Contact: +971 50 997 0171 (Available via WhatsApp).
Hours: Daily from 9:00 AM to 11:00 PM.
Products: They list a variety of ECU programmers and diagnostic tools, including the Openport 2.0 interface and original PCMFlash equipment.
Purchasing AlfaOBD Software
While local traders often bundle hardware with various software, AlfaOBD itself is primarily sold as a digital license directly from the developer to ensure official updates and support.
Would you like to verify if Jabedul Dewan Trading currently has the Openport 2.0 in stock before visiting?
