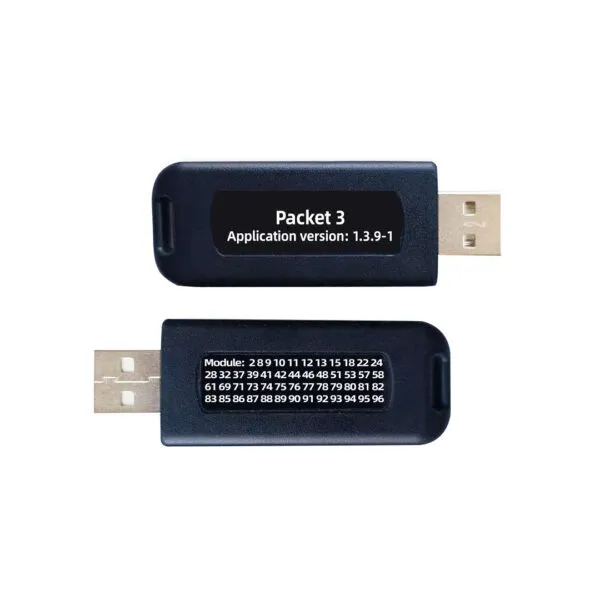

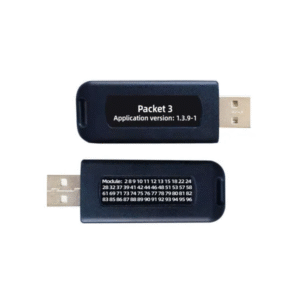

Ecupark Packet 3 is a specialized USB software dongle used for automotive ECU (Engine Control Unit) programming and tuning. It serves as a license authorization tool that allows technicians to read, write, and modify engine and transmission software when used with compatible hardware and virtual machines.
Key Features and Capabilities
Active Licenses: It comes pre-authorized with a specific set of module licenses (including numbers 2, 8, 9, 10, 11, 12, 13, 15, 18, 22, 24, 28, 32, 37, 39, 41, 42, 44, 46, 48, 51, 53, 57, 58, 61, 69, 71, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, and 96).
Hardware Compatibility: It is designed to work with PCM-Flash compatible hardware such as SM2 Pro, PCMTuner, ISSBD Universal J2534, openport, PCM-Master, and SM3.
Vehicle Support: It provides coverage for a wide range of vehicles, including various models from Ford (e.g., Kuga 2, Explorer 2011+), Mazda (1st generation), and several diesel engines for tasks like fuel map adjustments and shift point tuning.
Technical Requirements & Usage
Software Environment: The tool must be run within a virtual machine (VM), which is typically provided with the dongle.
OS Support: It is compatible with Windows 10 (64-bit).
Connectivity: Users are strictly advised not to connect to the internet while the software is in use to avoid license issues or software lockouts.
Are you looking to use this for a specific vehicle make or do you need help setting up the virtual machine?

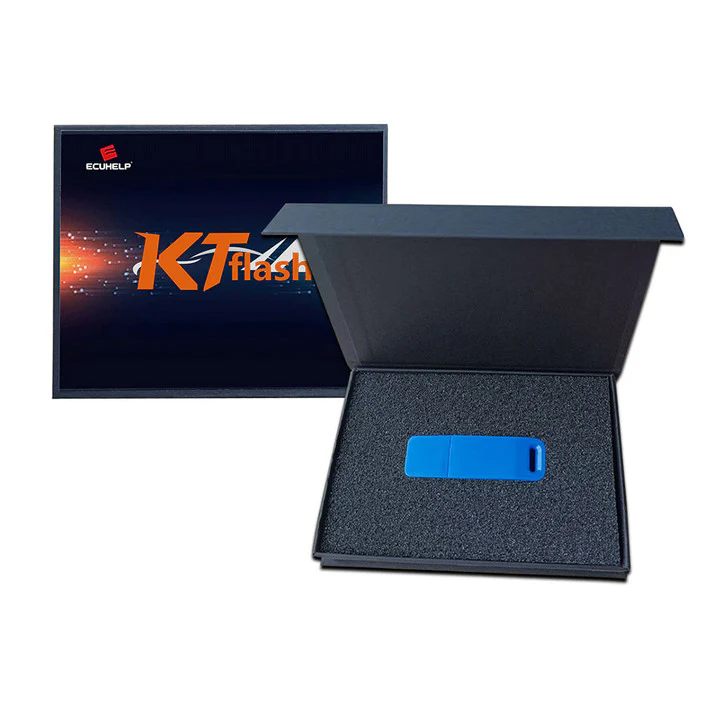

ECUHELP KTflash is a specialized software dongle developed by ECUHELP that integrates ECU/TCU reading, writing, and modification via OBD or Bench modes without opening the cover. It supports DTC removal, map modification, and works with J2534 hardware (like Scanmatik) for various automotive vehicles.
Key Features of ECUHELP KTflash:
Integrated Functions: Combines reading, writing, and modifying in one tool, allowing for real-time module activation.
Modes of Operation: Supports OBD and Bench modes for ECU/TCU, eliminating the need to open the unit.
Advanced Features: Includes built-in functions for DTC OFF (diagnostic trouble code removal) and map modification.
Hardware Compatibility: Works with any J2534-supported hardware, including genuine or clone Scanmatik Pro.
No Subscription: It operates without an annual fee.
KTflash is designed to provide a convenient, all-in-one solution for automotive practitioners to manage engine and transmission control units.
Module 2
Ford Kuga 2, Ford Explorer 2011+
Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)
Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)
Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS
Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS
Reading, writing, checksum correction.
Module 8
Mazda 1st generation (2004–2008/10)
Mazda: 1.6L Z6 AT (Mazda3 2004+)
Mazda: 1.6L Z6 MT (Mazda3 2004+)
Mazda: 1.3L ZJ (Mazda Demio 2003+)
Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda3/6/CX7 2003+)
Mazda: 1.3L N3 (Mazda RX8 2003+)
Mazda: 1.3L N3 (Mazda RX8 -2008)
Mazda: 1.3L N3 (Mazda RX8 2009–2012)
Mazda: 2.0L LF USA (Mazda3 -2009/1MB)
Mazda: Melco TCM (Mazda5/6 512KB)
Mazda: Aisin TCM (Mazda MX5 512KB)
Reading, writing, checksum correction.
Module 9
Mazda 2nd generation (2008/10-2012/13)
1.3L, 1.5L ZJ/ZY (Mazda2 2011+)
1.5L ZY (Mazda2 US 2011+)
1.6L Z6 (Mazda3 2010+)
1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+)
2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+)
2.0L LF (Mazda Biante 2013+/2MB)
Reading, writing, checksum correction.
Module 10
Mazda 3rd generation (2012+)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Mitsubishi)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Denso)
Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 SkyActiv Mitsubishi)
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 SkyActiv Denso)
Mazda: 1.6L Z6 (Denso)
Reading, writing, checksum correction.
Module 11
ECU programming FOR Mazda 3rd generation (2012+) crypto
ECU programming FOR Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 SkyActiv Denso Crypted)
ECU programming FOR Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso Crypted 2MB)
ECU programming FOR Mazda: 1.5L, 2.2L SKYACTIV-D S5/SH (Mazda2/3/CX5/6 Denso Crypted 3.75MB)
ECU programming FOR Mazda: 1.6L Z6 (Denso Crypted)
Reading, writing, checksum correction
Module 12
Honda/Acura CAN-bus
Honda: Honda PGM-FI Generic Read-Only
Honda: Honda AT/CVT/DCT Generic Read-Only
PGM-FI (Keihin SH7058/1MB)
PGM-FI (Keihin SH72543/2MB)
PGM-FI (Keihin SH72546/3.75MB)
PGM-FI (Keihin MPC5566/3MB)
PGM-FI (Keihin TC1782/2.5MB)
PGM-FI (Keihin TC275/4MB)
PGM-FI (Keihin TC277/4MB)
AT/CVT/DCT (Keihin 512KB)
AT/CVT/DCT (Keihin 1MB)
PGM-FI (Matsushita SH7058/1MB)
PGM-FI (Matsushita SH72543/2MB)
PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
PGM-FI (Panasonic TC179X/4MB)
AT/CVT/DCT (Matsushita 512KB) (Test)
Honda: PGM-FI (Continental MPC5554/2MB)
PGM-FI (Hitachi SH7058/1MB) (Test)
PGM-FI (Hitachi SH7059/1.5MB) (Test)
PGM-FI (Hitachi SH72543/2MB)
PGM-FI (Hitachi MPC5554/2MB) (Test)
AT/CVT/DCT (Hitachi SH72531/1280KB)
AT/CVT/DCT (Hitachi SH725x3/2048KB)
Reading, writing, checksum correction.
UDCT (Continental TC1782/2.5MB)
Writing, checksum correction.
Module 13
Honda/Acura K-Line
Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)
Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
Honda: Element/Inspire (Keihin SH7055/512KB)
Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)
Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)
Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)
Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)
Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)
Only writing, checksum correction. Stock files database included!
Module 15
Nissan/Infinity K-Line
EFI SH705415N (Hitachi SH7054/384KB)
EFI SH705507N (UJ/Hitachi SH7055/512KB)
EFI SH705513N (Hitachi SH7055/512KB)
EFI SH705520N (Hitachi SH7055/512KB)
EFI SH705821N (Hitachi SH7058/1MB)
EFI SH705823N (Hitachi SH7058/1MB)
EFI SH705524N Almera Classic (Hitachi SH7055/512KB)
EFI SH705529N Almera Classic (Hitachi SH7055/512KB)
EFI SH705826N (Hitachi SH7058/1MB)
Reading, writing, checksum correction.
Module 18
Nissan/Infinity CAN-bus
EFI Generic Read-Only (Hitachi)
EFI SH705519N (Hitachi SH7055/512KB)
EFI SH705822N, SH705828N (Hitachi SH7058/1MB)
EFI SH705927N (Hitachi SH7059/1.5MB)
EFI SH725331N (Hitachi SH72531/1.25MB)
EFI S7253332N (Hitachi SH72533/2MB)
Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB)
Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB)
Reading, writing, checksum correction.
Module 22
Renault
Valeo V40/V42 (SH7058/1024KB)
Sagem 3000 (SH7055/512KB)
EMS3110 (TC1766/1504KB)
Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB)
Duster, X-Ray EMS3125 (TC1782/2560KB)
Clio 4 1.6T EMS3150 (TC1767/2048KB)
Nissan: Juke 1.2T EMS3155 (TC1782/2560KB)
Reading, writing, checksum correction.
Module 24
Mitsubishi CAN-bus
MH Generic Read-Only
Colt MT (MH8304F/512KB)
Colt AT (MH8304F/768KB)
Colt RallyArt 1.5T (MH8104F/512KB)
Pajero AT (2007-) (MH8304F/768KB)
Pajero Sport (2010-) (MH8106F/1MB)
L200 2.4L MT (2008-) (MH8302F/512KB)
Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB)
ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB)
ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB)
Galant 9 2.4L (2005-) (MH8304F/768KB)
Pajero MT (2007-) (MH8302F/512KB)
Eclipse Cross (2018-) (MH8601/4MB) (MH8115F/1.25MB)
Expander (2018-) (MH8611/2MB)
Outlander 2.4L (Delphi SPC563M/1.5MB)
Reading, writing, checksum correction.
Module 28
VAZ/UAZ
Priora, Kalina 1.6L/16V, Niva 1.7L (M(E)17.9.7)
Patriot/Hunter/Bukhanka 2.7L (M(E)17.9.7)
Reading, writing, checksum correcton.
Module 32
Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017
Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)
Ford Kuga 3: 2.5L Duratec Hybrid [LV4A] (EMS2701)
Reading, writing, checksum correction.
Module 37
UAZ EDC16
Patriot/Hunter 2.2L ZMZ 5143.1 (EDC16C39-6.H1)
Writing, checksum correction.
Patriot 2.3L Iveco F1A (EDC16C39-5.A3)
Reading, writing, checksum correction.
Module 39
VAZ/UAZ ME17.9.71
UAZ: Patriot/Hunter/Bukhanka 2.7L (ME17.9.71)
VAZ: Niva 1.7L (ME17.9.71)
Reading, writing after unlocking, checksum correction.
ME17.9.71 (TC1724/BSL)
Reading.
Module 41
Scania EMS S6
Scania EMS/EDC S6 250Kbps (MPC555)
Scania EMS S6 500Kbps (MPC555)
Reading, writing, checksum correction.
Module 42
Denso SH705X Bootloader
SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)
Jaguar XE/F 2.0L Ingenium GTDI (MED17.9.9)
Reading, writing, checksum correction.
Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56)
Mitsubishi/Nissan/Subaru Diesel SH7058(S)/SH7059 EEPROM (86)
Subaru Metal-Case SH7055/SH7058 EEPROM (56)
Subaru Plastic-Case SH7058 EEPROM (86)
Subaru Plastic-Case SH7058S EEPROM (56)
Subaru Plastic-Case SH7058S EEPROM (86)
Suzuki Liana/Jimny SH7055 EEPROM (56)
Suzuki SH7055/SH7058 EEPROM (56)
Suzuki SH7058S EEPROM (56)
Volvo SH7058 EEPROM (56)
Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)
Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128)
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 FLASH (512KB)
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 EEPROM (86)
Reading, writin
Module 44
Scania EMS S7/S8
Scania EMS S7 250Kbps (MPC563)
Scania EMS S8 250Kbps (MPC5566) – reading requires dirct connection to the ECU
Scania EMS S8/EMD1 500Kbps (MPC5566) – reading requires dirct connection to the ECU
Reading, writing, checksum correction
Module 46
Toyota/Lexus/Scion/Hino 2 Generarion
76F0196/198/199/219 CAN-bus
Virtual Reading, Writing, checksum correction.
76F0196/198/199/219 P5-CAN-bus
76F0199 GearBox P5-CAN-bus
Reading, writing, checksum correction.
Module 48
VAG ME(D)17 UDS
1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)
1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27)
1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)
1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62)
1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)
5.2L FSI Master/Salve (MED17.1.1)
Reading, writing, checksum correction.
Module 51
China
Great Wall/Lifan ME17 (ME17.8.8)
Chery 1.5L/1.6L/2.0L D4G15/E4G16/SQR484 (ME17.8.8)
Chery 2.0L D4G20 (ME17.8.8)
Chery 1.5L/1.5T/2.0T E4G15C/E4T15C/D4T20 (ME17U6)
Chery 1.6T F4J16 (MED17.8.10)
Jetour 1.6T F4J16 (MED17.8.10)
GAC 1.5T/2.0T 4A15M1/4B20M1 (ME17.8.8.1) [Test] Great Wall/Haval MED17 (MED17.8.10)
Geely ME17 (ME17.8.8.1) [RD/WR/CK] reading requires direct connection to the ECU
Geely 1.8T MED17 (MED17.8.10/TC1728)
Geely 1.5T MED17 (MED17.8.10/TC1782)
MG MED17 (MED17.8.10)
SGMW 1.5L B15 (ME17U6/ECU6.1)
BAIC 2.0T (Delphi MT62.1)
BAIC 2.0T (Delphi MT95.1)
Chevrolet 1.5L Aveo/Sail 3 (ME17.8.8)
Changan 1.5L (Delphi MT62.1)
Changan CS35PLUS 1.6L, Eado 1.5T (Delphi MT92.1)
Changan CS75PLUS 1.5T (Delphi MT92.1E)
Changan 1.5T (Delphi MT95.1)
Chery 1.6L (Delphi MT62.1)
Chery 1.5T PHEV (Delphi MT62.3) [Test] Dayun 2.4T 4K22D4T (Delphi MT62.1U)
Dongfeng 2.0T (Delphi MT92)
Dongfeng/Fengon 2.0L (Delphi MT62/MT62.1)
Dongfeng/Fengon 1.5T (Delphi MT62.3)
Dongfeng/Fengon 1.8L (Delphi MT22.3)
Dongfeng/Fengxing 2.0L (Delphi MT62.1)
Dongfeng/Fengshen 1.5T (Delphi MT62.1U)
Dongfeng/Fengshen 1.5T (Delphi MT62.3)
Dongfeng/Nazhijie 1.8T (Delphi MT62.1)
Dongfeng/Oting 2.4L (Delphi MT62.1U)
Foton 2.4L (Delphi MT62.1U)
Foton 2.0L (Delphi MT95.1)
GAC 2.0T 4B20J1D (Delphi MT92.1)
GAC 2.0T 4B20J1D (Delphi MT95.1)
Geely/Great Wall/LuxGen MT80 K-Line
Geely/Great Wall/LuxGen MT80 CAN-bus
Great Wall 2.4L (Delphi MT62.1U)
Great Wall/Haval 1.5T, 2.0T (Delphi MT92/MT92.1)
Great Wall/Tank 3.0T Master/Slave (Delphi MT95.1)
Huanghai 2.4T (Delphi MT62.1)
JAC 1.5T (Delphi MT62.1)
JAC 1.5T (Delphi MT92.1E)
Lifan 1.8L (Delphi MT22.3)
Oting 2.0T (Delphi MT95.1)
SGMW 1.5T 280T (Delphi MT92.1)
Southeast 1.5L (Delphi MT22.3)
Southeast 1.5T (Delphi MT62.1)
Zotye 2.0T (Delphi MT62.1)
GAC 1.5T 4A15J1 (ME17U6/UP6.0)
GAC 1.5T 4A15J1 (MED17.8.10)
Chery 1.5T PHEV (Delphi MT62.3)
BAIC 2.4T 4K22D4T (Delphi MT62.1U)
Dongfeng/Oting 1.8T (Delphi MT92.1)
Jinbei 2.0L 1TZS (Delphi MT62.1)
Jinbei 1.6L SWDC16M (Delphi MT62.1U)
Junma/Traum 1.5T SFG15T (Delphi MT62.1)
SAIC 2.0L 1TZH (Delphi MT62.3)
Reading, writing, checksum correction.
Module 53
Infineon Tricore BSL
TC1762/TC1766 MICRO (1504KB)
TC1762/TC1766 EEPROM (32KB)
TC1792/TC1796 MICRO (2048KB)
TC1796 MICRO+EXT (4096KB/6144KB)
TC1796 EXT (2048KB/4096KB)
TC1792 EEPROM (64KB)
TC1796 EEPROM (128KB)
TC1738/TC1767 MICRO (2048KB)
TC1738/TC1767 EEPROM (64KB)
TC1797 MICRO (4096KB)
TC1797 EEPROM (64KB)
TC1797 MICRO+EXT (6144KB/8192KB)
TC1797 EXT (2048KB/4096KB)
TC1724/TC1728 MICRO (1536KB)
TC1724/TC1728 EEPROM (64KB)
TC1782/TC1784 MICRO (2560KB)
TC1782/TC1784 EEPROM (128KB)
TC1791/TC1793 MICRO (4096KB)
TC1791/TC1793 EEPROM (192KB)
TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
TC1791/TC1793 EXT (2048KB/4096KB)
Delphi MT86 EEPROM (16KB)
Delphi CRD3.1 EEPROM (32KB)
TC1736 MICRO (1024KB) [RD/WR/CK] TC1736 EEPROM (32KB) [RD/WR] EDC17C06 EEPROM (8KB) [RD/WR] EDC17CV41 EEPROM (32KB)
Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.
Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.
Module 57
SIMOS 8/10/11/12/PCR2.1
2.8L V6 FSI (SIMOS8.1)
3.2L V6 FSI (SIMOS8.2)
Reading, writing, checksum correction.
3.0L V6 TFSI (SIMOS8.3)
3.0L V6 TFSI (SIMOS8.4)
3.0L V6 TFSI (SIMOS8.5)
Reading, writing, checksum correction.
2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)
1.2L TSI (SIMOS10)
1.2L MPI (SIMOS11)
Reading, reading, writing, checksum correction.
1.8L TSI (SIMOS12.1/SIMOS12.2)
2.0L TSI (SIMOS12.1/SIMOS12.2)
Reading, writing, checksum correction.
1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
PCR2.1 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking).
Module 58
Temic TCU
DQ200MQB/G2 (0CW)
DQ250MQB (0D9)
DQ400 (0DD)
Reading, writing, checksum correction
VL381/DL382 (0AW/0CK)
DL501/G2 (0B5)
DQ250 (0AM)
DQ250E/F (02E)
VL300/V30 (01J/0AN)
Writing, checksum correction
DQ200/MQB/G2 Boot (EEPROM)
DQ250E/F/MQB Boot (EEPROM)
DL501/G2 Boot (EEPROM)
VL381 Boot (EEPROM)
DL382 Boot (EEPROM)
Honda UDCT Boot (Continental TC1782/EEPROM)
DQ200/MQB/G2/DQ400 Boot (EEPROM)
Reading, writing
DQ200/MQB/G2 Boot (MICRO)
DQ250E/F/MQB Boot (MICRO)
VL381 Boot (MICRO)
DL501/G2 Boot (MICRO)
DQ500 (0BH/0BT)
VL300/V30 BSL (FLASH)
VL300/V30 BSL (EEPROM)
DQ250C (02E)
DL382 Boot (MICRO)
Honda UDCT Boot (Continental TC1782/MICRO)
DQ200/MQB/G2/DQ400 Boot (MICRO)
Reading, writing, checksum correction.
EDC DC0/DC4 Gen2 (DKG250 Gen2) Boot (TC1784/MICRO)
EDC DC0/DC4 Gen2 (DKG250 Gen2) Boot (TC1784/EEPROM)
VGS-FDCT Boot (TC1766/MICRO)
VGS-FDCT Boot (EEPROM)
VGS2-FDCT Boot (TC1784/MICRO)
VGS2-FDCT Boot (TC1784/EEPROM)
Reading, writing in service mode
Haval 7DCT450 Bootloader (EAST80.D1 TC265/MICRO) [Test] Hyundai TAD801 D8F48W Bootloader (TC275/MICRO) [Test] Reading, writing, checksum correction
Haval 7DCT450 Bootloader (EAST80.D1 TC265/EEPROM) [Test] Hyundai TAD801 D8F48W Bootloader (TC275/EEPROM) [Test] Reading, writing
Module 61
Kia/Hyundai CPGDSH/CPEGD
1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
1.6L (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/UDS) [Test] 1.6L (CPGPSH3.26.1/UDS) [Test] Reading, writing, checksum correction.
1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS) – requires direct connection to the ECU
1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)
Reading, writing, checksum correction, unlocking
1.6L (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/UDS) [RD/WR/CK] 1.6L (CPGPSH3.26.1/UDS)
Reading, writing, checksum correction
CPEGD3/CPEGP3/CPGPSH3 CAN FD via Scanmatik 3
Module 69
Mercedes-Benz MED17/EDC17
MED17.7.1/17.7.2/17.7.3/17.7.3.1/17.7.5
Virtual reading, writing, checksum correction.
MED17.7.1/17.7.2/17.7.3/17.7.3.1
Aston Martin M177 (MED17.7.5)
Writing, checksum correction.
EDC17CP01/CP10 (only ECUs with extrenal FLASH memory)
EDC17CP46/CP57/CP60/C66
Reading, writing, checksum correction.
M156/M272/M273 (ME9.7)
Calibration reading, writing, checksum correction.
Module 71
Bosch MEDC17 Bootloader
(direct connection to the ECU connector, Scanmatik 2 Pro or Scanmatik 3, a connection cable and a power supply are required)
MEDC17 (TC1762/1766/1792/1796) FLASH
MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH
MEDC17 (TC1791/1793) FLASH
Reading, writing, checksum correction.
MEDC17 (TC1762/1766/1792/1796) EEPROM
MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM
MEDC17 (TC1791/1793) EEPROM
EDC17C06 EEPROM (8KB)
EDC17CV41 EEPROM (32KB)
MEV17.2 EXT EEPROM (8KB)
Reading, writing.
MEDC17 BSL PASSWORD
Reading.
Module 73
Ford MG1
Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A] Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A] Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A] Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A] Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A] Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA] Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A] Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A] Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A] Reading, writing, checksum correction
Module 74
Toyota/Lexus Gen 3
R7F701202/R7F701216 P5-UDS
LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test] Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test] Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test] Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK] Reading, writing, checksum correction
Module 75
Ford Power Stroke
Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [BC3A] Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [FC3A] Ford Truck: 6.7L Power Stroke V8 (EDC17CP65) [HC3A] Ford Truck: 3.0L Power Stroke V6 (EDC17CP65) [JL3A] Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [DC3A/FC3A] Reading, writing, checksum correction
Module 76
Kia/Hyundai Gearbox
Kia/Hyundai: MG7.9.8/MEG17.9.12 Gearbox (ST10F275/TCU)
Reading, writing
Kia/Hyundai: TC14 Gearbox (MPC562/TCU)
Kia/Hyundai: TC60/TC80/ME(D)G17.9.8/13 Gearbox (SH72549/TCU)
Kia/Hyundai: SIM2K-24x/341 Gearbox (TC1766/TCU)
Kia/Hyundai: SIM2K-24x Gearbox (TC1738/TCU)
Kia/Hyundai: SIM2K-341 Gearbox (TC1738/TCU)
Kia/Hyundai: SIM2K-143 Gearbox (TC1738/TCU)
Kia/Hyundai: CPTSH2.08.2 Gearbox (SH72544/TCU)
Reading, writing, checksum correction
Kia/Hyundai: MEG17.9.21 Gearbox (SH72549/TCU)
Writing, checksum correction. Reading can be done with Module 82
Module 77
Bosch ME9/MED9/EDC7/EDC16/PSG16/TCU Bootloader
(direct connection to the ECU, Scanmatik 2 Pro/Scanmatik 3, a connection cable OR a quality J2534 device + Powerbox for PCMflash are required)
ME9/MED9/EDC7/EDC16/PSG16/TCU (MPC556/MPC562/MPC564)
ME9/MED9/EDC7/EDC16/PSG16/TCU MICRO (MPC556/MPC564)
ME9/MED9/EDC7/EDC16/PSG16/TCU EXT (MPC556/MPC562/MPC564)
Reading, writing, checksum correction;
ME9/MED9/EDC7/EDC16/PSG16/TCU EEPROM (MPC556/MPC562/MPC564)
Reading, writing.
Module 78
Subaru Gearbox
Melco CVT CAN-bus (1N83M/1552KB MH8111/1536KB MH5006/1024KB MH8104/512KB)
Reading, writing, checksum correction
Module 79
Mitsubishi CAN-bus Bootloader
direct connection to the ECU is required
CAN-bus Bootloader FLASH (MH8114F/MH8115F/MH8501F)
CAN-bus Bootloader FLASH (MH8601F/MH8610F/MH8611F/1N83M)
Reading, writing, checksum correction.
Module 80
Denso SH725XX/1N83M Bootloader
direct connection to the ECU is required
SH725xx FLASH
1N83M FLASH
Reading, writing, checksum correction
SH725xx EEPROM
1N83M EEPROM
Reading, writing
Module 81
JLR Gearbox
ZF 6HP26/6HP28 TCM (MPC5xx/TC1766)
ZF 8HP70 TCM (SH725xx)
ZF 8HP45/8HP70 TCM (TC2xx)
ZF 9HP48 TCM (TC1782)
ZF 6HP28 Continental TCM (TC1766) [AH42-Ax] AWF21 Freelander 2/Evoque TCM [Test] Reading, writing, checksum correction.
ZF 9HP48 TCM EEPROM (TC1782)
ZF 6HP28 Continental TCM (TC1766) EEPROM [AH42-Ax] Reading, writing.
Module 82
Bosch SH725XX TCU Bootloader
Direct conneсtion to the ECU is required! Working with Tactrix OpenPort 2.0 is not supported! Working with Scanmatik 2/PRO/Scanmatik 3, Dialink, Chipsoft, Mongoose, CarDAQ has been checked.
Bosch SH725xx TCU
Flash Reading, Writing, Checksum corrections
Bosch SH725xx TCU
EEPROM Reading, Writing, Checksum corrections
Module 83
VAG Bosch DQ380/DQ381/DQ500/ZF 8HP
DQ380/381/500 (0DE/0DL/0GC)
AL450/AL551/AL951 (0CM/0BK/0BL)
AL552/AL952 (0D5/0D6)
AL1000/AQ250/AQ450 (0C8/09G) UDS
AL420/AL600 (09L/09E) K-Line [Test] AL420/AL600 (09L/09E) CAN TP2.0 [Test] reading, writing, checksum correction
AL600/AL750/AQ250 (09D/09G) K-Line [Test] AL750/AQ250 (09D/09G) CAN TP2.0 [Test] Reading, writing, checksum correction
Module 85
Ford Gearbox
6HP26 TCM
6HP26 TCM
5R110 TCM
6R80/6R140 TCM [BC3A] 6F55/8F40/10R80/10R140 TCM [HC3A/HL3A/JL3A/JX6A/LC4A] 8F40/10R80/10R140 TCM [K1GA/K2GA/LC3A/LK4A] Reading, writing, checksum corrections
Module 86
China Gearbox
Changan Alsvin 5DCT (EAST80.51/SPC563M)
Chery CVT19 (EAST80.11/MPC5534)
Chery CVT18/CVT25 (EAST80.13/SPC563M)
Chery/Exeed VX 8AT 2023MY (Aisin 845AHA)
Reading, writing, checksum correction
Changan Alsvin 5DCT Bootloader (EAST80.51/SPC563M)
Chery CVT25 Bootloader (EAST80.13/SPC563M)
Reading, checksum correction
Geely DSI 6AT
GAC 7WDCT (ATDG-81-9.4)
Huanghai A8R50 (ATDG-81-9.4)
Changan DF733 (ATDG-81-9.4)
Reading, writing, checksum correction
Geely Coolray 7DCT330
Haval 7DCT450 (EAST80.D1)
Haval 7DCT300 (HYCET)
reading, reading, writing, checksum correction
Module 87
PSA DCM6.2
Citroen/Peugeot 2.0L HDi (DCM6.2A)
Citroen/Peugeot 2.0L HDi (DCM6.2C)
Reading, writing, checksum correction.
Module 88
Ford AdBlue
AdBlue REDCM (DCU17PC43) [KV6A] Reading, writing, checksum correction.
Module 89
China MG1
Changan 1.4T, 1.5T, 2.0T (UD8/MG1US008)
Chery/Exeed 2.0T F4J20 (MG1US008)
Great Wall/Haval 1.5T, 2.0T (MG1US008)
Haval Jolion 1.5T (MG1UA008)
JAC J7 1.5T (UP8/MG1UA008)
FAW 1.5T, 2.0T (UD8/MG1US008)
Geely 1.5L (MG1UA008)
SWM 1.5T (MG1UA008)
Geely/Livan 1.5T (MG1US708) [Test] BAIC 1.5L A151A1 (MG1UA008)
JAC T9 2.0T (UD8/MG1US008)
DongFeng 1.5T (UP8/MG1US008)
SGMW 1.5L/1.5T N15A/N15T (MG1UA008)
Reading, writing, checksum correction.
Module 90
China DCM6.2AP/DCM7.1AP/DCM7.24
Dongfeng 2.3L TD (DCM7.1AP)
Dongfeng/Yuchai 2.4L TD (DCM7.1AP)
Great Wall/Haval 2.0L TD (DCM6.2AP)
Great Wall/Haval 2.0L TD (DCM7.1AP)
JAC 2.0L TD (DCM6.2AP)
Qingling/Isuzu 3.0L TD (DCM6.2AP)
Qingling/Isuzu 3.0L TD (DCM7.1AP)
Trucks (DCM6.24) [Test] JCB 4.4L, 4.8L TD (DCM7.24)
Changan 2.0L TD (DCM7.1AP)
Foton/Vanche/Yuchai 2.4L TD (DCM7.24)
Jiangling/Isuzu 2.8L TD (DCM7.1AP)
JAC 2.0L TD EEPROM (DCM6.2AP)
Reading, writing, checksum correction.
JCB 4.4L, 4.8L TD EEPROM (DCM7.24)
Foton/Vanche/Yuchai 2.4L TD EEPROM (DCM7.24)
Great Wall/Haval 2.0L TD EEPROM (DCM7.1AP)
Reading, writing
Module 91
Mercedes Benz CRD3/CRD3P
Mercedes-Benz CRD3/CRD3P FLASH
Mercedes-Benz CRD3/CRD3P EEPROM
Reading, writing, checksum correction.
Module 92
Bosch MD1/MG1 Bootloader
MD1/MG1 FLASH (SPC572L/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)
MD1/MG1 FLASH (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)
T93 SPC5888
Reading, writing, checksum corrections
MD1/MG1 EEPROM (SPC572L/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)
MD1/MG1 EEPROM (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)
Reading, writing
Note: Scanmatik 2 PRO or Dialink (partial support) is required. Work is only possible with ECUs with the old protection system (the implementation of the new one began in mid-2020).
Module 93
India DCM2.5(P)/DCM2.7/DCM7.1AP
Ashok Leyland TD (DCM2.5)
Ashok Leyland 1.5L TD (DCM7.1AP)
Ashok Leyland LCV TD (DCM7.1AP)
Eicher E366/E474 2.0L, 3.0L TD (DCM7.1AP)
Force Motors 2.6L TD (DCMx7.1AP)
Kia/Hyundai 1.6L TD (DCM7.1AP)
Mahindra TD (DCM2.5)
Mahindra 1.6L TD (DCM2.7AP)
Mahindra 1.5L TD (DCM7.1AP)
Tata 1.5L TD (DCM7.1AP)
Tata LCV TD (DCM7.1AP)
Tata TD (DCM2.5/DCM2.5P)
Tata Truck TD (DCM7.24)
Reading, writing, checksum correction
Mahindra 1.6L TD EEPROM (DCM2.7AP) [Bench] Mahindra 1.5L TD EEPROM (DCM7.1AP) [Boot] Reading, writing
Module 94
Aisin TCU Bootloader
Aisin SH705x TCU (FLASH)
Aisin D70F4019 TCU (FLASH)
Aisin R7F701204/R7F701215/R7F701216 TCU (FLASH)
Aisin R7F7012xx TCU (FLASH)
Reading, writing, checksum correction
Aisin SH705x TCU (EEPROM)
Aisin D70F4019 TCU (EEPROM)
Aisin R7F701204/R7F701215/R7F701216 TCU (EEPROM)
Aisin R7F7012xx TCU (EEPROM)
Reading, writing
Module 95
Toyota/Lexus Gen 4
Direct connection to the ECU required!
LC300/LX600/Tundra 3.5T P5-UDS (V35A-FTS/R7F702002)
LS500 3.5T P5-UDS (V35A-FTS/R7F702002)
Tundra 3.5T HV P5-UDS (V35A-FTS/R7F702002)
NX350/RX350/Highlander 2.4T P5-UDS (T24A-FTS/R7F702002)
LC250 2.8TD P5-UDS (1GD-FTV/R7F701216)
RX450h/Camry/Corolla/Vellfire 2.0L, 2.5L HV P5-UDS (M20A/M20E/A25A/A25B/R7F701216)
Yaris GR 1.6T MCU #1 P5-UDS (G16E-GTS/R7F701216) [Test] Reading, writing, no checksums
Module 96
ZF TC1782/TC275/TC277 TCU Bootloader
Direct connection to the ECU required!
ZF TC1782/TC275/TC277 TCU (FLASH)
Reading, writing, checksum correction
ZF TC1782/TC275/TC277 TCU (EEPROM)
Reading, writing
Reviews
There are no reviews yet.
