QDB-5A Car Sensor Tester Oscilloscope PWM Motor Driver Diagnostic Tool

What is QDB-5A 3A 4A Automatic Diagnostic Tool Tester

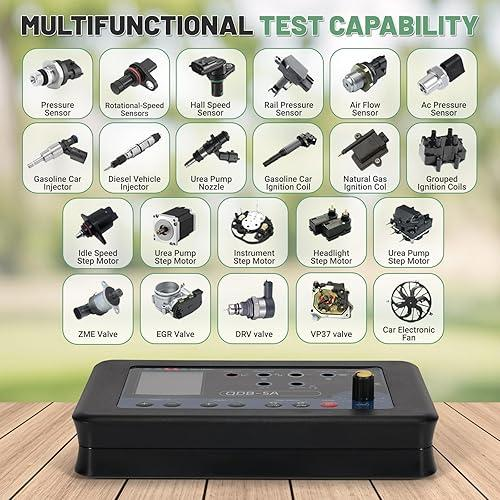

The QDB-5A/4A/3A series is a multi-function automotive diagnostic tool designed to drive and test various vehicle actuators, including ignition coils, fuel injectors, and stepper motors. Unlike a simple code reader, these tools simulate electrical signals to verify if specific engine components are functioning correctly under load.

Core Diagnostic Functions
The tool is primarily used by mechanics to bypass the car’s ECU (Electronic Control Unit) and manually trigger components to isolate faults.
Ignition Coil Tester: Drives independent, coil-type, and modular ignition coils to check for spark performance.
Fuel Injector Drive: Tests 12V gasoline injectors and 12V/24V diesel injectors.
Solenoid & Valve Testing: Can drive fuel metering valves and various solenoid valves using adjustable duty cycles.
Stepper Motor Driver: Diagnoses idle air control (IAC) motors, instrument cluster needles, and headlight steering motors.
Urea Pump Testing: Specifically supports testing urea (AdBlue) pumps and motors for diesel emissions systems.
Technical Specifications
The device acts as a signal generator and measurement tool with the following capabilities:
PWM Generator: Features an adjustable frequency from 1Hz to 100kHz and a duty cycle from 1% to 100%.
Built-in Multimeter: Measures voltage (0-30V), resistance (0-1MΩ), current (0-1.8A), and capacitance (10nF-1000uF).

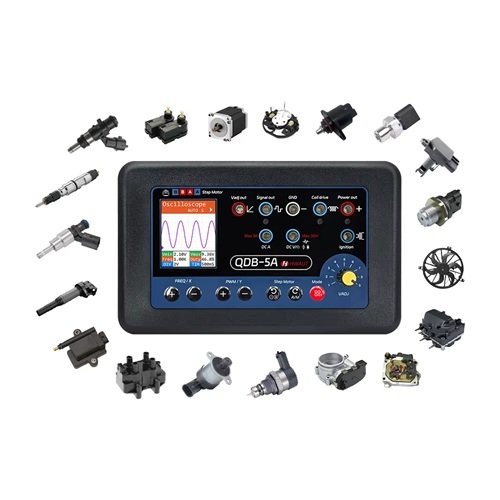

Oscilloscope Integration: The upgraded QDB-5A includes a built-in oscilloscope for real-time waveform analysis of sensor signals.
Power Supply: Operates on a wide voltage range of DC 9V to 26V, making it compatible with both 12V and 24V vehicle systems.
Safety Features: Equipped with reverse connection protection and overcurrent protection to prevent damage to vehicle electronics.
Differences Between Models
QDB-3A: The base version focused on basic actuator driving (coils, injectors, solenoids).
QDB-4A: Adds improved stability and broader compatibility for newer vehicle sensors.
QDB-5A: The most advanced version, adding a TFT color screen, higher driving current (up to 3.5A for some components), and integrated oscilloscope and multimeter functions.
Are you looking to troubleshoot a specific engine component, such as a misfiring ignition coil or a faulty fuel injector?
The QDB-5A is a multi-functional automotive diagnostic tool used to test and drive various vehicle actuators and sensors, such as ignition coils, fuel injectors, and stepper motors. In Dubai, it is typically sold through automotive tool distributors or major online marketplaces.
What is the QDB-5A?
The QDB-5A is an upgraded automotive actuator drive detector and signal simulator. It is designed for mechanics and DIY car enthusiasts to diagnose electrical faults without guesswork.
Core Functions: It can drive and test ignition coils (independent and module types), fuel injectors (12V/24V), solenoid valves, fuel metering valves, and various stepper motors used in idle control or instrument clusters.
Diagnostic Tools: Unlike earlier models like the QDB-3A, the QDB-5A features a built-in oscilloscope for real-time waveform analysis and a multimeter that measures voltage, resistance, and current.
Signal Simulation: It can simulate Hall signals for sensors like air conditioning pressure and air flow meters by adjusting frequency and duty cycles.
Specifications: It operates on a 12V–24V power range and includes safety features like reverse connection and overcurrent protection.
Where to Buy in Dubai, UAE
While “Jabedul Dean Trading” (likely Jabedul Dewan Trading Co LLC) is associated with automotive services in the region, the tool is widely available through specialized diagnostic equipment retailers and online platforms.
Online Marketplaces:
Amazon.ae: Frequently stocks various iterations of this tester, including the QDB-4A and related models.
AliExpress: A primary source for the HWAUT QDB-5A, often offering various bundles with test leads and connectors.
Local Specialized Stores: Jabedul Dewan Trading llc , Dubai, UAE, Contact+971509970171
