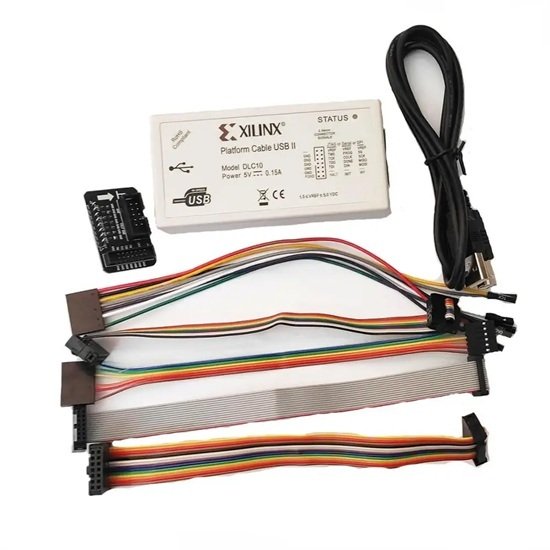

The Xilinx DLC10 (often referred to as the Platform Cable USB II) is a high-performance hardware tool used to program, configure, and debug Xilinx-based electronic components. It acts as a bridge between your computer’s USB port and the target hardware’s JTAG interface.
Core Functions
Programming: It downloads configuration files (bitstreams) to FPGAs (Field Programmable Gate Arrays) and CPLDs (Complex Programmable Logic Devices).
Debugging: It allows engineers to monitor internal signals in real-time using tools like ChipScope Pro or Vivado Logic Analyzer.
Flash Programming: It can indirectly program external SPI and parallel NOR flash memories via the FPGA’s JTAG port.
Key Specifications
Interface: Connects to a PC via USB 2.0 (High-Speed) and to the target board via a 14-pin or 10-pin ribbon cable.
Voltage Support: Automatically adapts to target board I/O voltages ranging from 1.2V to 5.0V.
Download Speed: Supports JTAG clock speeds up to 24MHz or 30MHz, depending on the specific model or clone version.
Compatibility:
Software: Works with AMD/Xilinx Vivado, ISE Design Suite, and IMPACT.
Hardware: Supports all Xilinx device families, including Spartan, Virtex, Artix, Kintex, and Zynq.
OS: Compatible with Windows (XP through Windows 11) and various Linux distributions.
Why use it?
While many modern development boards have “on-board” USB programmers, the DLC10 is essential for custom hardware designs that only provide a raw JTAG header. It is also favored for its signal isolation, which protects both the PC and the target equipment from electrical damage during testing.
Do you need help installing the drivers for this cable on a specific operating system?
You can buy the Xilinx DLC10 Platform Cable USB directly from Jabedul Dewan Trading Co, LLC in Dubai, as they are a specialized supplier of programming tools and have listed this specific product for sale.
Jabedul Dewan Trading LLC (Dubai)
This merchant specializes in automotive diagnostic scanners and electronic programming tools.
Product Availability: They have listed the Xilinx Platform Cable DLC10 USB Download Cable JTAG Programmer (specifically for FPGA CPLD) for approximately AED 220.00.
Physical Location: Shop F98, Nesto Hypermarket building, 64 St, Meena Bazaar, Al Fahidi, Bur Dubai, Dubai, UAE.
Contact Number: +971 50 997 0171.
Operating Hours: 9:00 AM – 11:00 PM daily.
Online Option: You can also find their inventory on the Jabedul Dewan Trading Amazon UAE storefront, which often offers free next-day delivery.
