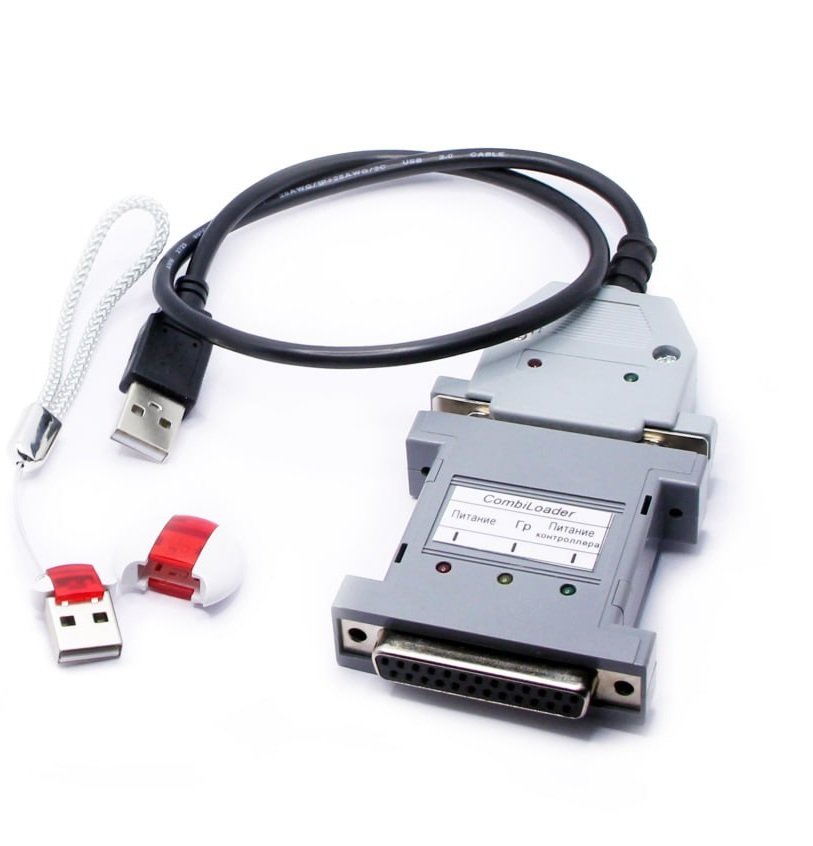

CombiLoader is a widely used software and hardware flash tool designed to read and write FLASH and EEPROM memory in electronic control units (ECUs) across various vehicles. When paired with a J2534 pass-thru interface, it allows tuners to flash vehicle firmware directly via the diagnostic OBD2 port, completely eliminating the need to remove or open the physical ECU.
⚙️ How CombiLoader Works via OBD2 & J2534
- Hardware Integration: The CombiLoader software runs on a PC and transmits data through a compatible J2534 adapter (such as Scanmatik 3 Pro or DiaLink), which plugs directly into the car’s standard OBD2 port.
- No-Dismantle Flashing: For many supported vehicle makes, the “diagnostic writing” mode modifies the map and calibration areas right inside the car.
- Safety Features: Modules generally offer automatic data checksum (CS) calculation to prevent the ECU from bricking after a modified file is written.
🚗 ECU Compatibility Overview (via J2534 Modules)
CombiLoader uses specialized, purchasable license modules depending on the vehicle brand and ECU type. Examples of major ECUs supported via J2534 include:
| Vehicle / Engine Group | ECU Models Supported | Flashing Capabilities |
| Ford | SID212 / SID212 EVO | OBD reading (full software/calibrations) and quick 3-minute writing. |
| VAG (VW, Audi, Porsche) | SIMOS 12/16/18 & Porsche SDI9/10 | Supports “Virtual Reading” and flashing over OBD. |
| Renault | EMS3180 | Full access to FLASH and EEPROM via OBD (with Renault Extra license). |
| Mercedes-Benz | SIM271DE 2.0 / SIM271KE 2.0 | Diagnostic reading and writing without opening the ECU casing. |
| Commercial (GAZ, KAMAZ) | Cummins CM876, CM2150, CM2220, CM2350 | Full configuration and FLASH modification via the OBD port. |
| General / Budget ECUs | Bosch M(E)7.x, MSE3.0, ITELMA M74.8/.9 | K-Line and CAN-bus writing methods through standard adapters. |
⚠️ Technical Pro-Tips for OBD Flashing
- Maintain Stable Voltage: Flashing over OBD2 can drain the vehicle’s battery quickly (some Ford SID212 modules can take up to 1 hour and 50 minutes to read). Always hook up a reliable battery stabilizer or charger.
- K-Line Speed Restrictions: If you are using a Scanmatik 2 adapter on older K-Line ECUs (like Bosch ME17.9.7 or M74), you may need to reduce your software transmission speed to 6 kbit/s due to differences in adapter resistor values.
- Language Limitations: While the CombiLoader Software Interface is widely translated into English, some individual specialized modules and technical help sections remain exclusively in Russian.
To help point you toward the correct module or software setup, could you share a bit more detail?
- What specific vehicle (Year, Make, Model) or ECU type (e.g., Bosch, Continental, Delphi) are you trying to read?
