DB15 Cable for PowerBox – Universal ECU Bench Programming Cable

DB15 Cable for PowerBox – Universal ECU Bench Programming Cable

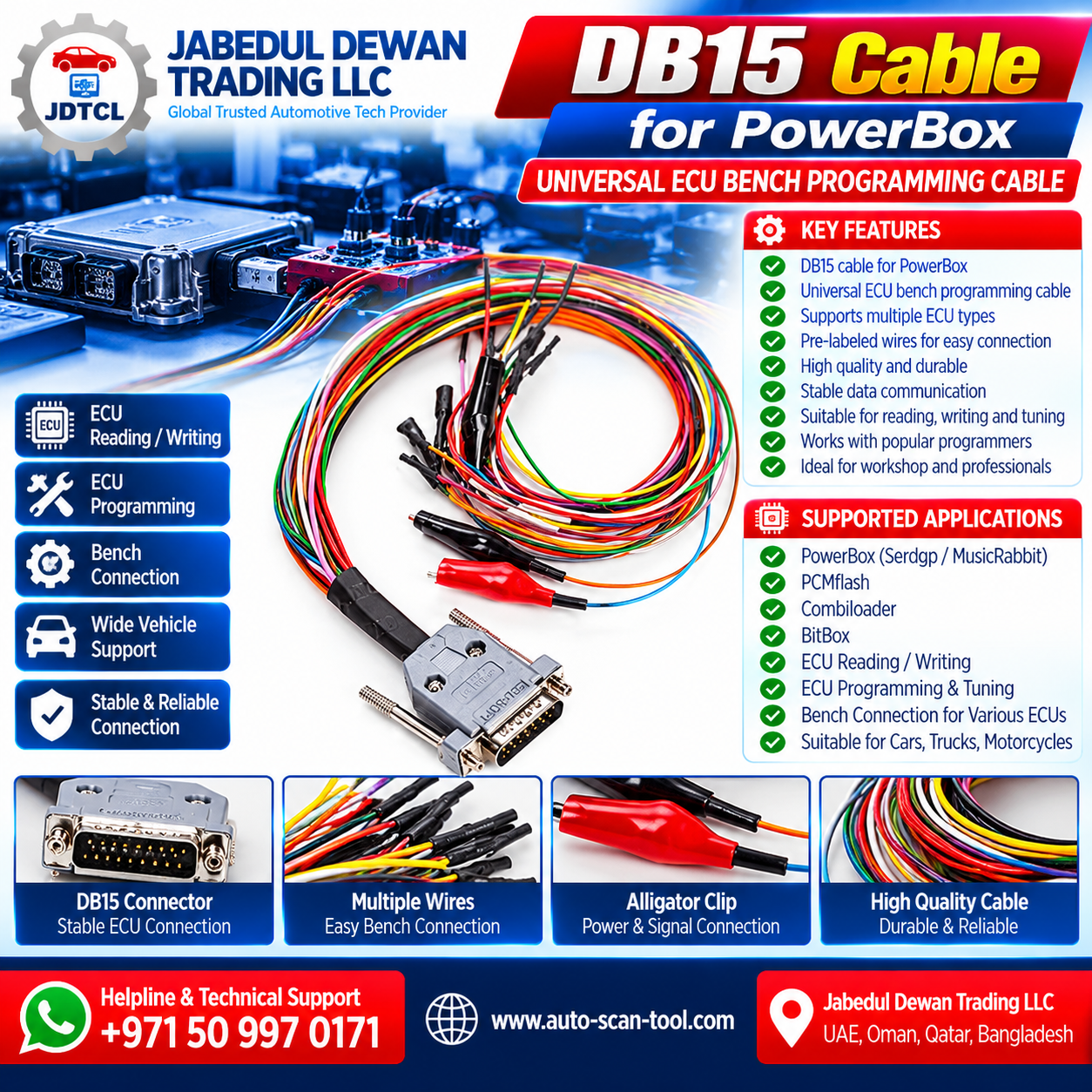

The DB15 Cable for PowerBox is a universal 15-pin bench connection cable designed for connecting compatible automotive control units to a PowerBox during ECU reading, writing, programming and chip-tuning work. It can be used with PowerBox setups for PCMflash, SMS-Soft Combiloader, BitBox and other compatible loaders.

The cable provides multiple dedicated signal and power lines for professional bench work. Additional VECU and VKEY contacts allow multiple power feeds, while separately marked GPT1/GPT2 and CAN-H/CAN-L lines help make ECU connection easier and reduce wiring confusion.

Key Features

• Universal DB15-PIN ECU connection cable
• Designed for compatible PowerBox bench setups
• Supports multiple ECU power and communication lines
• Additional VECU and VKEY contacts
• Separately identified GPT1 and GPT2 connections
• CAN-H and CAN-L connections
• BOOT, CNF1, K-Line and J1850 signal connections
• Color-coded and marked wires for easier bench connection
• Suitable for professional ECU reading, writing and programming workflows

Supported Tools / Applications

• PowerBox for PCMflash
• PowerBox for SMS-Soft Combiloader
• BitBox with compatible PowerBox setup
• Other compatible ECU loaders using PowerBox bench connections
• ECU bench reading and writing
• ECU programming and flashing
• Compatible chip-tuning and ECU service applications

DB15 Connection / Signal List

• Pin 1: BOOT – Brown
• Pin 2: VPP – Purple
• Pin 3: GPT2
• Pin 4: CNF1 – Blue
• Pin 5: VECU +12V – Red, 4 contacts
• Pin 6: J1850 L
• Pin 7: CAN-H – White
• Pin 9: VKEY – Orange, 4 contacts
• Pin 10: BOOT – Gray
• Pin 11: GND – Black, 2 contacts
• Pin 12: GPT1
• Pin 13: J1850 H
• Pin 14: K-Line – Yellow
• Pin 15: CAN-L – Green

Additional Marked Connections

• Gray BOOT wire: 0V, black crocodile clip
• Brown RESET wire: 0V, black crocodile clip
• Blue CNF1 wire: +3.3V, red alligator clip
