Foxflash ECU Support List

FOXFLASH TCU Support List

The foxFlash ECU Programmer is a master-version, multi-method chip tuning and cloning tool developed for automotive professionals, calibration engineers, and control unit repair shops. It provides comprehensive read, write, and clone functionalities for both Engine Control Units (ECUs) and Transmission Control Units (TCUs) across multiple vehicle sectors including cars, trucks, motorbikes, tractors, and marine boats.

Essential Operational Modes

• OBD Mode: Reads and writes data directly via the vehicle’s diagnostic port. It also supports Virtual Read (VR) processing to download original factory binaries directly from the developer’s servers.
• Bench Mode: Often referred to as service mode. This allows professionals to execute complete backups, clone units, and read/write internal flash, external flash, and EEPROM profiles without opening the metal enclosure.
• Boot / JTAG / BDM Modes: Specialized low-level interface modes requiring case removal. These protocols communicate directly with the microprocessor, making them critical for salvaging “bricked” controllers or handling stubborn Denso units.
• Full System Pinout: Enables standalone wire-by-wire connectivity directly to the pins of the module when standard harness paths are unavailable.

Key Specifications & Software Requirements

• System Upkeep: Requires no subscription or annual fees. Features automatic checksum calculation and offers free ongoing updates.
• Operating Connectivity: The software functions via the FoxFlash Manager tool. It is heavily internet-dependent, requiring an active web connection or mobile hotspot to validate certificates and communicate with the main architecture.
• Hardware Demands: Officially supported on 64-bit Windows 7, 8, 10, and 11 environments. The developer recommends a processing unit running above 2.5 GHz (Intel i5 or i7 equivalent) alongside a minimum of 4GB RAM
• Installation Cap: The license key limits the proprietary installer to a maximum deployment of up to 6 separate computer systems.

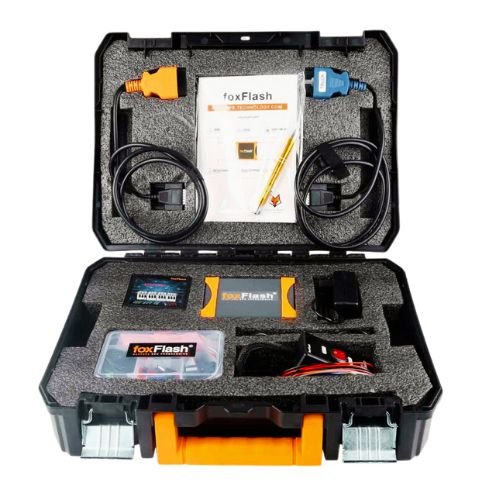

Included Hardware Extensions

Standard kits typically package the primary foxFlash interface alongside critical peripheral breakout options. This bundle includes basic OBD, USB, and heavy-duty truck power cables, paired with a specialized bench box for breakout connections. Advanced variant selections often add multi-pin expansion modules like the FoxFlash OTB 1.0 Expansion Adapter, designed to simplify ACM, DCM, and transmission module adaptation on a professional tier.

If you are considering adding this device to your workshop, let me know:

• What specific ECU/TCU models (e.g., Bosch EDC17, MED17, Continental) you need to clone?
• Whether you prioritize OBD virtual reading or raw bench-mode cloning?
• If you need a comparison between this tool and alternatives like the KT200 or FC200?
