GM ECU E86 LML ECM Utility

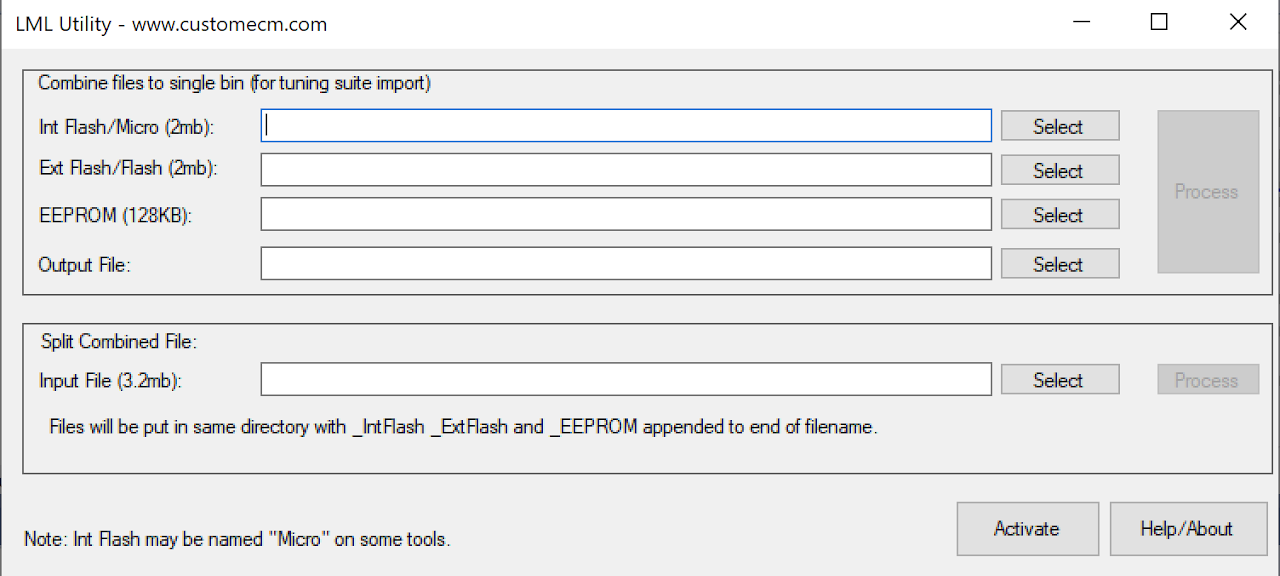

This utility takes the three files read out by a bench tool like KESS v3, KTAG, or MMS Flex and combines it into a single binary that can be imported into a tuning suite such as EFI Live. These ECMs are unreadable by OBD so this is a way to easily get the actual tune off your E86 ECM into a tuning software to make further edits! assuming you have the bench tool.      Download Link

The GM ECU E86 LML ECM Utility refers to specialized software or a programming tool module used to flash, clone, modify, or read data from the General Motors (GM) E86 Engine Control Module (ECM). This specific computer controls the 6.6L LML Duramax diesel V8 engine, which was found in Chevrolet Silverado and GMC Sierra HD trucks from 2011 to 2016.A breakdown of exactly what this utility interacts with and what it is used for includes:Technical Breakdown of the ComponentsE86: The specific hardware model identifier assigned by GM for this generation of powertrain control modules.LML: The GM engine code for the 6.6-liter Duramax diesel engine produced between 2011 and 2016.ECU / ECM: Engine Control Unit / Engine Control Module (the vehicle’s main engine computer).Utility: The software program or script (often embedded within tuning software suites like EFILive or specialist automotive diagnostic tools) that allows a laptop or handheld device to speak to that exact computer architecture.Primary Uses of the UtilityAutomotive technicians and tuners use this utility primarily for three complex tasks:ECM Cloning and Replacement:If a truck’s original E86 ECM fails, a replacement cannot simply be plugged in from a salvage yard. The utility allows an exact, 1-to-1 data transfer (including the security keys, Operating System, and vehicle VIN) from the original damaged module onto a donor module. This makes the replacement plug-and-play without requiring a trip to a GM dealership.Reading Segment and Serial Data:The utility can pull internal security signatures, flash blocks, and operating system serial numbers. This data is required by aftermarket custom tuning companies to build precise calibrations for a specific truck.Benchtop Programming:Because the E86 ECM features internal CAN-bus termination, this utility allows calibration engineers to completely program or re-flash the computer “on the bench” outside of the vehicle using a dedicated wiring harness.Are you looking to clone a damaged computer, or are you trying to set up tuning software for a 2011–2016 Duramax truck? Tell me your exact goal so I can provide the right instructions or hardware requirements.
