Motorcycle Diagnostic Tool OBDstar MotoMaster

OBDstar MotoMaster: Universal Device for Diagnostics, Programming, and Repair of Motorcycles

OBDstar MotoMaster is a new device from OBDSTAR that offers functions similar to the MS80. It is designed for working with motorcycles, scooters, ATVs, electric bikes, and other land-based motor vehicles, but does not support marine equipment.

Key Differences Between MotoMaster and MS80 STD:

Main Functions of OBDSTAR Moto Master for Motorcycle Diagnostics:

• Reading, Decoding, and Clearing Error Codes: Quickly identifies faults in the motorcycle, decodes error codes, and clears them after fixing the issue.
• Real-Time Parameter Reading: Displays current sensor readings such as temperature, engine RPM, oil pressure—helpful for assessing vehicle condition.
• Guided Diagnostics: Step-by-step instructions for accurate system checks and troubleshooting.
• Actuator Testing: Allows testing of individual components like valves, pumps, and other mechanisms to assess functionality.
• System Adaptations: Configuration of new components or resetting parameters after replacing parts like the throttle body or sensors.
• Control Unit Coding: Programming ECU functions to customize and optimize motorcycle performance.
• Control Unit Programming: Reflating and tuning ECUs to improve performance.
• Key Programming: Adding or removing keys for immobilizer systems.
• Odometer Correction: Adjusting mileage readings for supported models.
• ECU Firmware Work (Chip Tuning): Modifying firmware parameters to enhance power, fuel efficiency, or other characteristics.
• Service Interval Reset: Clearing maintenance reminders and performing other service-related functions.

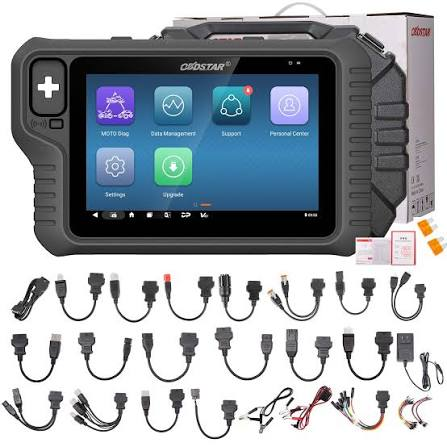

Package Contents:

• MotoMaster Tablet
• OBD2 Cable
• M003A Cable for direct ECU connection
• Adapter Set:
  • Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, Yamaha 3-pin
  • Kawasaki 4+6 pin
  • Suzuki 6 pin
  • Honda 4 pin
  • Yamaha 3+4+3 pin
  • KTM 6 pin
  • Aeon, Benelli, Benelli DSK, QJ Benelli 6 pin
  • SYM 3 pin
  • Kymco, Kawasaki 3 pin
  • Harley-Davidson 4+6 pin
  • Ducati 4 pin
  • BMW 10 pin
  • OBD 6 pin
  • Indian, Victory 8 pin
  • BRP 6 pin
• Power Adapter
• Power Cable with Alligator Clips
• GND Cable
• Carrying Case.
• The OBDSTAR MotoMaster is a new-generation, 8-inch Android 11 intelligent diagnostic scanner designed specifically for comprehensive multi-brand powersports troubleshooting. It functions as a dealer-level diagnostic tool for motorcycles, scooters, ATVs, UTVs, snowmobiles, and electric bikes (E-Motos).
  Core Diagnostic Capabilities
  The scanner goes well beyond basic code reading to deliver professional workshop features:
  • Complete System Diagnostics: Reads and clears fault codes (DTCs) across all available modules (ECM, ABS, CEM, instrumentation, etc.).
  • Advanced ECU Operations: Supports control module programming, component coding, CO adjustment, idle speed adjustment, and A/F value resets.
  • Active Testing: Runs actuator and action tests to diagnose hardware components directly.
  • Dynamic Data Streaming: Visualizes live data flows using text, waveform graphs, and interactive instrument gauge diagrams.
  • Intelligent Identification: Automates vehicle identification using automatic VIN scanning and system discovery.
  Advanced & Guided Maintenance Functions
  • Intelligent Diagnostics: Features “first fault guidance,” data flow assistance, and integrated technical service bulletins to expedite physical troubleshooting.
  • Interactive Wiring Systems: Employs an exclusive interactive circuit diagram and electrical query system directly on the tablet to trace electrical faults.
  • IMMO & Key Programming: Provides built-in immobilizer matching capabilities for many global motorcycle brands (certain Honda, Suzuki, and Yamaha bench operations require the optional P003+ adapter kit).
  • Cluster Recalibration & Flashing: Supports odometer recalibration (via OBD, Bench, or dump depending on the brand) and ECU flashing or cloning.
  • Mobile Integration: Companion mobile software assists mechanics with diagnostic link connector (DLC) socket location imagery and manual service lamp resets.
  Hardware & Configuration Options
  The tool is packaged as an 8-inch ruggedized touch tablet built with a physical navigation keypad, a built-in kickstand, and a heavy-duty hard shell case storing a massive array of brand-specific proprietary adapters.
  The scanner is typically distributed by official platforms like OBDSTAR Store and VXDAS in two main variations:
  Version Tier Vehicle Coverage Included Software Features
  Standard (STD) Version Motorcycles, ATVs, UTVs, Snowmobiles, E-Motos Full diagnostics, key coding, cluster recalibration, and flashing.
  Full Version All Standard vehicles plus Marine/Jet Skis Complete powersports coverage including full marine engine diagnostics.
  Both tiers utilize Wi-Fi for fast, one-click over-the-air (OTA) software upgrades.
  Good to Know
  • Language limit: The MotoMaster native software operates strictly in English.
  • Marine lock: Standard versions will not scan jet skis; an explicit software upgrade license is needed for marine lines.
  • Subscription model: Software access requires a recurring annual renewal fee to retain active updates and database coverage.
