OBD2 16 Pin Male to Open Wire Pigtail Cable – J1962 Diagnostic & ECU Programming Harness

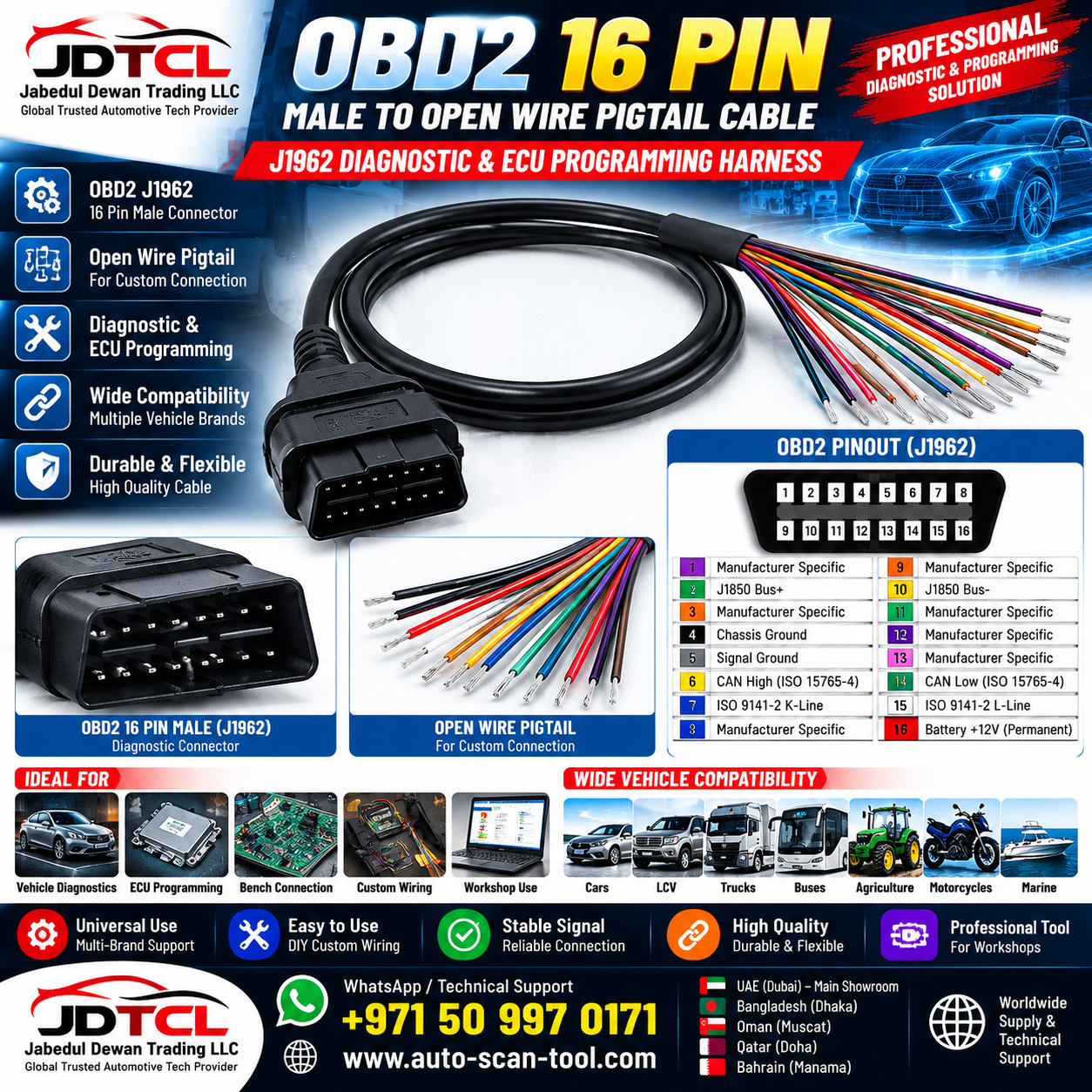

OBD2 16 Pin Male to Open Wire Pigtail Cable

This universal OBD-II J1962 male connector cable provides individually accessible open wire leads for custom automotive diagnostic, testing, wiring and programming applications. It is ideal for technicians, ECU/TCU programmers, automotive electricians, workshops and DIY developers who need direct access to OBD connector circuits.

Key Features

• Standard 16-pin OBD2 / OBD-II J1962 male connector
• Open-ended individual wire leads for custom wiring
• Allows access to power, ground and supported vehicle communication lines
• Suitable for custom diagnostic adapters, breakout harnesses and bench setups
• Useful for ECU/TCU diagnostic and programming interface projects when wired according to the equipment manufacturer’s pinout
• Flexible cable design for workshop and test-bench use
• Can be adapted to many OBD-II equipped vehicle applications

Support / Application List

• OBD-II diagnostic interface wiring
• ECU diagnostic bench harness projects
• ECU / TCU programming harness projects
• J2534 Pass-Thru interface custom connections
• CAN Bus access: CAN High / CAN Low where applicable
• K-Line diagnostic communication where applicable
• SAE J1850 communication lines where applicable
• Power and chassis/signal ground connections
• OBD extension or replacement cable projects
• Custom breakout box and test-lead construction
• Automotive electrical troubleshooting and signal testing
• Workshop, laboratory and DIY automotive electronics projects

Common OBD-II Pin Functions

Common standardized functions include Pin 4 chassis ground, Pin 5 signal ground, Pin 6 CAN High, Pin 7 K-Line, Pin 14 CAN Low and Pin 16 battery positive. Pins 2 and 10 may be used for SAE J1850 on compatible vehicles. Other pins can be manufacturer-specific.

Vehicle Compatibility

Designed for use with vehicles and equipment using a standard 16-pin OBD-II diagnostic connection, subject to the required protocol and pin configuration. Applications may include passenger cars, SUVs, vans, light commercial vehicles and other compatible automotive systems.

Important: Wire colors are not a universal OBD-II pinout standard. Always identify each conductor and verify the exact pin assignment, voltage, polarity and equipment wiring diagram with a multimeter before connection. Incorrect wiring can damage the vehicle ECU, diagnostic interface or programming equipment. This is a passive wiring cable and does not itself provide diagnostic or programming functions.

Package Includes

1 × OBD2 16-Pin Male Connector to Open Wire Pigtail Cable.
