VNCI MF J2534 Ford Mazda special inspection supports Ford Mazda IDSv130+ software. No license is required to start the IDS software through the loader, and the IDS offline function can be used directly. FDRS and MDARS online software can be supported after installing the license. It can realize automatic switching function between J2534 Passthru and ELM327 modes, and supports J2534 passThru software system (Techstream/Hondas HDS/JLR SDD/Volvo VIDA/PCM falsh…etc) and ELM327 system (ELMConfig/Forscan/ ScanMaster.etc);;
Product advantages
No license is required, start the IDS software through the loader
Support SAE J1850 module programming
Supports all J2534 Pashru and ELM327 software
Supports Ford Mazda models from 1996 to 2022
Great value choice, only RMB 599
Support online module programming and online PATS/RKE learning
Support SAE J1850 PWM 83.3K baud rate
Support 18V programming voltage, support FEPS5-20V, adjustable voltage, support reading programming voltage
Support EEC-V multi-item data recorder and support PTEC multi-item data recorder
Support power balance performance test and CANBUS module programming
Support online software update
Free Calculation of Ford Mazda PIN Codes Before 2012
VNCI MF J2534 portocol lists
ISO9141
ISO14230
J1850 VPW
J1850
PWM(Ford SCP)
ISO11898
HS(500K BPS)
ISO11898 MS(125K BPS)
ISO15765 HS(500K BPS)
ISO15765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal);
The VNCI MF J2534 is a specialized Vehicle Network Communication Interface (VCI) designed primarily for Ford and Mazda vehicle diagnostics and programming. It acts as a bridge between your computer’s diagnostic software and the car’s OBDII port.
Key Capabilities
Software Compatibility: It specifically supports Ford IDS and Mazda IDS version v130 and newer. It also works with modern cloud-based systems like FDRS and MDARS.

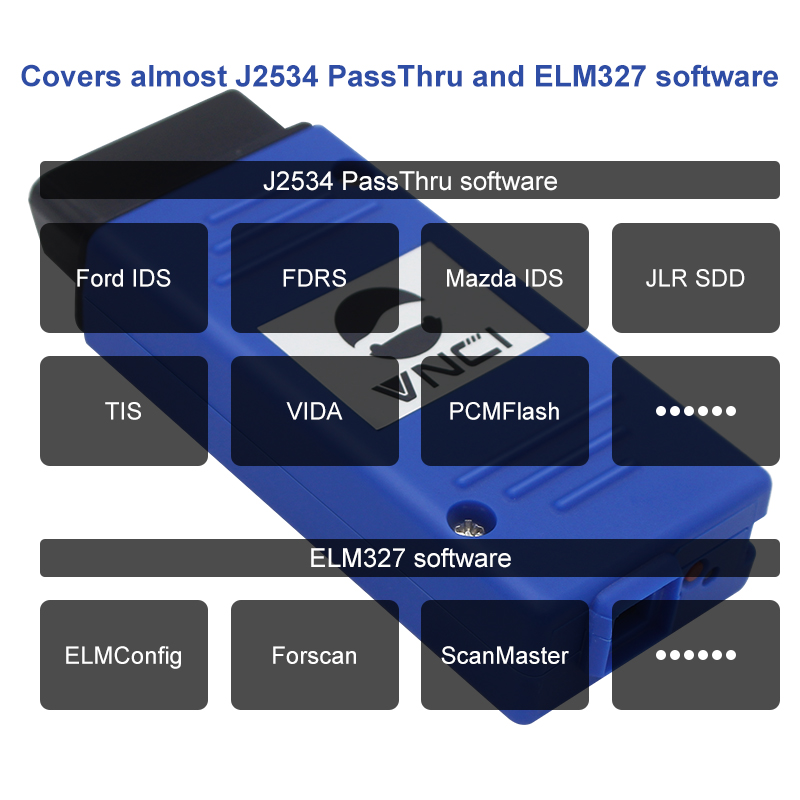

Dual Protocol Support: It can automatically switch between J2534 PassThru and ELM327 modes, allowing it to work with professional-grade software (like IDS, JLR SDD, or Techstream) and enthusiast tools (like Forscan or ELMConfig).
No License Required for IDS: Users can often run IDS software through a “loader” without needing a separate paid license for offline functions.
High-Voltage Programming: It supports the FEPS (Flash EEPROM Programming Signal) voltage range of 5V–20V required for programming certain Ford modules.
Functional Highlights
Broad Vehicle Support: Covers Ford and Mazda models from 1996 through 2022+.
Advanced Features: Supports online module programming, PATS/RKE (key) learning, and power balance performance tests.
Legacy Support: Unlike some newer interfaces, it still supports the J1850 PWM protocol used in older Fords (pre-2006).
Speed: Offers high-speed communication, typically capable of programming most modules in roughly 5 minutes.
Hardware & Updates

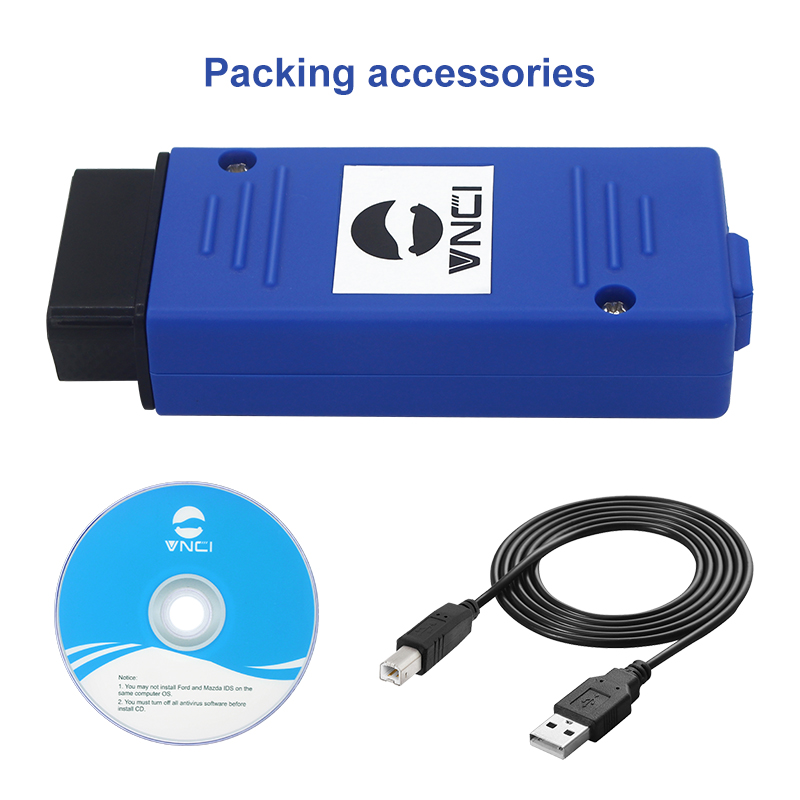

Connectivity: Connects via a standard USB 2.0 cable.
Updates: The device firmware can be updated online for free to maintain compatibility with the latest vehicle models and software versions.
Would you like to know the specific system requirements needed to install the IDS v130+ software on your computer?
In Dubai, the specific dealer you are looking for is Jabedul Dewan Trading Co. LLC, an authorized distributor of various automotive diagnostic scanners and programming tools. They are a well-regarded seller for VNCI products and other professional OBD2 interfaces in the
Dealer Details: Jabedul Dewan Trading Co. LLC
Location: Shop F98, 1st Floor, Nesto Hypermarket Building, Al Fahidi Souq, 33C Street, Bur Dubai.
Contact Number: +971 50 997 0171 (Mobile/WhatsApp).
Operating Hours: Daily, 9:00 AM – 11:00 PM (Closing at 10:00 PM according to some sources).
Website: auto-scan-tool.com.
Online Presence: They actively sell through their merchant storefronts on Amazon.ae and Noon.com.
Product Highlights: VNCI MF J2534 for Ford/Mazda
The VNCI MF J2534 is a specialized OEM-level diagnostic interface designed for Ford and Mazda vehicles.
Software Support: Fully compatible with Ford IDS v130+ and Mazda IDS v130+.
Modes: Supports dual-mode operation, automatically switching between J2534 PassThru and ELM327 protocols.
Key Functions:
Diagnostic functions for models from 1996 to 2022+.
Support for FDRS and MDARS online software (with appropriate licenses).
ECU/TCU programming and module flashing capabilities.
Online PATS/RKE learning and J1850 PWM module programming.
Service Offerings: Jabedul Dewan Trading often provides free online installation services for software like IDS and Techstream when you purchase the hardware from them.
Would you like to know the current price for this tool or need help with the software installation requirements?
