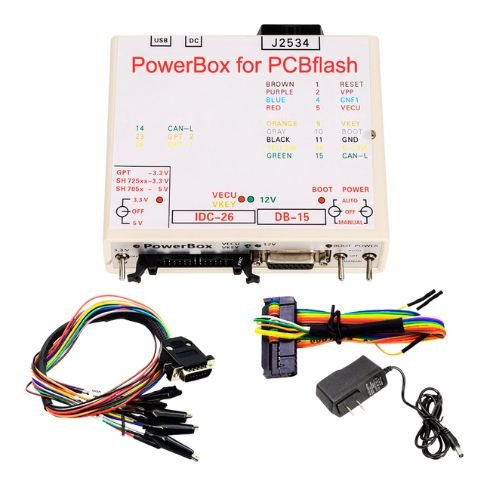

The ECU Power Box FLASH is a specialized hardware interface designed to facilitate the connection between vehicle Engine Control Units (ECUs) and various programming tools. It acts as a protocol transfer hub and power supply, particularly for “bench” or “boot” mode operations where the ECU is removed from the vehicle for tuning or repair.
Core Functionality & Features
Hardware Interface Only: This device is a protocol transfer box; it does not include any tuning software or programs.
Power Management: It features three distinct operating modes for controlled power delivery to the ECU:
OFF: Disconnects all power and control signals.
MANUAL: Manually supplies power to VECU and VKEY terminals.
AUTO: Allows the programming software to control power automatically via specific signals (e.g., L-Line).
Safety Features: Includes built-in current-limiting resistors for signal lines (RESET, BOOT, CNF1) to prevent damage to sensitive ECU components during flashing.
Power Compatibility: Equipped with a US Plug and supports a global voltage range of 100-240V.
Compatibility
The Power Box is specifically designed to work with J2534-compliant tools and common bootloaders:
Supported Tools: Seamlessly integrates with Tactrix Openport 2.0, KTAG, SM2 PRO, and PCMflash dongles.
Modes & Protocols: Supports JTAG, BOOT-OEM12 (12-pin OBD-II), and L-LINE (15-pin OBD-II) protocols.
Adapters Included: Typically comes with a full set of adapters including DB-15, IDC-26, and DC power cables for diverse ECU types.
Do you already have a J2534 interface like the Openport 2.0 to use with this power box, or are you looking for a complete kit?
The ECU Power Box for pcmFLASH is a hardware interface designed to facilitate stable communication between a computer and an engine control unit (ECU) for reading and writing data. It is primarily used with J2534 passthrough devices like Openport 2.0 to perform bench and boot-mode programming.
Buying from Jabedul Dewan Trading LLC (UAE)
You can purchase this and related ECU programming tools from Jabedul Dewan Trading L.L.C, a merchant based in the UAE known for providing technical support and installation services.
Platform Options:
Noon: You can find their Openport 2.0 Full Chip J2534 Tool listed for approximately AED 250, which includes a free online installation service.
Amazon UAE: Their Amazon Storefront features various ECU programmers, including the SM2 Pro J2534 VCI for approximately AED 250, which also includes technical support.
Technical Support: The merchant offers free software download links and remote installation support, which is critical since these tools often require complex driver setups.
Key Features of the ECU Power Box
If you are looking for the specific Power Box hardware, it typically includes the following:
JTAG Compatibility: Supports deep-level PCM flashing and JTAG connections for advanced tuning.
Multi-Mode Switches: Includes three switches (POWER, BOOT, GPT) for manual or automatic power management during the flash process.
Built-in Protection: Features current-limiting resistors (e.g., RESET 510Ω, BOOT 510Ω, CNF1 220Ω) to prevent damaging delicate ECU boards.
Power Supply: Compatible with 100-240V AC and typically uses a US Plug for the DC power adapter.
Essential Notes for Buyers
Hardware Only: Most Power Box units are hardware-only protocol transfer boxes and do not include the pcmFLASH software itself.
Required Accessories: To function, this box must be paired with a J2534 interface (like Openport 2.0) and a PCMFlash USB dongle.
Do you need help identifying the specific cable pinout for a particular ECU model you’re planning to flash?
