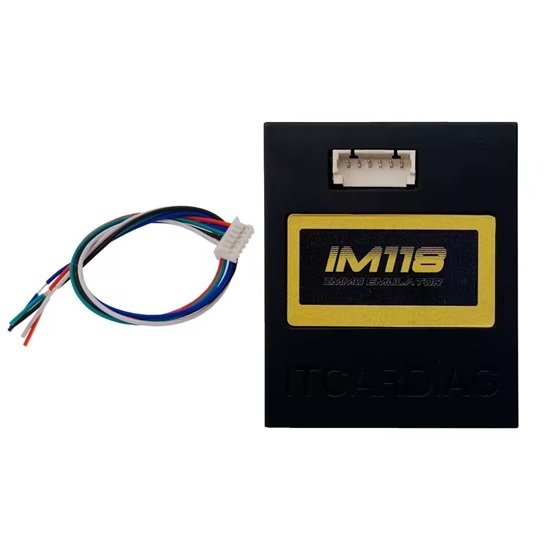

IM118 is a universal immobilizer (IMMO) off emulator designed to bypass vehicle security systems when the original key or immobilizer module is faulty. It is an updated version of older models like the V96 and OF80, supporting both K-LINE and CANBUS communication protocols.
Key Capabilities
IMMO OFF: Permanently deactivates the immobilizer for various engine control units (ECUs), allowing the engine to start without a matched key.
ESL/ELV Emulation: Replaces damaged Electronic Steering Lock signals, common in Mercedes-Benz and Renault vehicles.
TCU Component Protection: Removes protection from Transmission Control Units in VAG Group cars (Volkswagen, Audi, etc.), which is essential when swapping gearboxes.
ECU PIN Code Reading: Extracts necessary PIN codes for key coding or matching new ECUs to a vehicle.
Vehicle & ECU Compatibility
The IM118 is a “universal” tool supporting a broad range of brands and specific modules, including:
Major Brands: Audi, BMW, Chrysler, Fiat, Mercedes-Benz, Nissan, Peugeot, Renault, Toyota, and Volkswagen.
Specific ECU Types:
Bosch: EDC15, EDC16, EDC17 (e.g., EDC17CP37, EDC17CP44).
Continental: SIMOS 18.1, SID807EVO, and VD56.1.
Hitachi: MEC37-650 (Nissan).
Usage Notes
Hardware Setup: For CAN-BUS vehicles, it is often required to solder a 120Ohm resistance onto the PCB for proper communication.
Mobile Use: The device is typically compact and can be powered directly via the OBD2 port, making it suitable for roadside repairs.
Manuals: Detailed step-by-step instructions for specific car brands can be found in the IM118 User Manual.
Are you looking for the specific wiring pinouts for a particular vehicle or ECU model
IM118 Emulator Update Function
Note:
This device is strongly recommended for professionals to purchase.
If you encounter any issues, please contact us first to assist you with the problem.
Thank you very much!
New Program: for BMW 5
For BMW F-Series and E-Series Cars
EGS Swap (8HP Automatic Transmission)
Only Swap
EGS + Only Swap
Note: Except for BMW X3 (E83)
New Program: for BMW 4
For BMW E-Series (CAS-BUS) Cars
Replacing a damaged E-C-U
For Nissan – for Bosch EDC16CP33 IMMO OFF
Continental EMS3160, Read Values for ISK
Continental EMS3160 (for Renault Group)
ITCARDIAG IM118 specifically designed for PSA Group vehicles, which allows you to use Julie Emulator to:
Read E-C-U PIN code – for coding the keys or matching to the car.
The Emulator will automatically determine the PIN CODE or replace immobiliser signal.
New Program: for Mercedes W176, W204, C207, W212, W246
Solve the damaged to the Electronic Steering Lock (ESL/ELV) module.
Continental SID807EVO, IMMO OFF.
New Program: for Toyota
Make IMMO OFF with IM118 on a Toyota equipped with Denso Diesel ECU.
New Program: for VAG Group
It allows to remove the Component Protection from the T-C-U for VAG Group cars.
Resolve the issue of transmission errors and transmission not shifting gears displayed on the dashboard.
New Program: for Toyota Auris 2006-2013
Use ITCARDIAG IM118 Emulator to make IMMO OFF for Toyota Auris equipped with Bosch EDC17CP37 ECU.
New Program: for Nissan
Use IM118 Emulator to make IMMO OFF for Nissan Note equipped with Hitachi MEC37-650.
For more testing and functionality, please contact the seller before purchasing.
