The OF80 Universal Car Emulator (often labeled as the SQU OF80) is a hardware diagnostic tool designed to bypass or simulate specific electronic signals in vehicles. It is primarily used by professional mechanics to address issues with immobilizers, seat sensors, and instrument clusters.
Key Capabilities
Immobilizer (IMMO) Programs: It can remove or replace original immobilizer signals, allowing a car to start even if the original IMMO system or keys are damaged.
Seat Occupancy Sensors: Simplifies troubleshooting for faulty airbag control signals by simulating a functional passenger seat occupancy sensor.
Tachometer Testing: Allows technicians to power on and test instrument clusters “on the table” (outside the vehicle) to diagnose faulty segments or lighting.
ESL/ELV Simulation: It can simulate the signal of a broken Electronic Steering Lock, providing a cost-effective fix for vehicles that won’t start due to steering lock failure.
Technical Features
Programs: typically includes over 68 programs (sometimes up to 80 depending on the version) dedicated to hundreds of ECU types and car models.
Configuration: Program selection is usually handled by soldering jumpers (labeled J1 to J7) on the device’s circuit board.
Diagnostic LED:
Slow Flash (every second): Diagnostic mode (no jumpers soldered).
Rapid Flash (0.1 sec): Adjusting to the ECU.
Solid Light + Occasional Blink: Successfully adjusted and operational.

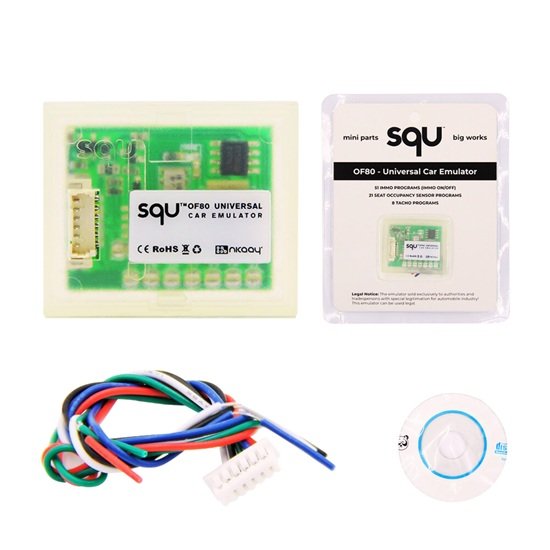

SQU-OF80 Universal Car Emulator Multi-Cars MINI Parts Big Works 42 IMMO Programs 18 Seat OCCUPANCY SENSOR 8 TACHO PROGRAMS
Description:
The SQU OF80 universal car emulator supports IMMO/Seat occupancy sensor/Tacho Programs.
The SQU OF68 emulator includes 68 programs dedicated to hundreds of car models and types of ECU.
the SQU OF68 Universal car emulator allows you to:
remove the original immobiliser signal
replace the original immobiliser signal
replace the ESL, enabling the car to start
check the EZS on the table
check the correctness of the airbag system
start the tacho on the table
You can choose from:
immo programs
seat occupancy sensor programs
tacho programs
The vast majority of programs can be used multiple times.
Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.
immo programs
1. For VW automatic immo OFF (single use)
2.ForVW automatic immo ON (single use)
3. For VW without CAN
4. For VW – Hitachi
5. For VW – Valve Code
6. For VW EDC15 immo OFF (single use)
7. For VW EDC15 immo ON (single use)
8. For VW EDC16 K-LINE immo OFF (single use)
9. For VW EDC16 K-LINE immo ON (single use)
10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)
11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)
12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)
13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)
14. For VW ME7 immo OFF (single use)
15. For VW ME7 immo ON (single use)
16. For BMW EWS II and EWS III 3.2 systems
17. For Chrysler
18. For Citroen, For Peugeot with CAN
19. For Daewoo 1
20. For Daewoo 2
21. For Fiat without CAN
22. For Fiat with CAN
23. For FSO Polonez
24. For Honda
25. For Kia Sportage 2.0TD
26. For Mercedes CR without CAN Infrared
27. For Mercedes CR1 with CAN WSP
28. For Mercedes CR1 with CAN EZS
29. For Mercedes CR1 with CAN infrared
30. For Mercedes CR2 with CAN WSP
31. For Mercedes ESL – steering wheel column lock emulator
32. For Mercedes ESL2 – steering wheel column lock emulator
33. For Nissan NATS 4 and 5 32.
34. For Opel immo with HC05
35. For Renault with CAN
36. For Renault without CAN
37. For Renault without CAN old ECUs
38. For Suzuki with X24C01 memory
39. For Suzuki with OKI memory
40. For Suzuki 93C56 memory
41. TMS 374 – For Citroen, for Peugeot, for Renault
42. For Yamaha
For Seat accupancy sensor programs
1: for BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat
2:for Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat
3:for Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat
4:for Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat
5:for Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat
6:for Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat
7:for Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat
8:for BMW from 1997 to 2007 , Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat
9:for BMW from 1997 to 2007 . Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat
10:for Mini Cooper from 2002 to 2005 without installed child seat
11:for Mini Cooper from 2002 to 2005 with installed child seat
12:for Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat
13:for Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat
* Tacho Programs
1. for Audi Q7 and A6
2. for Citroen C4 Picasso
3. EMF Display
4. for Renault Kangoo 3 Display
5. for Renault Scenc II, Espace IV Tacho
6. for Renault Scenic Full
7. for Renault Scenic III + Navi
8. for VW Passat B6
Package List:
1 x SQU OF80
