OBD2 16 Pin Female to Open Wire Pigtail Cable – J1962 Diagnostic ECU Bench Wiring Harness

OBD2 16 Pin J1962 Female Open Connector Pigtail Cable – 30CM DIY Diagnostic Wiring Harness

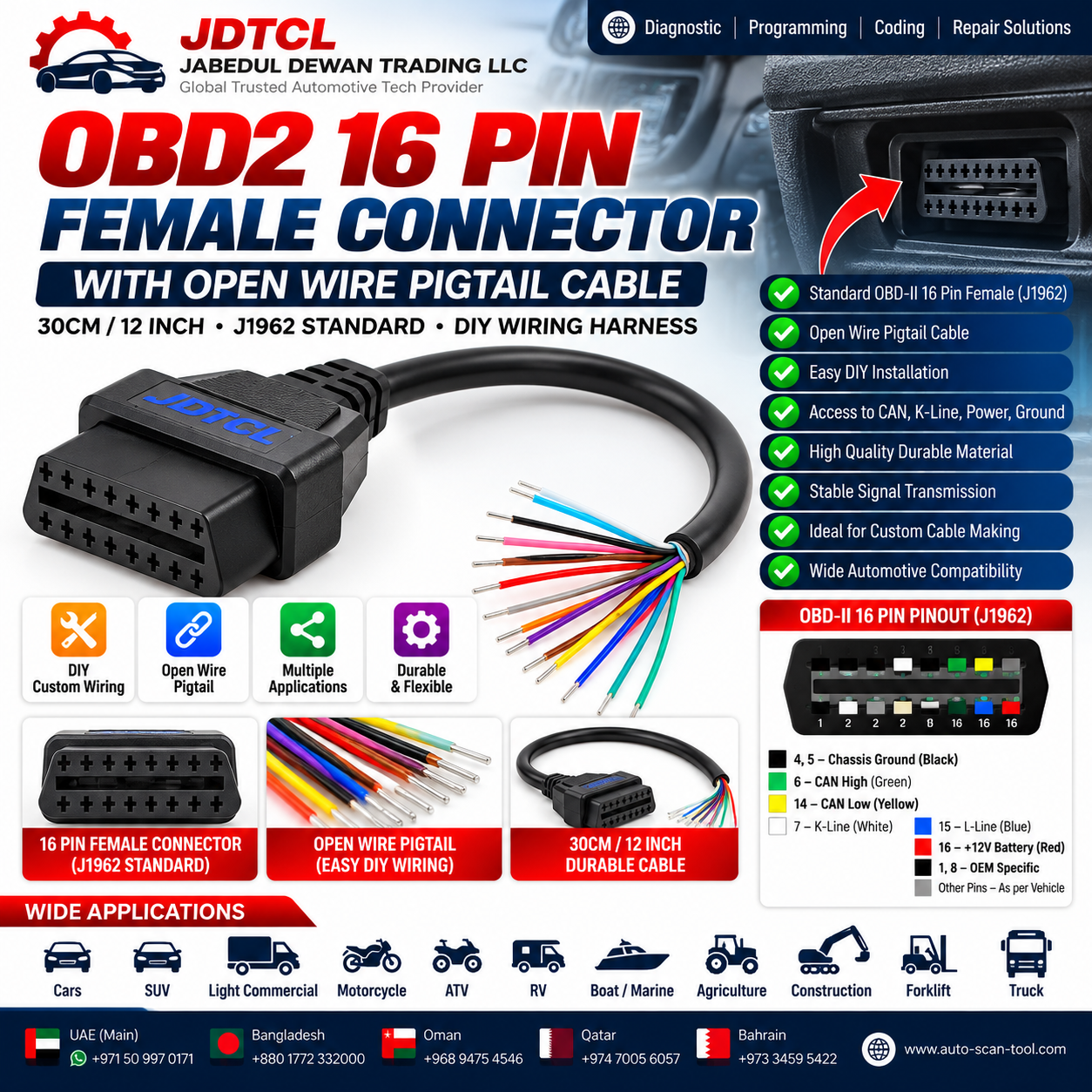

The OBD2 16 Pin Female Open Connector Pigtail Cable is a practical solution for automotive technicians, diagnostic specialists, ECU programmers and electronics professionals who need direct access to an OBD-II connector for custom wiring and testing applications.

The cable features a standard-style 16-pin J1962 OBD-II female connector on one end and individual open wires on the other, making it suitable for building custom diagnostic cables, test harnesses, breakout connections and workshop wiring projects.

Product Features

• 16-pin OBD-II / J1962 female connector
• Open-wire pigtail design
• Approx. 30 cm / 12 inch / 1 ft cable length
• Individual conductors available for custom connections
• Suitable for DIY diagnostic and automotive electronics projects
• Useful for building custom OBD adapters and test harnesses
• Compact design for workshop and bench applications
• No special connector required on the open-wire side
• Suitable for professional technicians and automotive electronics projects

Support & Application List

This cable can be used as a wiring component for:

• OBD-II diagnostic connector projects
• Custom diagnostic cable construction
• OBD2 breakout harnesses
• ECU bench diagnostic harnesses
• TCU bench wiring projects
• J2534 interface wiring projects
• Diagnostic scanner adapter projects
• CAN Bus testing and development
• CAN High / CAN Low access where applicable
• K-Line access where applicable
• Power and ground connections
• Automotive signal testing
• ECU communication testing
• Vehicle electrical troubleshooting
• Custom OBD extension or conversion projects
• Prototype diagnostic harness construction
• Workshop test equipment
• Automotive electronics development
• DIY vehicle diagnostic projects

Vehicle Applications

The source listing identifies applications for:

• Passenger vehicles
• Heavy-duty / commercial vehicles
• ATVs

Actual compatibility depends on the vehicle’s connector, protocol and required pin configuration.

Common J1962 OBD-II Pin Functions

Common standardized OBD-II connections include:

• Pin 4 – Chassis Ground
• Pin 5 – Signal Ground
• Pin 6 – CAN High
• Pin 7 – K-Line on applicable vehicles
• Pin 14 – CAN Low
• Pin 16 – Battery Positive

Other pins can have manufacturer-specific functions and should always be verified against the vehicle or equipment wiring diagram.

Specifications

Connector: 16-Pin OBD-II Female
Standard/Form Factor: J1962 OBD-II
Cable Type: Female Connector to Open Wire Pigtail
Length: Approx. 30 cm / 12 in / 1 ft
Manufacturer Part Number: IKG-AU40164
Application: Diagnostic, testing and custom automotive wiring

Important Wiring Notice

This is a passive wiring cable and does not itself provide diagnostic, coding or ECU programming functions.

Do not determine pin functions from wire colors alone. Wire colors are not a universal OBD-II pinout standard. Always verify continuity, pin assignment, voltage and polarity before connecting the cable to a vehicle, ECU, diagnostic interface or programming device.

Incorrect wiring can damage electronic control modules, diagnostic equipment or vehicle electrical systems.

Package Includes

1 × OBD2 16-Pin Female Open Connector Pigtail Cable
