OBDSTAR DC706 – ECU TCU BCM Programmer & Cloning Tool

OBDSTAR DC706 – Professional ECU, TCU & Body Module Programmer

OBDSTAR DC706 is a standalone automotive ECU programming and cloning platform for professional workshops. Depending on the controller, it supports OBD, BENCH, BOOT, BDM and JTAG workflows for ECM/ECU, TCM and selected body/other control modules.

Main Functions

• ECM/ECU read, write, backup and cloning on supported controllers
• TCM read, write, backup and cloning
• Selected BCM, BSI, CEM, dashboard, door, radio and other module read/write
• EEPROM, DFlash, PFlash, internal/external Flash and MAP read/write depending on controller
• Checksum handling on supported protocols
• Supported replacement-module virgin/reset and data-transfer workflows
• VIN read/write on supported modules
• OBD, BENCH, BOOT, BDM and JTAG connection modes depending on ECU
• ECU search by vehicle, ECU manufacturer, part number and MCU family
• Wiring diagrams and connection guidance for supported applications

ECM / ECU Support

Coverage spans selected Bosch, Continental/Siemens, Delphi, Denso, Kefico, Magneti Marelli/Marelli, Visteon, AC Delco and other engine controllers used by Audi, Volkswagen, SEAT, Skoda, Mercedes-Benz, BMW, MINI, Ford, Hyundai, Kia, Jaguar, Land Rover, Honda, Mazda, Volvo, Fiat, Alfa Romeo, Citroen, Peugeot/DS, Nissan, Mitsubishi, Subaru, Suzuki, GM and other supported makes.

Examples documented in OBDSTAR update coverage include Bosch MED17/ME17/EDC16 families, Continental SIMOS and SIM2K families, Siemens EMS/SID/SIM families, Marelli IAW families and selected newer Bosch MD1/MG1 applications. Exact read/write mode and memory areas vary by ECU hardware and software version.

TCM Support

Supported transmission families include selected VAG DQ250, DQ380, DQ381 and DQ500 controllers; ZF 8HP applications across multiple vehicle brands; Mercedes-Benz/Nissan VGS NAG3 / 9G-Tronic; BMW/MINI/Renault 7DCT300; Hyundai/Kia SIM2K-250 and SIM2K-251; Siemens/Continental EGS52; PSA/Renault TA2000 and AL4; GM T87; and other supported TCMs.

Depending on TCM, available operations can include internal/external EEPROM and Flash read/write, MAP read/write, backup, data transfer and cloning.

Body / Other Module Support

Selected BODY/OTHER coverage includes Ford BCM/DDM/PDM, Volvo CEM/DDM/PDM/ICM/ETM, selected Volvo instrument clusters, selected SRS/Airbag modules, Fiat BSI, Ford and VAG-family radio modules and other supported electronic control units. Availability varies by processor and connection mode.

Examples of Supported BODY Modules

• Ford BCM – Delphi R5F64524 / R5F64525 and Lear MC9S12XEP768 variants
• Ford DDM/PDM – selected NEC 70F series variants
• Volvo CEM – Delphi M30882F, M30855F, R5F64524 and R5F64525 variants
• Volvo dashboard – selected Yazaki MCU variants
• Volvo ICM/ETM/DDM/PDM – selected supported variants
• Fiat BSI – selected Magneti Marelli variants
• Ford / Skoda / Volkswagen radio – selected Visteon variants

Selected ECM Examples from OBDSTAR Coverage

• Audi / SEAT / Skoda / Volkswagen – Bosch MED9/MED17/ME17/EDC17 and Continental SIMOS families, depending on variant
• Mercedes-Benz – Bosch EDC16 and selected Continental/Siemens applications
• BMW / MINI – selected Siemens EMS and Bosch applications
• Ford – selected Siemens SID and newer Bosch MD1/MG1 applications
• Hyundai / Kia – Bosch ME/MEG/MED17, Kefico and Continental SIM2K families
• Jaguar / Land Rover – selected Bosch MED17 and Siemens applications
• Fiat / Alfa Romeo – selected Bosch, Siemens/Continental and Marelli applications
• Honda – selected Bosch ME-series applications
• Mazda – selected Siemens SIM-series applications
• Volvo – selected Siemens SID and Bosch applications

Motorcycle ECU Support

DC706 software coverage also includes selected motorcycle/ATV ECUs. OBDSTAR update documentation includes Kawasaki and Suzuki Denso applications plus selected Siemens/Continental M3C applications used across brands such as Arctic Cat, Beta, Can-Am, Ducati, GasGas, Husqvarna, KTM, Kymco, Sherco and TGB. Coverage changes with software updates and must be confirmed by ECU identification.

Programming Modes

• OBD: supported operations through the diagnostic connector
• BENCH: direct ECU/TCU connection without opening the module where supported
• BOOT: processor-level access on supported controllers
• BDM / JTAG: supported legacy or processor-specific programming workflows

Standard Package & Optional Adapters

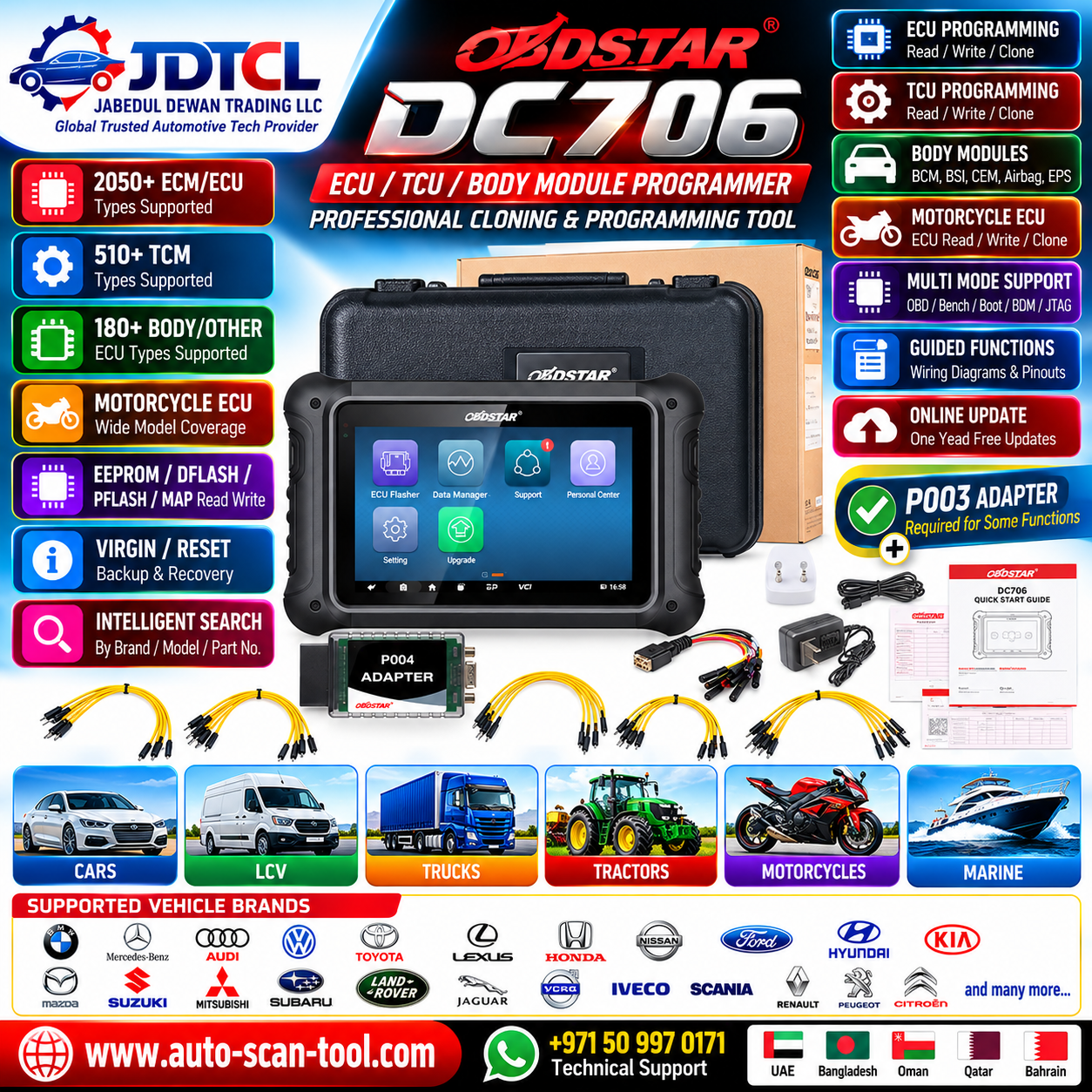

Typical DC706 packages include the DC706 tablet, OBD cable, P004 adapter, ECU bench harness, power supply and carrying case. Package contents may vary by supplier or production batch.

P003 / P003 Plus: required for some supported ECU applications and available separately. Our website also carries DC706-related accessories including the MP001 set and DB15-to-OBD16 adapter.

Compatibility Notice

OBDSTAR continually expands DC706 coverage. A vehicle brand appearing in this list does not mean every ECU or model is supported. Always confirm the exact ECU/TCU manufacturer, part number, MCU, software version and required adapter in the latest OBDSTAR coverage/software before connecting or purchasing for a specific job.

Professional Use Notice

Use security-sensitive functions only on vehicles you own or are authorized to service. Instrument-cluster operations should be limited to legitimate replacement/synchronization and restoration of documented true mileage. SRS/Airbag operations should be used only for legitimate post-repair restoration after the underlying restraint-system fault or damaged component has been repaired or replaced.
