VAG Odis IMMO Calculator USB Dongle

VAG IMMO Calculator Software for Working With VAG Immobilizers of the 4th, 5th and 6th Generation

VAG IMMO Calculator package are designed for professional work with VAG group immobilizers. The software provides VAG PIN code calculation, IMMO data extraction, key decoding, and other essential functions for diagnostic specialists and VAG key programming.

It supports EEPROM reading, block cloning, and data export from different modules, making it one of the most versatile solutions on the market.

Main IMMO Calculator Modules and Features

The basic set of VAG IMMO Calculator includes key modules for working with control units of various VAG generations. Each module performs its own function

VAG: MEDC17 Immo

• Supported ECU types: MED17/EDC17 with immobilizer versions 4 and 5.
• Full access to all immobilizer-related EEPROM data. For ECUs equipped with on-chip SHE/HSM cryptomodules, modification of the CS value and complete transfer of immobilizer data is not possible.
• Options include immobilizer deactivation and status adjustment for Immo 4 units, as well as status modification for Immo 5 units.
• Import and export of data, including cross-unit transfers (e.g., Passat CCM comfort module).
• ECU cloning for Immo 4 and Immo 5 systems.
• Import of Immo 4 data from VVDI, SMOK, CARPROG files, and Immo 5 data from VVDI.

VAG: PCR2.1 Immo

• Editing of all immobilizer data stored in EEPROM.
• Data import/export, including compatibility with other modules (e.g., Passat CCM).
• ECU cloning functionality.
• Support for importing immobilizer data from VVDI, SMOK, CARPROG.

VAG: CCM Immo

• Full editing of immobilizer parameters.
• Ability to change the module status.
• Data import/export, including compatibility with units such as MED17.

VAG: BCM2 A4, A5, Q5

• Support for BCM2 units with both internal and external EEPROM.
• Editing of all EEPROM-stored immobilizer data.
• Configuration editing for installed components.
• Export of immobilizer data.
• Correction of ELV error 02811.

VAG: MED9 No Crypt

• Supported ECUs: MED 9.1, MED 9.5.10.
• Editing of all immobilizer-related EEPROM data.
• Import/export of data, including interoperability with modules like Passat CCM.
• ECU cloning supported.
• Importing immobilizer data from VVDI, SMOK, CARPROG.

VAG: EDC16 Immo

• Full access to all immobilizer data stored in EEPROM.
• Import/export of data, including exchange with other control units (e.g., Passat CCM).
• ECU cloning capability.
• Mileage correction.
• Support for data import from VVDI, SMOK, CARPROG.

VAG: PPD 1.x Immo

• Editing of complete immobilizer data contained in EEPROM.
• Export/import capabilities, including cross-module transfers (e.g., Passat CCM).
• ECU cloning.
• Support for importing data from VVDI, SMOK, CARPROG.

VAG: AUDI ELV Immo

• Editing of all immobilizer-related parameters.
• Import/export of data, including compatibility with Audi BCM2 modules.
• Module cloning support.

VAG: MM 7GV Immo

• Editing of all immobilizer data stored in EEPROM.
• Data export/import, including interactions with modules like Passat CCM.
• ECU cloning available.
• Compatible with data imports from VVDI, SMOK, CARPROG.

VAG: MM 9GV Immo

• Full editing of all EEPROM-based immobilizer data.
• Import/export of data, including transfers from other units (e.g., Passat CCM).
• ECU cloning supported.
• Import of Immo 4 data from VVDI, SMOK, CARPROG, and Immo 5 data from VVDI.

VAG: AUDI A6/Q7 EZS Immo

• Editing of all immobilizer-related EEPROM data.
• Export of immobilizer data.

VAG: EZS Crafter Immo

• Editing of all EEPROM-stored immobilizer parameters.
• Export of immobilizer data.

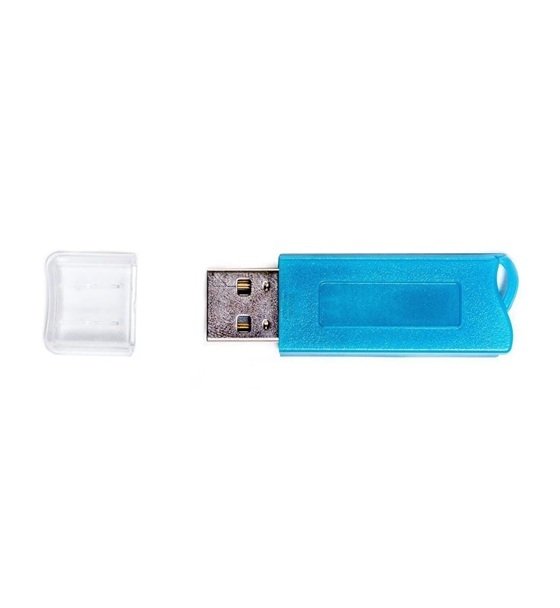

The package includes a security USB dongle. Additional modules and extensions can be activated on this dongle, allowing you to expand the software’s functionality and customize it to your specific needs.
