Universal Car Emulator Pro SQU OF110 Highlights:
– Replicate Immobilizer Signal: Replacing the immobilizer signal is the main feature of OF110 Emulator Pro. It solve problems related to damaged immobilizer or ECU, lost keys, engine replacement. Thousands of world famous ECUs are supported by this emulator.
Simulate ESL / ELV: If your steering lock is broken you can use OF110 Emulator Pro to fix it easily, simply and cheaply. Damaged electronic steering lock (ESL/ELV) is a common fault which can cost hundreds of euros to fix. Install OF110 Emulator Pro in substitution of the damaged ESL to simulate its signal and save a lot of time and money.
Passenger seat sensor: Faulty seat occupancy sensor (AirBag control) is one of the common problem that can be easily diagnosed with OF110 Emulator Pro. Connect the emulator to the passenger seat occupancy sensor and find out if the error AirBag symbol disappears.
Tacho testing: simulate the signal coming from the car, to determine if the instrument cluster is working properly before installing the OF110 Emulator Pro in the car.
Universal Car Emulator Pro Features:
The LED behavior
-no jumpers-diagnostic mode-it flashes every second
-adjusting to the ecu-flashing 0, 1 sec
-after adjusting it lights constantly and blinks every other second
Tachometer tester programs
You can use it to tum on the instrument cluster on the table in order to diagnose faults. After
connecting the emulator to instrument cluster, most of instrument cluster segments are displayed
making it easier to locate damaged areas.
This emulator is reusable, Tested on tacho
SQU OF110 Universal Car Emulator Pro Packing Lis

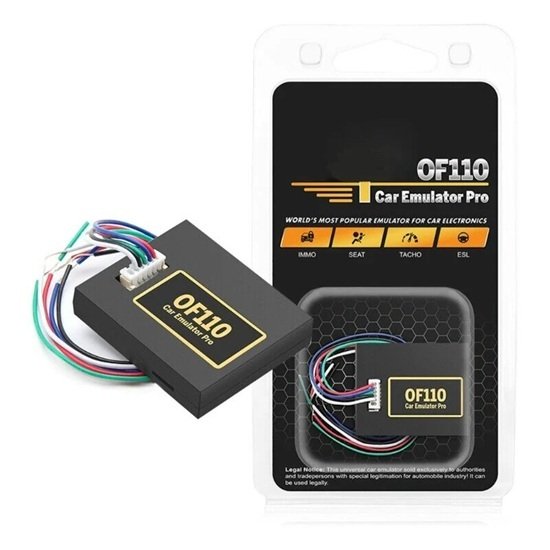

The SQU OF110 Emulator Pro is a universal automotive tool used to simulate various vehicle signals, primarily to bypass or diagnose faulty security and safety systems. It is commonly used by professional mechanics and DIYers to resolve issues like damaged immobilizers, broken steering locks, and faulty seat occupancy sensors.
Key Functions
Immobilizer (IMMO) Bypass: Replicates the immobilizer signal to allow the engine to start if the original system is damaged, keys are lost, or the ECU has been replaced.
ESL / ELV Simulation: Simulates the Electronic Steering Lock signal. This is a cost-effective alternative to replacing expensive, broken steering lock hardware.
Seat Occupancy Sensor: Mimics the signal of a passenger seat sensor to diagnose “Airbag” warning lights. If the light disappears when the emulator is connected, the seat sensor is confirmed faulty.
Tacho Testing: Simulates car signals to test if an instrument cluster (tachometer) is functioning correctly before it is reinstalled in the vehicle.
Technical Details & Compatibility
Broad Support: It works with both K-Line and CAN-BUS systems and supports thousands of ECUs across major brands like VAG (VW/Audi), Mercedes-Benz, BMW, Fiat, Renault, and Suzuki.
User Interface: The device features an LED behavior system for diagnostics. A light that blinks every second indicates diagnostic mode, while a constant light (with a blink every other second) signifies it has successfully adjusted to the ECU.
Purchasing: It is widely available through specialized automotive retailers like VJabedul Dewan Trading llc or on global marketplaces
Are you looking for a manual for a specific car model, or do you need help identifying which program to use for a particular ECU?
