The TopDiag P100 is a multi-functional automotive circuit tester designed for diagnosing 12V and 24V electrical systems in vehicles ranging from cars and motorcycles to trucks and boats. It functions as a digital voltmeter, ohmmeter, and component activator, often cited as a more affordable alternative to the Power Probe PP3.
Key Features & Capabilities
Broad Compatibility: Operates on a wide input voltage range from 9V to 70V.
Measurement Modes: Includes DC voltage (0-65V), AC voltage (showing min/max, frequency, and duty cycle), and resistance (0-200 KΩ).
Component Activation: Allows you to power up components (like fans, fuel injectors, or window motors) directly through the probe tip to test their functionality without jumper wires.
Fault Detection: Quickly identifies positive, negative, and open circuits at a glance with red/green LED indicators.
Extended Reach: Comes with a 20ft cable and an additional 20ft extension, totaling 40ft (approx. 10 meters), making it ideal for testing trailer lights and long-wheelbase trucks.
Safety Protections: Built-in circuit breaker (typically 8A-10A) that trips upon overload, protecting the tool and the vehicle’s ECU.
Technical Specifications
Feature Specification
Display TFT Color Screen (160 x 128 dpi)
Operating Temp 0°C to 60°C (32°F to 140°F)
DC Voltage Range 0V to 65V (+1 digit)
Resistance Range 0 to 200 KΩ
Frequency Response 0Hz to 10KHz
Languages Support for English, German, French, Spanish, Italian, Portuguese, and Russian

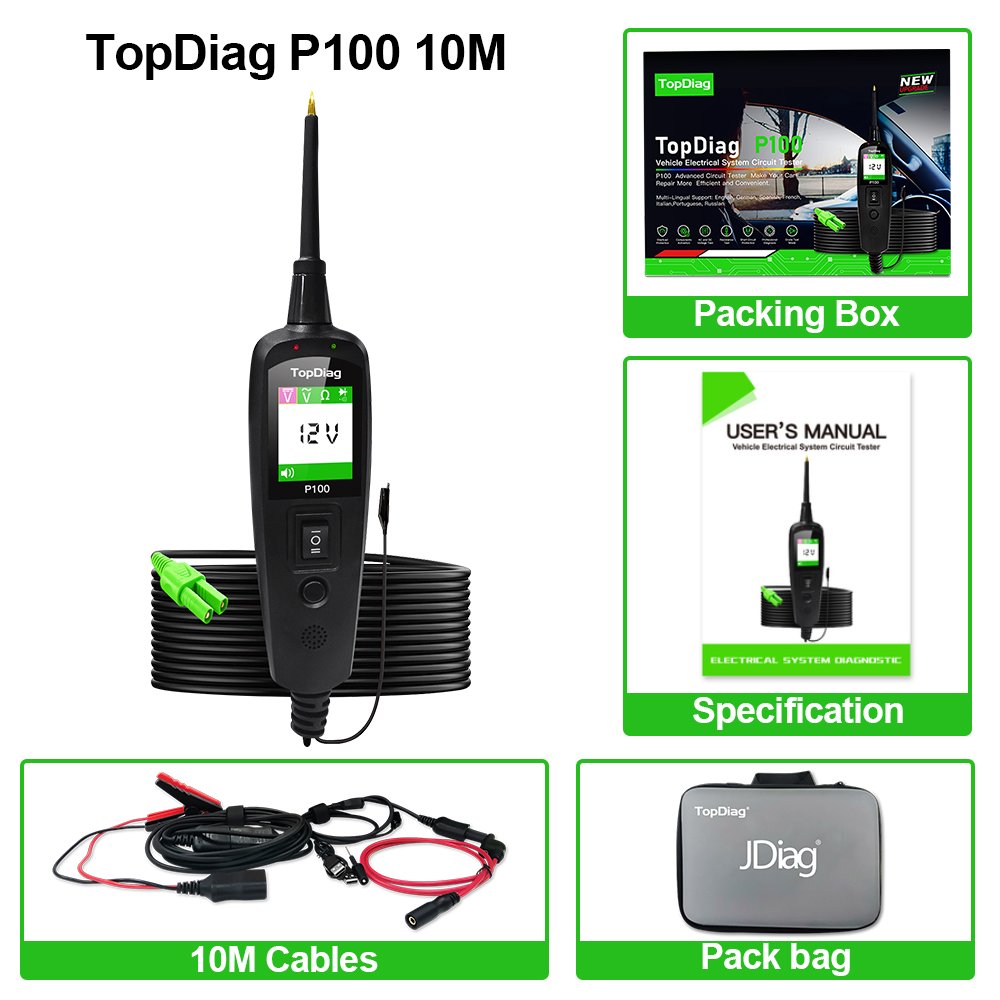

Included in the Kit
TopDiag P100 Main Unit with probe tip.
10M (40ft) Extension Cable.
Battery Hookup Clips and Cigarette Lighter Adapter.
Portable Carrying Bag/Case.
These user manuals explain how to set up and operate the TopDiag P100 automotive circuit tester:
TopDiag P100 is a powerful electronic tester specialized in voltage and polarity testing, resistance continuity testing, AC circuit signal testing, and vehicle circuit testing. It has the following features and selling points 1.Original Automotive Electrical Circuit System Tester for Cars and Trucks（0V – 70V）. Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly. 2.Resistance Continuity Testing- LCD Screen display the value of resistance. 3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem. 4.Components Activation in your hand, in the vehicle or W/Ground. 5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks. 6.Checking for Bad Ground Contacts and Locating Short Circuits Specifications: 1. Display: TFT color display (160 x 128 dpi) 2. Operating Temperature: 0 to 60°C (32 to 140 F°) 3. Storage Temperature: -40 to 70°C (-40 to 185 F°) 4. External Power: 12.0 or 24.0 V power provided via vehicle battery 5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm Test Tool Specifications: DC voltage range : 0-65V +1 digit Resistance range : 0-200 K ohm Frequency response of tone pass through 0Hz to 10K hz. Circuit Breaker Rating current: 1-10 Amp Packing size : 24x 18 x 5 CM Weight : 0.42 KG.
In the United Arab Emirates, you can purchase the TopDiag P100 Automotive Circuit Tester through Jabedul Dewan Trading L.L.C. via major online marketplaces or at their physical location in Dubai.
Where to Buy Online
Noon: You can find the JDiag/TopDiag P100 Automotive Circuit Tester listed directly by Jabedul Dewan Trading on Noon.com.
Amazon UAE: The seller Jabedul Dewan Trading L.L.C. maintains a storefront on Amazon.ae, where they often stock various TopDiag diagnostic tools.
Physical Store Location
Jabedul Dewan Trading Company is located in Dubai:
Address: Al Fahidi Souk 2, 33C Street, 1st Floor, Office F98, Al Souq Al Kabeer, Bur Dubai, Dubai.
Operating Hours: Typically open from 09:00 AM to 10:00 PM.
Contact: You can reach them via phone at +971 50 9970171.
Key Specifications of TopDiag P100
Voltage Support: 12V and 24V systems (suitable for cars, trucks, boats, and motorcycles).
Cable Length: Includes a 10-meter (approx. 33ft to 40ft) diagnostic cable for wide vehicle access.
Functions: AC/DC voltage testing, resistance/continuity, diode testing, component activation, and short circuit finding.
Protection: Features a self-resetting 8A thermal fuse for overload protection.
Would you like to compare the P100 with the upgraded TopDiag P200 model to see which fits your needs better?
