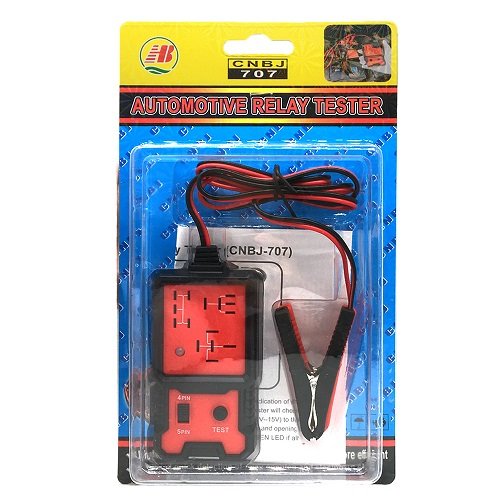

Automotive Relay Tester Relay Analyzer Auto 12V 4/5 Pin For Car Relay Checker

An automotive relay tester is a specialized diagnostic tool used to quickly verify the health of common 12V 4-pin and 5-pin car relays without needing a multimeter. By cycling the relay multiple times, it checks the internal coil and contact points to confirm they open and close properly.
YouTube

Key Features
Universal Compatibility: Designed to test most standard 12V automotive relays with 4-pin (SPST) or 5-pin (SPDT) configurations.
Automated Diagnostics: The tool typically opens and closes the relay 10 times in a row to check for consistency and contact timing.
Visual Indicators: Most models use a simple Green/Red LED system:
Green: The relay is functional.
Red: The relay is faulty or has an incompatible pin configuration.
Battery Powered: Usually connects directly to the vehicle’s 12V battery via alligator clips.
How to Use a Relay Tester
Connect to Power: Attach the red clip to the positive (+) terminal and the black clip to the negative (-) terminal of a 12V car battery. The tester’s LED should light up red to indicate it has power.
Select Pin Type: Check the relay pins and set the selector switch on the tester to either 4-pin or 5-pin.
Insert the Relay: Plug the relay into the corresponding socket on the tester.
Run the Test: Press the “TEST” button. The device will begin clicking as it cycles the relay.
Read Results: Wait for the final LED light. If it stays Green, the relay is good; if it stays Red, the relay should be replaced.
Top Rated Models & Options
12V Relay Tester: A popular, compact choice known for fast results and simple operation.
Performance Tool 3009: A portable option that can also be found in cordless versions powered by internal batteries.
Are you experiencing a specific electrical issue, like a fuel pump or headlight failure, that makes you suspect a bad relay?
