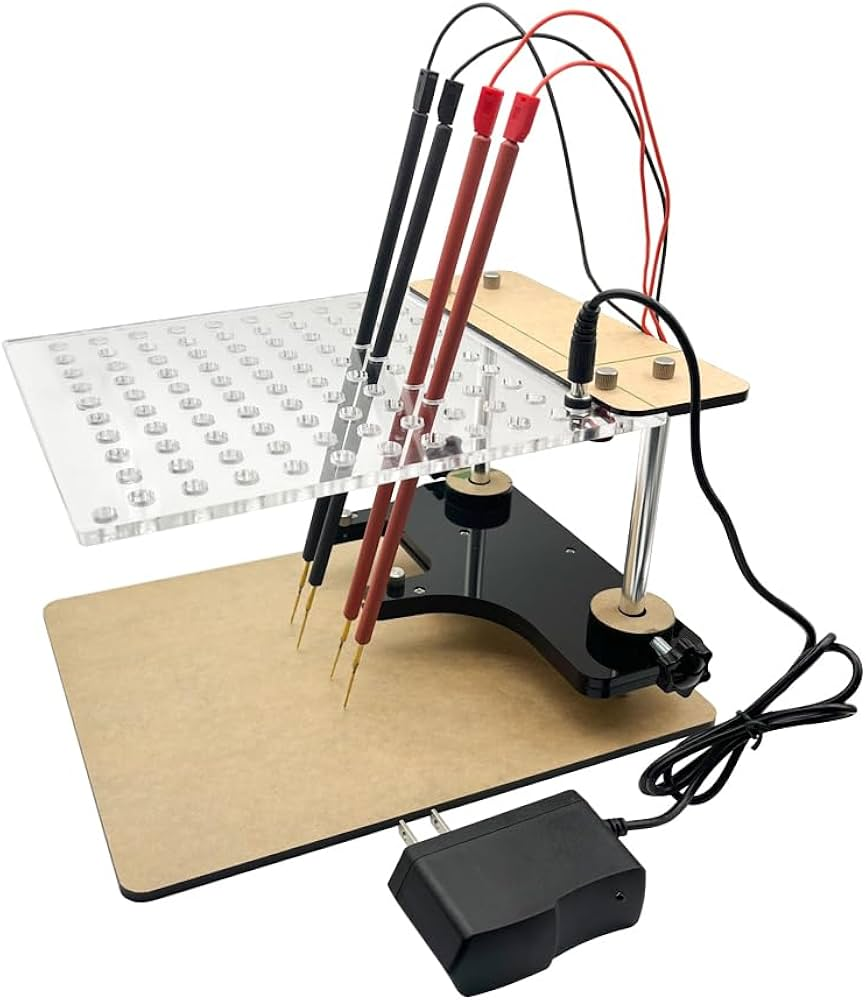

KTAG BDM Frame with LED Board & Probe Pins

A KTAG BDM (Background Debug Mode) frame with probe pins is a professional tool used for ECU (Engine Control Unit) remapping, chip tuning, and programming. It allows technicians to connect directly to an ECU’s circuit board “on the bench” without the need for delicate soldering.
Key Components & Functions
The BDM Frame: A sturdy stand, typically made of aluminum alloy or acrylic, that holds the ECU securely in place during the programming process.
Probe Pins (Probe Pens): These are specialized, spring-loaded needles that establish a physical electrical connection between the programming tool (like KTAG or KESS) and the specific contact points on the ECU board.
LED Lighting: Many modern frames include an LED light bar (powered by 12V) to illuminate the ECU board, making it easier to align the pins with high-density contact points.
Adapters: High-end kits often include a set of adapters (e.g., Bosch, Marelli, Delphi) that slot into the frame to match different ECU pin layouts.
Why It Is Used
Solderless Connection: It eliminates the risk of damaging the ECU board with heat from a soldering iron.
Stability: The frame ensures the pins do not move during the data transfer, which is critical for preventing “bricking” (permanently disabling) the ECU.
Full Access: Unlike OBD (On-Board Diagnostics) tuning through the car’s port, BDM allows for a full backup of the ECU, including the microprocessor, EEPROM, and flash memory.
Speed: It is a faster method for professionals who frequently “brush” (reflash) or modify ECUs for performance tuning or cloning.
Compatibility
These frames are universal and compatible with various diagnostic and tuning tools, including:
KTAG / KESS V2
FGTECH / Galletto V54
BDM100 / KTM100
CMD / DIMSPORT
Would you like to see a list of the most common ECU adapters used with these frames for specific car brands?
You can buy a KTAG BDM Frame with probe pins directly from Jabedul Dewan Trading Co, LLC in Dubai, as they specialize in ECU programming tools and automotive diagnostic scanners.
Where to Buy: Jabedul Dewan Trading Co, LLC
This supplier is an authorized dealer for several diagnostic brands and imports ECU programming equipment.
Location: Nesto Hypermarket, Meena Bazaar – Shop F98 – 3 64 St – Bur Dubai – Al Fahidi – Dubai.
Contact: +971 50 997 0171 (WhatsApp available).
Hours: Open daily from 9:00 AM to 11:00 PM.
Specialty: They are known for providing technical support for automotive diagnostic tools, including ECU remote key programmers and chip tuning aids.
Online Alternatives in the UAE
If you prefer to compare prices or shop online, the following platforms carry KTAG-compatible BDM frames and probe sets:
These product listings offer KTAG BDM frame kits and adapter sets available for purchase in the UAE.
