UPA-USB Current Support List

Mileage Airbag ECU SRS SAS Eeprom MCU Programmer

The Elrasoft UPA-USB Serial Programmer-S (UUSP-S) paired with the SoftDump Full Scripts Package is an elite, professional-grade setup for automotive electronic control unit (ECU) calibration, airbag reset, and dashboard reprogramming.

Crucially, SoftDump scripts are tied to the unique serial number of your hardware and only support original UPA-S hardware (the “Black Box” version). SoftDump does not support, function with, or provide software updates for cheap Chinese clone hardware or obsolete UPA versions (v1.2, v1.3).

📦 SoftDump “Full Package” Capabilities

The SoftDump Full Package contains all existing and future automotive calibration algorithms, including ongoing updates. It breaks down into five primary functional categories:

• Mileage & Hours Correction: Comprehensive adjustments for dashboards, ABS, BCM, and BSI modules across cars, trucks, and powersports.
• SRS Airbag Crash Data: Algorithms to instantly clear crash logs and restore deployed airbag modules.
• ECU Data Repair: Advanced checksum calculation and data modification inside engine control units.
• SAS Recovery: Dedicated steering angle sensor resetting and adaptation scripts.
• Special Hardware Utilities: Tools like the Hex Injector script for parsing and modifying raw hexadecimal dumps directly inside the interface.

🛠️ Official Installation & Setup Guide

To use your purchased SoftDump scripts, follow the exact folder hierarchy required by the official Elrasoft Uuprog software:

text

C:

└── Program Files (x86)

└── ELRASOFT

└── UPA-USB Suite

└── Device Programmer

└── DeviceScripts         <– Place .udxp script files here

Use code with caution.

1. Verify Connection: Plug your authentic UPA-S programmer into the USB port before launching the software. The scripts will lock and fail to execute if the correct hardware serial is missing.
2. Move Scripts: Place your licensed .udxp script files into the DeviceScripts
3. Move Help Files: Create a directory at C:SOFTDUMPHELP to store any companion operational manuals.
4. Execute: Launch the Uuprog Navigate to the left-hand device tree, where you will see the added Softdump Tools and vehicle-specific calculators.
5. Safety Backup: Always read and save a pristine, unmodified original dump (the “mother dump”) of the vehicle chip before applying any script calculation

⚠️ A Warning on Cracked/Pirated Dumps

If you are searching for a cracked, free, or downloaded “Full Script SoftDump” archive on internet forums, be aware of severe operational risks:

• Hardware Bricking: Pirated software often forces firmware updates that permanently brick or disable your expensive original UPA-S device.
• Corrupted Calculations: Cracked scripts lack real-time algorithmic checksum correction, which can permanently corrupt a vehicle’s ECU or odometer EEPROM beyond repair.
• No Vehicle Updates: Modern automotive microcontrollers (such as 2024–2026 vehicles using secured EEPROMs) require the active, verified script revisions pushed out monthly by the SoftDump developer community.

To get authentic packages verified for your specific programmer serial number, order directly from the developer at SoftDump.net or authorized distributors like Jabedul Dewan Trading llc, UAE, or ISSBD Bangladesh

If you’d like to dive deeper, let me know:

• Which specific vehicle make/model or MCU chip are you trying to read?
• Do you need help troubleshooting a specific script error code inside Uuprog?
• Are you trying to verify if a particular module (like a newer SRS or Dashboard) is supported?

Original UPA-USB programmer with a Full set of scripts from SOFTDUMP
The original black UPA-USB programmer is a universal tool designed for working with microcontrollers and EEPROMs, specifically tailored for professionals in automotive electronics, repair, and diagnostics. The package includes a full set of scripts from SOFTDUMP, significantly enhancing the device’s capabilities and simplifying the execution of complex tasks.

Key features and benefits:
Wide compatibility:

Supports a variety of microcontrollers, EEPROMs, and other types of chips.
Complete set of scripts from SOFTDUMP:

Optimized algorithms for reading, writing, and verifying data.
Support for popular car brands and models.
Easy handling of protected chips, including data recovery and bypassing security systems.
User-friendly interface:

Intuitive software ensures easy management of programming and testing processes.

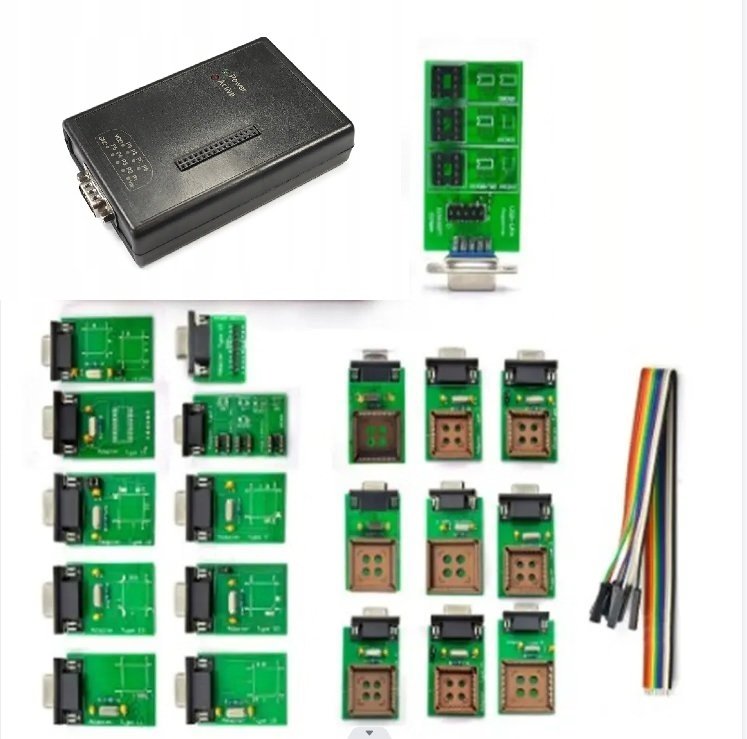

Package Contents:
UPA-USB Programmer;
CAN BUS adapter;
Full set of SOFTDUMP scripts with detailed documentation;
License for script usage;
Developer-provided technical support;
UPA-USB is used for:
Diagnostics and repair of automotive electronics.
Working with control units (ECU), odometers, immobilizers, and other electronic systems.
Data recovery and chip programming.

You can buy the original hardware and script packages directly from the official developers, which ensures you receive authentic tools, proper technical support, and legitimate software updates.
The software package you referenced is authored by SoftDump, which specifically creates scripts for the original hardware developed by Elrasoft.
Where to Buy the Official Hardware & Scripts (Jabedul Dewan Trading LLC)
If you choose to purchase this combination as a bundled service from a reseller the name Jabedul Dewan Trading LLC (who offers free remote installation, worldwide supply, and online technical training), please keep the following critical points in mind:
• Check for Hardware Authenticity: SoftDump explicitly states on the SoftDump UPA-USB Script Page that they do not support Chinese clone hardware or older discontinued UPA tools (v1.2, v1.3). Their scripts only activate and function on the new, original UPA-S “Black Box” programmer. Ensure your reseller is providing genuine Elrasoft hardware.
Summary of Included Features
When properly sourced, this automotive setup provides:
• Broad MCU Support: Compatibility with advanced chips including Renesas RH850, RL78, and NXP/Freescale variants as detailed on the Elrasoft Help Portal.
• Low Voltage Operations: Reliable reading and writing capabilities down to 1.2V without needing external power supplies via Elrasoft Hardware.
• Comprehensive Algorithms: Hundreds of scripts tailored for mileage correction, airbag crash data resetting, and ECU tuning.
If you proceed with the reseller, would you like help preparing a checklist of questions to ask them to guarantee the hardware and scripts are genuine?

Support List

Spansion/Cypress S6J31x:
S6J3119H, S6J311AH, S6J3128H, S6J3129H, S6J312AH, S6J311EJ, S6J311DJ, S6J311EH, S6J311DH
Spansion/Cypress S6J32x:
S6J3001L, S6J3003K, S6J32BAK, S6J323CK, S6J323CL, S6J324CK, S6J324CL, S6J325CK, S6J325CL, S6J326CK, S6J326CL, S6J327CK, S6J327CL, S6J328CK, S6J328CL, S6J329CK, S6J329CL, S6J32KEK, S6J32KEL, S6J32LEK, S6J32LEL, S6J32MEK, S6J32MEL, S6J32NEK, S6J32NEL
Spansion/Cypress S6J33x:
S6J331EK, S6J331EJ, S6J332CK, S6J332EJ, S6J332DJ, S6J332EH, S6J334CK, S6J334BJ, S6J334EJ, S6J334DJ, S6J334CJ, S6J334EH, S6J334DH, S6J334CH, S6J335EK, S6J335EJ, S6J336AH, S6J336AJ, S6J336CJ, S6J337BJ, S6J337CJ, S6J337AH
Renesas RL78: R5F113LK
Motorola / NXP 9S12G: MC9S12GN(A)32, MC9S12GN(A)16

Renesas RL78: R5F100LEx, R5F10DGDx, R5F10DLDx, R5F10DMEx, R5F10CMEx, R5F10DPJx
NXP S12ZVH: MC9S12ZVHL32, MC9S12ZVHY32, MC9S12ZVHL64, MC9S12ZVHY64, MC9S12ZVH64, MC9S12ZVH128
NXP S12VR: MC9S12VR16, MC9S12VR32, MC9S12VR48, MC9S12VR64
Renesas RH850: R7F701002x, R7F701003x, R7F701006x, R7F701007x, R7F701008x, R7F701009x, R7F701010x, R7F701011x, R7F701012x, R7F701013x, R7F701014x, R7F701015x, R7F701016x, R7F701017x, R7F701018x, R7F701019x, R7F701020x, R7F701021x, R7F701022x, R7F701023x, R7F701024x, R7F701025x, R7F701028x, R7F701029x, R7F701030x, R7F701032x, R7F701033x, R7F701034x, R7F701040x, R7F701041x, R7F701042x, R7F701043x, R7F701044x, R7F701045x, R7F701046x, R7F701047x, R7F701048x, R7F701049x, R7F701050x, R7F701051x, R7F701052x, R7F701053x, R7F701054x, R7F701055x, R7F701056x, R7F701057x, R7F7010623, R7F7010643, R7F7010673, R7F7010713, R7F701330, R7F701401, R7F701402, R7F701403, R7F701A033, R7F701A223, R7F701A313
Renesas/NEC R8C: R5F212DC, R5F21344P, R5F21344R, R5F21346P, R5F21346R, R5F21346W, R5F21347W, R5F21348W, R5F2134AW, R5F2134CW, R5F21546E, R5F21546F, R5F21546G, R5F21546H, R5F21547E, R5F21547F, R5F21547G, R5F21547H, R5F21548E, R5F21548F, R5F21548G, R5F21548H, R5F2154AE, R5F2154AF, R5F2154AG, R5F2154AH, R5F2154CE, R5F2154CF, R5F2154CG, R5F2154CH
Cypress/Fujitsu: MB90F351, MB90F352, MB90F357, MB90F438, MB90F439, MB90F543, MB90F546, MB90F548, MB90F549, MB90F598, MB90F897, MB90F952, MB91F058, MB91F060, MB91F061, MB91F062, MB91F067, MB91F223, MB91F224, MB91F248, MB91F249, MB91F233/L, MB91F463C, MB91F362, MB91F365, MB91F366, MB91F367, MB91F368, MB91F369, MB91F464, MB91F465,MB91F467B, MB91F467C, MB91F467D, MB91F467S, MB91F522, MB91F523, MB91F524, MB91F525, MB91F526,MB91F575, MB91F577, MB91F578, MB91F579, MB91F591, MB91F592, MB91F594, MB91F596, MB91F597, MB91F599, MB96F348x, MB96F348H, MB96F385, MB96F386, MB96F387, MB96F612, MB96F613, MB96F615, MB96F673, MB96F675, MB96F683, MB96F685, MB96F693, MB96F695, MB96F696, MB96F6A5, MB96F6A6
Renesas/NEC V850: uPD70F3237, uPD70F3276, uPD70F3333, uPD70F3334, uPD70F3335, uPD70F3336, uPD70F3340, uPD70F3341, uPD70F3342, uPD70F3343, uPD70F3344, uPD70F3345, uPD70F3346, uPD70F3347, uPD70F3348, uPD70F3350, uPD70F3351, uPD70F3352, uPD70F3353, uPD70F3354, uPD70F3355, uPD70F3356, uPD70F3357, uPD70F3358, uPD70F3364, uPD70F3365, uPD70F3366, uPD70F3367, uPD70F3368, uPD70F3370A, uPD70F3371, uPD70F3372, uPD70F3373, uPD70F3374, uPD70F3375, uPD70F3376A, uPD70F3377A, uPD70F3378, uPD70F3379, uPD70F3380, uPD70F3381, uPD70F3382, uPD70F3383, uPD70F3384, uPD70F3385, uPD70F3421, uPD70F3422, uPD70F3423, uPD70F3424, uPD70F3425, uPD70F3426A, uPD70F3427, uPD70F3464, uPD70F3465, uPD70F3466, uPD70F3469, uPD70F3470, uPD70F3471, uPD70F3472, uPD70F3505A, uPD70F3506, uPD70F3507, uPD70F3508, uPD70F3509, uPD70F3522, uPD70F3523, uPD70F3524, uPD70F3525, uPD70F3526, uPD70F3529, uPD70F3532, uPD70F3535, uPD70F3536, uPD70F3537, uPD70F3548, uPD70F3549, uPD70F3550, uPD70F3551, uPD70F3552, uPD70F3553, uPD70F3554, uPD70F3555, uPD70F3556, uPD70F3557, uPD70F3558, uPD70F3559, uPD70F3560, uPD70F3561, uPD70F3564, uPD70F3570, uPD70F3571, uPD70F3572, uPD70F3573, uPD70F3574, uPD70F3575, uPD70F3576, uPD70F3577, uPD70F3578, uPD70F3579, uPD70F3580, uPD70F3582, uPD70F3583, uPD70F3584, uPD70F3585, uPD70F3592, uPD70F3623, uPD70F3624, uPD70F3625, uPD70F3626, uPD70F3627, uPD70F3628, uPD70F3629, uPD70F3630, uPD70F3631, uPD70F3632, uPD70F3633, uPD70F3634, uPD70F3635, uPD70F3636, uPD70F3637, uPD70F3638, uPD70F3736, uPD70F4000, uPD70F4001, uPD70F4002, uPD70F4003, uPD70F4004, uPD70F4005, uPD70F4006, uPD70F4007, uPD70F4008, uPD70F4009, uPD70F4010, uPD70F4011, uPD70F4012
Freescale HCS08: MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08AW16, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08GB60
Freescale MAC7200: MAC7241, MAC7242
Infineon XC2300: XC2060N-40F, XC2060M-104F, XC2336B-24F, XC2336B-40F, XC2361A-56F, XC2361A72F, XC2363A-56F, XC2363A-72F, XC2364A-56F, XC2364A-72F, XC2364A-104F, XC2365A-56F, XC2365A-72F, XC2365A-104F, XC2361B-24F, XC2361B-40F, XC2363B-24F, XC2363B-40F, XC2364B-24F, XC2364B-40F, XC2365B-24F, XC2365B-40F, XC2336A-56F, XC2336A-72F, XC2265N-16F, XC2265N-24F, XC2265N-40F
Freescale MPC5600: MPC5604C, MPC5604P, MPC5606B, MPC5601P, MPC5602P, MPC5603P, MPC5605B, MPC5607B
Freescale 9S12: MC9S12G48, MC9S12G64, MC9S12G96, MC9S12G128, MC9S12G192, MC9S12G240
STMicroelectronics SPC56P: SPC560P44, SPC560P50, SPC560P34, SPC560P40, SPC560P54, SPC560P60, SPC56AP54, SPC56AP60
STMicroelectronics ST62*: ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
Motorola HC05*:MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32
Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
Motorola/Freescale 9S12(X/E): MC9S12A128, MC9S12B128, MC9S12C128, MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12D64, MC9S12DG128, MC9S12DG256, MC9S12DP512, MC9S12H128, MC9S12H256, MC9S12HA32, MC9S12HA48, MC9S12HA64, MC9S12HY32, MC9S12HY48, MC9S12HY64, MC9S12HZ128, MC9S12HZ256, MC9S12HZ64, MC9S12P128, MC9S12P32, MC9S12P64, MC9S12P96, MC9S12XA128, MC9S12XA256, MC9S12XA512, MC9S12XB128, MC9S12XB256, MC9S12XD128, MC9S12XD256, MC9S12XD64, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512, MC9S12XEG128, MC9S12XEP100, MC9S12XEP768, MC9S12XEQ384, MC9S12XEQ512, MC9S12XET256, MC9S12XHY128, MC9S12XHY256, MC9S12XHZ256, MC9S12XHZ384, MC9S12XHZ512, MC9S12XS64, MC9S12XS128, MC9S12XS256
Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162,  ATmega163, ATmega323, ATmega64, ATmega103,  ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535, ATmega48, ATmega88, ATmega168,ATmega169, ATmega328, ATMEGA32A
Microchip PIC12:PIC12F508, PIC12F509, PIC12F629, PIC12F675
Microchip PIC16:PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73,  PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A), PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F87, PIC16F88, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937, PIC16F1938, PIC16F1939, PIC16F1946, PIC16F1947
EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01, 24C1024, 24C1025
EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045, 25LC512, 25LC1024
EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A ,S-29390A
Serial Flash SPI: M25P05, M25P10, M25P20, M25P40, M25P80,  A25L512, A25L010, A25L020, A25L040, A25L080, A25L016, A25L032, SST25VF512A, SST25VF010A, SST25VF020B, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A, M95M01, M95M02

EEPROM Only
D-Flash Memory only
Read only

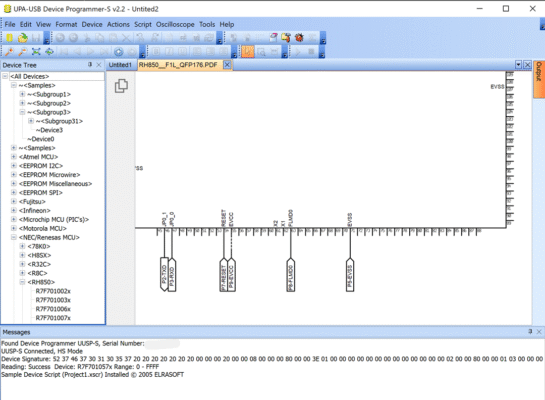

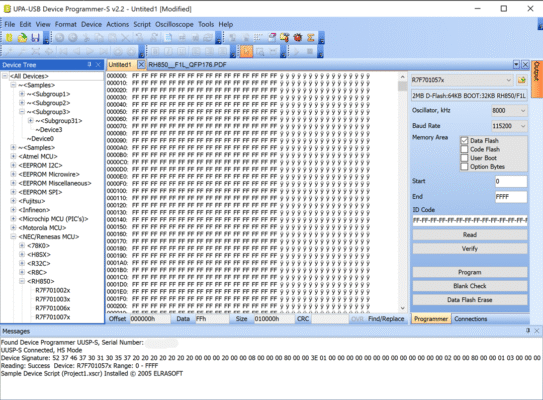

UPA-USB Device Programmer-S Software (UUPROGS)

Minimum System Requirements: Pentium processor-based personal computer, 1GB RAM Memory, 100GB HDD/SSD, USB 2/3 port,  Windows 7/8/10/11 32-bit or 64-bit
Supported Programmers: UPA-USB Serial Programmer-S (UUSP-S)
Hex Editor: Over write or insert mode; Support hexadecimal, decimal, octal and binary systems; File size up to 2GB (depends on the virtual memory of the computer); Print the whole file or selected part of it; Unlimited Undo/Redo; Adjustable bytes per line; Fast searching/replacing hex or text data; Compare files; Font and colour options; Opening/Saving Intel Hex Format files; Opening Motorola S Record files; Swap even and odd bytes; Copy dump to clipboard; Copy part of a file to another file or to a text editor; Go to specified offset; Fill a selected part of the file in 0, FFh, counter or random ;
Checksum Calculator
Picture View: PDF, JPG, BMP, PNG, GIF and TIF files; Zoom In/Out
Text Editor: TXT, RTF
Hex/DEC Converter
Pulse Generator: 0-500kHz
Voltmeter: 0-5.5V

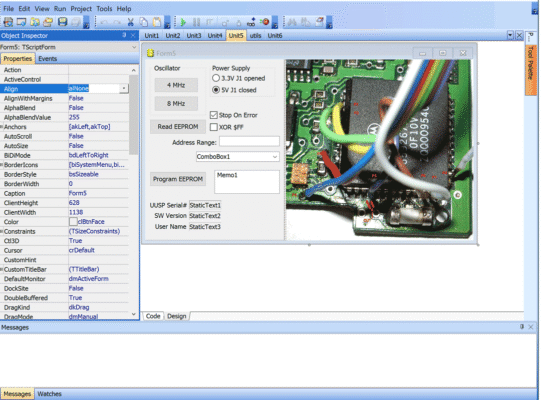

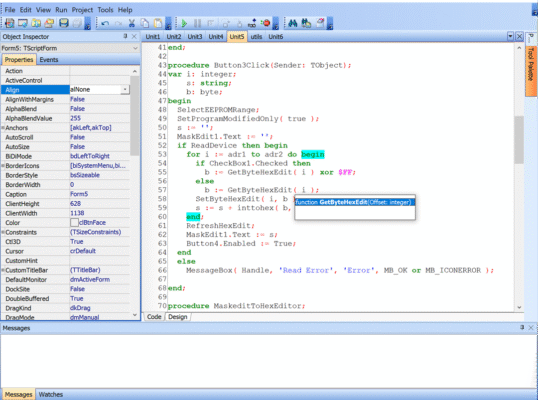

Pascal Script Editor: The user can add new devices and actions using pascal scripts
