ProByte Edit 2.2 USB Key – Professional ECU Firmware Editor & Modular Calibration Software

ProByte Edit 2.2 USB Key – Professional ECU Firmware Editor & Modular Calibration Software
ProByte Edit 2.2 is a modular automotive ECU firmware editing platform intended for professional workshops and ECU calibration specialists. The software is protected by a SenseLock USB hardware key, and functionality is expanded by activating ECU-specific software modules on that key.
Main Features
ProByte Edit is designed around a simple workflow: load a supported ECU firmware file, allow the applicable licensed module to recognize and process the calibration, then save the modified file for use with a compatible ECU flasher/programmer. The source emphasizes a largely one-button interface, intended to reduce repetitive manual firmware-editing work.
For legitimate calibration and repair workflows, useful capabilities include:
– ECU firmware file editing
– Automatic processing through ECU-specific modules
– CRC/checksum calculation on supported modules
– Modular ECU-family licensing
– Multiple modules activated on one USB key
– Simple, largely one-click processing
– Support for numerous gasoline and diesel ECU families
– Firmware preparation for use with a separate compatible ECU programmer/flasher
The source also advertises modules for emissions-system and immobilizer defeat. I would not market those functions as general-purpose removal/bypass services; for a professional website, it is better to position ProByte around legitimate ECU calibration, repair, checksum and post-repair firmware processing.

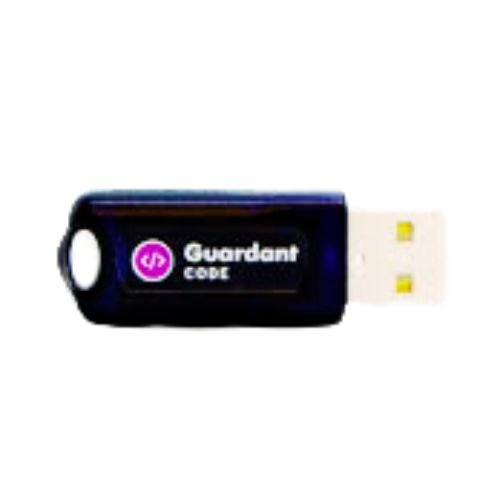

USB Hardware License Key
The ProByte Edit USB key protects the software against unauthorized access. According to the current listing, the USB key cannot be purchased by itself—at least one ProByte Edit software module must be ordered with it.
The platform is expandable: one USB key can hold an unlimited number of compatible ProByte modules, and additional modules can be activated later using the serial number of the existing key.
The required USB driver is SenseLock EL4-Genii. The seller also warns that if the USB key is lost, activated modules cannot be restored, so workshops should protect the dongle carefully.
Modular ECU Coverage
ProByte Edit uses ECU-specific modules rather than claiming one universal editing algorithm. The current catalog includes modules for multiple manufacturers and ECU families; examples visible in the listing include BMW Bosch EDC17CP45, Bosch MEVD17.2.x, Siemens MSD80/MSD81/MSD85, Siemens MSV80/MSV90, Changan Bosch MG1US008 and Beiben WISE15, with many additional modules available through the catalog.
This modular structure lets a workshop purchase only the ECU families it actually needs and add more coverage later.

ProByte Edit 2.2 Full — AED 6,885.94
BeiBen WISE15 (SCR, DTC) — AED 918.12
BMW
BMW Bosch EDC17CP45 (EGR, DPF, DTC) — AED 688.59
BMW MEVD17.2.4 (CAT, EVAP, EGR, DTC) — AED 504.97
BMW MEVD17.2.6 (CAT, EVAP, EGR, DTC) — AED 504.97
BMW Bosch MEVD17.2.9 (CAT, EVAP, EGR, DTC) — AED 504.97
BMW Bosch MEVD17.2.G (CAT, EVAP, EGR, DTC) — AED 504.97
BMW MEV17.2.1 (EGR, CAT, EVAP, DTC) — AED 504.97
BMW Siemens MSD80 (CAT, EVAP, EGR) — AED 688.59
BMW MSD81 (CAT, EVAP, EGR) — AED 688.59
BMW Siemens MSD85 (CAT, EVAP, EGR) — AED 688.59
BMW Siemens MSV80 (CAT, EVAP, EGR) — AED 688.59
BMW Siemens MSV90 (CAT, EVAP, EGR) — AED 688.59
CHANGCHAN
Changchan MG1US008 (CAT, EVAP, DTC) — AED 504.97
CHRYSLER
Chrysler Motorola NGC4 (CAT, EGR, DTC) — AED 504.97
Chrysler Continental GPEC2 (CAT, EGR, DTC) — AED 504.97
DAF
DAF Delphi ETC3 (EGR, SCR, DPF, DTC) — AED 1,377.19
DONGFENG
DongFeng EDC17C81 (EGR, SCR, DPF, DTC) — AED 918.12
DOTHANH
Dothanh Bosch EDC17C55 (EGR, DPF, DTC) — AED 918.12
FAW
FAW Bosch EDC17CV44 (SCR, DTC) — AED 1,147.66
FIAT
Fiat MED17.3.0 (CAT, EVAP, DTC) — AED 504.97
Fiat Bosch ME17.3.0 (CAT, EVAP, DTC) — AED 504.97
Fiat Bosch EDC16C39 (EGR, DPF, DTC) — AED 504.97
Fiat Bosch ME7.9.10 (CAT, EVAP, DTC) — AED 504.97
Fiat Group Marelli 8F2/8F3 (EGR, DPF, DTC) — AED 688.59
FORD
Ford Continental SID208 (EGR, DPF, DTC) — AED 688.59
Ford SID209 (EGR, DPF, SCR, DTC) — AED 688.59
Ford Continental SID211 (EGR, DPF, SCR, DTC) — AED 688.59
Ford Continental EMS2204 (CAT, EVAP, DTC) — AED 504.97
Ford Bosch DCU17 / EDC17CP43 (SCR) — AED 688.59
FUSO
Fuso Denso 1024 KB (EGR, SCR, DPF, DTC) — AED 688.59
Fuso Denso 2048 KB (EGR, SCR, DPF, DTC) — AED 688.59
Fuso Bosch EDC17CP52 (EGR, SCR, DPF, DTC) — AED 688.59
GAZEL
Gazel Next Bosch EDC17CV54 (EGR, DPF, DTC) — AED 229.53
GM / ACDELCO
GM ACDelco E38 (CAT, EVAP, EGR, DTC) — AED 504.97
GM ACDelco E67 (CAT, EVAP, EGR, DTC) — AED 504.97
GM ACDelco E78 (CAT, EVAP, EGR, DTC) — AED 504.97
GM ACDelco E83 (CAT, EVAP, EGR, DTC) — AED 504.97
GEELY
Geely Bosch MED17.8.8.1 (CAT, EVAP, DTC) — AED 504.97
Geely Bosch MG1CS080 (CAT, EVAP, EGR, DTC) — AED 918.12
HAVAL
Haval Bosch MG1US008 (CAT, EVAP, DTC) — AED 688.59
HINO
Hino Denso 1024 KB (EGR, DPF, SCR, DTC) — AED 688.59

ProByte Edit FULL
The source also lists a ProByte Edit 2.2 Full package. It is described as providing access to the standard modules and free additions of newly released standard modules. However, the seller specifically states that premium-subscription modules and the original-files database are not included in the Full package.
Important: Editor vs. ECU Programmer
ProByte Edit should be presented primarily as a firmware editor/processor, not as the hardware that physically reads and writes every ECU.
A typical professional workflow is:
Read ECU firmware with compatible programmer → Create original backup → Open file in ProByte Edit → Process supported calibration → Save edited file → Verify checksum requirements → Write file with compatible ECU programmer → Perform diagnostics and road/bench verification.
This distinction is important when describing the product to customers.
Licensing Information
Activated software modules are digital licenses. The seller states that activated licenses cannot be returned, refunded, transferred or reissued to another device. Once an order reaches the activation-processing stage, it also cannot be cancelled or modified.
Compatibility should therefore be confirmed by vehicle, ECU manufacturer, ECU model, hardware/software number and required function before purchasing a module.
Recommended Website Headline
Note: ProByte Edit should be used for lawful vehicle calibration and repair. Emissions, immobilizer, diagnostic and security systems should remain compliant with applicable regulations, and security-related work should only be performed on vehicles the technician owns or is authorized to service.
