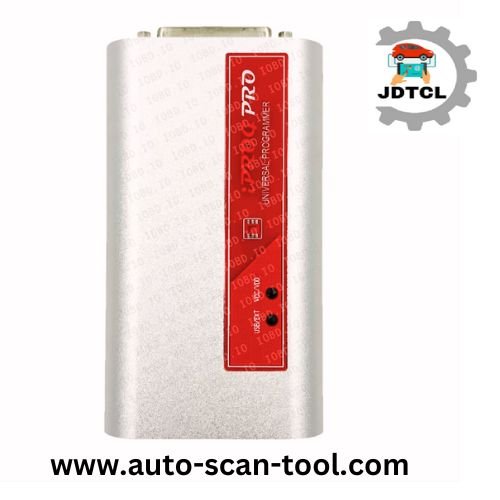

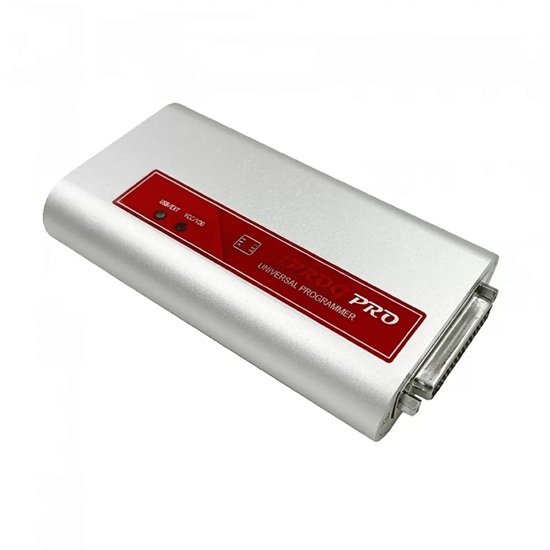

The original iProg Pro is a highly specialized, professional-grade automotive microelectronics programmer designed and manufactured in Russia. It serves as a comprehensive tool for electronic control unit (ECU) repair, key programming, and dashboard electronics management
Because the market is heavily flooded with inexpensive Chinese hardware clones (often labeled as iProg+ or V84/V87/V89 software bundles), it is important to distinguish the official Russian tool from its unauthorized copies.
The original iProg Pro programmer is designed to program control units and automotive electronics. Its functionality allows you to work with odometers, crash data, immobilizer, support transponders (registering new keys and deleting old ones), has a huge coverage of vehicles.
Main functions of iProg RRO:
- Odometer correction via OBDII connector
- Odometer correction on the bench via adapters
- Unlocking radios
- Working with keys (IMMO, Transponders), copying, preparing, unlocking
- Working with IMMO dumps
- Working with SRS airbag ECUs, deleting crash data
- Converting readings from miles to KM
- Reading and writing processors and EEPROM used in cars
- Deleting a particulate filter in a dump
- Working with intercom keys
- Calculating PIN from a dump
Core Functionalities of the Authentic iProg Pro
The legitimate hardware runs proprietary scripts and software designed for complex vehicle diagnostics:
- Odometer Adjustment: Modifies mileage data via the OBDII connector or directly on the bench using modular adapters.
- Airbag (SRS) ECU Reset: Clears critical crash data and fault codes directly from the module’s microcontrollers.
- Immobilizer (IMMO) & Key Systems: Copies, programs, prepares, and unlocks transponder keys, smart keys, and remote entry setups.
- Multimedia Unlocking: Decodes and unlocks car radios, navigation screens, and media systems.
- EEPROM and MCU Programming: Safely reads, writes, and erases onboard chips including brands like Atmel, Fujitsu, Motorola, and NEC.
- Emission Delete Systems: Modifies electronic files to turn off Diesel Particulate Filters (DPF) within the ECU dump.
How to Buy the Original Russian Hardware
The authorized way to purchase a genuine device and receive technical updates is through official distribution networks
- Official Forum & Support: The manufacturer hosts the official iProg Pro Forums, which serves as the verification hub for legitimate serial numbers and international sales out of Russia.
- Authorized Distributors: Specialized professional trade platforms Jabedul Dewan Trading LLC list verified original iProg Pro hardware configurations along with legitimate calculator and vehicle brand script packages
Spotting Clones vs. the Original
- Price Variance: An original Russian hardware unit with a base set of script calculators costs several hundred dollars. In contrast, online copies sold on major budget e-commerce sites like JDTCL or ISSBD Bangladesh
- Software Updates: Clones are locked to frozen software versions (such as V87 or V89). Connecting a cloned hardware interface to the official Russian server to download new scripts will permanently brick the device.
- Power Supply Restrictions: Many aftermarket clones feature flawed circuit designs that fail or burn out instantly if hooked to an external 12V supply, restricting operation solely to 5V USB power.
Are you looking to purchase a genuine unit from a distributor, or do you need help troubleshooting an existing iProg interface you own?
Advantages of the bootloader:
Script applicability:
The device supports loading additional scripts—you can install them to perform specific tasks you need in your work.
Accessibility and versatility:-
At a reasonable price, iProg Pro offers functionality comparable to more expensive alternatives. This makes it an excellent choice for both beginners and experienced professionals.
What’s included in the kit:-
iProg Pro programmer
USB cable
Additionally: you can purchase:
Cables for connection to microcircuits;
Adapters.
ADD EXTRA
+ Cable Dupon F-F
(40 AED)
+ Adapter smart K+CAN for iProg
(+562.28 AED)
+ Adapter RFID for iProg
(+463.53 AED)
+ Adapter kit for iProg Pro
(+1,450.22 AED)
+ Cable OBD2 MCP2515 for iProg Pro
(+643.57 AED)
+ Adapter CAN-FD for iProg
(+961.00 AED)
+ Adapter 44-pin for iProg Pro
(+195.59 AED)
If you’re looking for a versatile, affordable, and functional programmer that solves 90% of auto electrician’s problems, iProg Pro is an excellent choice. We offer only proven devices, installation support, and fast delivery.
Third-Party SoftwareÂ
APACEATIC65V71 Programming Script
Script for programming ATMEL APACEATIC65V71 power drivers for HONDA / MAZDA / VAG / Mercedes-Benz / FIAT / Citroёn / KIA / Hyundai vehicles! The adapter board is not included and is purchased separately.
This is a unique technical solution that is not available in other devices and programmers on the market
Applied in SRS units such as:
- 77960-SWA-G220-M4
- 77960-SWA-G214-M4
- GS1D-57K30 etc….
The script is for advanced users only.
MANY have encountered a problem when the unit stopped communicating after a crash or battery drain, or non-erasable errors appeared (U3000, B1000, errors that other auto electricians have encountered 53–82 and 51–42 are also possible). Usually this leads to replacing the APACEATIC65V71 power driver.
1) The script programs only New APACEATIC65V71 power drivers, since the OTP area is disposable.
2) For the script to work, it is better to use a TQFP44 soldering socket with a pitch of 0.8 or a QFP44-0.8-TRON (TRO1N) socket. There is a photo of the connection in the script.
3) The script determines the driver status new or programmed, checks the correctness of the connection, reads the driver configuration to determine the programming mode and programs it, checking the programming status after.
Audi Q5 A4 S5 A5 by dump EEPROM 95320
The script is designed to adjust the mileage of Audi Q5 A4 S5 A5 panels from Magneti Marelli using the EEprom 95320 dump.
Restrictions:
1. Internet access. 2. Saving changes twice a day
Mercedes FBS4 DSM EEPROM READ WRITE CAN
The script is designed to read/write DSM EEPROM on Mercedes cars with FBS4 access authorization system. Allows reading the full contents of EEPROM in bin (non-encrypted type) and writing EEPROM, with the help of the script it is possible to reset the counter of operations/transfer hashes/write vin, etc., in general any changes in EEPROM. With a certain skill it is possible to change FBS4/FBS3 using the vediamo+script bundle (there will be no manual). This DSM was installed on many Mercedes with W166/W447/W212 models with a 7-speed gearbox.
Please note that the script does not support working with DSM222 (even identification is not possible)
The script only works with iPROG and was tested with MCP2515. The script does not work with SJA1000.
Mercedes 48V Lithium Battery Unlock/LIB48_222
The script is designed to unlock 48V batteries LIB48_222 from Mercedes 205/213/222/167 on the bench without opening the battery (if the battery itself is not damaged). The script was tested on a homemade MCP2515 CAN adapter and no problems arose, the unlocking time is about 5-6 seconds.
The script has only 2 buttons:
1) Lock Status (to read the current state locked / not locked)
2) Unlock (the name speaks for itself)
Video of the script in action
MM9Z1J638 BDM EEPROM Read/Write
The script is designed to read/write the EEPROM of the MM9Z1J638 processor, which was installed in the BMS battery controllers of Porsche Taycan/Porsche Carrera 911 vehicles.
The script allows you to read the processor ID (always 02070207 regardless of the battery number)
- Reading EEPROM (5 sec)
- Writing EEPROM (18 sec)
- Editing the EEPROM dump to unlock the battery (the button edits the dump in the EEPROM buffer)
The script works with the new BDM adapter !!DO NOT USE THE OLD BDM!! EITHER A HOME-MADE OR A NEW BDM!!
The cleaning algorithm has been tested on 9J1915105K and 9Y0915107H
VAG LITHIUM BATTERY MODULE SPC5644B JTAG
VAG_LITHIUM_BATTERY_MODULE__SPC5644B_JTAG is a script for the iPROG PRO programmer.
The script is designed to restore Lithium batteries after a voltage drop or after a car accident.
There are two scripts in the package:
- Porsche – the script has a crash removal and recovery
- Audi (and in some VW) recovery. Subsequently in the car, you just need to enable it through the diagnostic function.
BCM T4 Renault Continental 2015-2022 OBD2-CAN
Script allows working with BCM (UCH) units manufactured by Continental via OBD2. These units are installed on a wide range of cars. From Lada Vesta-Granta-XRay to Renault Logan2, Daster2, Sandero2, Nissan Terrano2.
The script supports work with Continental units since 2021! The communication protocol has been changed in these units!
Supported functions via OBD2:
- ECU identification
- EEPROM Reading and Writing,
- Mileage reading and changing unit
- Mileage resetting of an area to the state of a new unit
- Correction of saved mileages
- For new generation units, since 2021 – reading EEPROM via the FLASH patch
Working with Flash memory. Reading, writing and checking the checksum of what has been read!
Also supported are functions that allow you to work with key information.
- Reading and changing the VIN code
- Reading ISK and PIN codes.
- Reading codes of registered keys.
- Possibility of resetting the immobilizer (Virginizing).
- NEW! Direct recalculation from ISK code to PIN code!
- Resetting the unit errors.
- Writing keys (up to 4 pieces). Reading the number of linked keys. Deleting unnecessary ones.
- It is possible to work with all keys lost! Linking a prepared key while maintaining synchronization with the ECU.
The script works with all OBD (CAN) adapters.
BCM T4 Renault Johnson Control OBD2-CAN
The script allows working with BCM (UCH) units manufactured by Johnson Control via OBD2, or a connector via CAN bus. These units are installed in a wide range of cars. From Lada XRay to Renault Logan2, Daster2, Sandero2, Nissan Terrano2, as well as Smart
Supported functions via OBD2:
- Unit identification
- FLASH memory Reading and Writing
- EEPROM Reading via FLASH patch
- When working with Flash memory. Reading, writing and checking the checksum of what was read
Functions that allow you to work with key information.
- VIN code Reading and Changing
- ISK and PIN codes Reading
- Code sequence (KEY – Security ID) reading for preparing the Master Key in case of all keys lost
- Reading codes of registered keys.
- Possibility of resetting the immobilizer (Virginizing)
- Direct conversion from ISK code to PIN code!
- Resetting the unit errors.
- Keys writing (up to 4 pieces).
It is possible to work with a complete loss of keys! Binding a prepared key while maintaining synchronization with the ECU.
The script works with all OBD (CAN) adapters, although it is better to use adapters on MCPxxxx chips.
It is possible to work both on the car and on the bench. The connection diagram on the bench is provided.
Full documentation on working with the script is attached. IMPORTANT! Working with the block is quite responsible! I have protected everything possible from erroneous user actions, But work with the block ONLY STRICTLY ACCORDING TO THE INSTRUCTIONS!
ABS BOSCH MEMORY
Script for working via OBD with the memory of BOSCH ABS units installed on Lada Vesta and Lada X-RAY cars assembled before 2023.
Supported functions via OBD2:.
- Identification data Reading
- FLASH Reading and writing
- EEPROM reading and writing
- VIN reading and writing
- Errors and software resetting of the unit
These ABS contain 0x140000 FALSH and 0x4000 EEPROM, TMS570 controller and EEPROM 95128. Script for applying block cloning.
PCFResetter
The scripts allows reset and preparation of the Master Key for the BCM T4 modules. Particulatrly for these scripts:
BCM T4 Renault Continental 2015-2022 OBD2-CAN
BCM T4 Renault Johnson Control OBD2-CAN
HFM Arcana Continental OBD
A script for obtaining PIN and DilerID codes from keyless entry units of Renault Arkana and Kaptur with units on locked SPC5606 controllers
TCM T87A (SPC564A80L7) FULL FLASH (R/W) BENCH CAN
A script for reading and writing TCM T87A gearboxes for GM vehicles. These transmission control units are used on 6-speed, 8-speed and 10-speed transmissions from 2015-2020:
Supported GM vehicles with 6-speed transmission and T87A TCM:
- 2015-2016 GM 2500HD/3500HD (6.6L LML)
- 2017-2019 GM 2500HD/3500HD (6.6L L5P)
Supported GM vehicles with 8-speed transmission and T87A TCM:
- 2017-2019 Chevrolet Silverado
- 2017-2019 Chevrolet Colorado
- 2017-2019 Chevrolet Corvette
- 2017-2019 Chevrolet Camaro
- 2017-2019 Cadillac Escalade and Escalade ESV
- 2017-2019 Cadillac ATS, ATS-V, CTS, CT6, and CTS-V
- 2017-2019 GMC Sierra, Yukon, Yukon XL, and Yukon Denali XL
- 2017-2020 Chevrolet Suburban
- 2017-2020 Chevrolet Tahoe
- 2017-2019 GMC Canyon
Supported GM vehicles with 10-speed transmission and T87A TCM:
- 2017-2018 Chevrolet Silverado 1500
- 2017-2018 GMC Sierra 1500
- 2017-2019 Chevrolet Colorado
- 2017-2019 Chevrolet Corvette
- 2017-2019 Chevrolet Camaro
- 2017-2019 Cadillac Escalade and Escalade ESV
- 2017-2019 Cadillac ATS, ATS-V, CTS and CTS-V
- 2017-2020 GMC Yukon, Yukon XL, Yukon Denali and Yukon Denali XL
- 2017-2020 Chevrolet Suburban
- 2017-2020 Chevrolet Tahoe
- 2017-2019 GMC Canyon
- 2018–2020 Cadillac Escalade
The script supports reading FULL FLASH and writing FULL FLASH (skipping the bootloader area) on the bench with a direct connection to the ECU connector.
The script also supports checking the correctness of the read and written data (that is, write whatever you want to the block, but after reading or writing, the script will check itself for the correctness of reading and writing data).
The script does not recalculate the Checksum.
To work with the script you will need a 44pin adapter or DB44 connector and an MCP2515 board and a 12V power supply that connects to the IPROGPRO programmer. There is a photo of the connection in the script.
BMW Dump Editor
CHERY TIGGO 7 8 PRO MAX 24C64
For the iPROG PRO programmer!!!
CHERY_TIGGO_7_8_PRO_MAX__24C64
The mileage is in the head unit behind the radio.
Das2 Calc
Denso Project
GM BCM OBD2
For the iPROG PRO programmer!!!
The script reads and writes the mileage in the GM BCM. PIN Reading.
Chevrolet Cruze, Aveo (T-300), Orlando, Cobalt, Opel Insigniz, Astra J, Mokko and others from this family.
KAMAZ ITELMA 9S12HY64 BDM
SRS CHANGAN RH850 UART
For iPROG PRO programmer!!!
CANGAN_SRS_RH850_UART
Reading and writing DATA FLASH of RH850 processor. Built-in CRASH cleaning calculator.
SRS FAW RH850 UART
For iPROG PRO programmer!!!
FAW_SRS_RH850_UART
Reading and writing DATA FLASH of RH850 processor. Built-in CRASH cleaning calculator.
FORD SRS RH850 UART
FORD_SRS_RH850_UART
Reading and writing DATA FLASH of RH850 processor. Built-in CRASH cleaning calculator
SRS FORD, LAND ROVER, JAGUAR Infineon XC CAN
For the iPROG PRO programmer!!!
Script for reading and writing EEPROM in FORD, LAND ROVER, JAGUAR airbag units on the Infineon processor.
Also reads and erases errors. Built-in CRASH cleaning calculator. The script can work with other people’s 64kb dumps
Attention!!!
For correct operation of the unit, it is recommended to connect the unit on the bench, in the regular position (that is, not upside down)!!!
SRS Kia, Hyundai, Toyota, Lexus RH850 UART
For the iPROG PRO programmer!!!
Scripts for cleaning CRASH SRS blocks on the RH850 family processor. Kia, Hyundai, Toyota, Lexus.
Video 1, Video 2
SRS GEELY Infineon XC23xx CAN ERASE CRASH
For the iPROG PRO programmer!!!
SRS_GEELY_Infineon_XC23xx_CAN_ERASE_CRASH
You can work on a car and on the bench. This is a push-button solution! Now you no longer need to read and write (long and tedious) processors.
This solution is proven and safe!!!!
SRS GEELY RH850 BOSCH CRASH RESET CAN
For the iPROG PRO programmer!!!
This is a push-button solution!!!!
SRS GEELY RH850 UART
For iPROG PRO programmer!!!
Reading and writing DATA FLASH of RH850 processor. Built-in CRASH clearing calculator.
These units were found on:
Geely Atlas
Geely Tugella
SRS GEELY SPC560 JTAG
For iPROG PRO programmer!!!
SRS GEELY SPC560 JTAG.
Reads and writes DATA FLASH 64kb.
Cleans crash.
SRS GEELY SPC560 SCAN DIAG CAN
Unit identification
Errors reading
Errors clearing
SRS GM XC2361A-56F & MAC 7242 JTAG
For iPROG PRO programmer!!!
- XC2361A-56F
Reads and writes FLASH 3 64kb. Built-in calculator.
- MAC 7242
Reads and writes EEPROM area 64kb.
The connection is a s siple as it comes: just peel off the back white cover. No need to lift the “legs”.
HONDA SRS DENSO RH850 CRASH RESET CAN
For iPROG PRO programmer!!!
HONDA SRS DENSO RH850 CRASH RESET CAN, it is a push-button solution.
You can work on the car and on the bench.
SRS Honda SPC, MPC JTAG + R8C UART+RH850
For iPROG PRO programmer!!!
Script package for SRS Hond, Reads and writes DATA FLASH
- SPC560P50
- SPC56AP54
- MPC5604 (SC667051MLL)
- R8C R5F2154AE
- RH850
The scripts have a CRASH cleaning calculator.
Data FLASH standard 64 kb.
HONDA SRS SPC560 CRASH RESET OBD2 CAN
For the iPROG PRO programmer!!!
HONDA SRS SPC560 CRASH RESET OBD2_CAN, it is a push-button solution
You can work on the car and on the bench.
ECUs with these processors:
- SPC560P50
- SPC56AP50
- SPC560P54
HONDA SRS TRICORE TC2xxx CRASH RESET CAN
For iPROG PRO programmer!!!
HONDA SRS TRICORE TC2xxx CRASH RESET CAN, it is a push-button solution.
You can work on the car and on the bench.
SRS Hyundai PSA PEUGEON CITROEN UART V850
For iPROG PRO programmer!!!
Script detects the block and removes CRASH:
For Hyundai 95910-1R050,150, 250
PSA PEUGEON_CITROEN with NEC uPD70F3628, uPD70F3629.
Flash reading and writing, plus calculator.
Video
SRS Kia, Hyundai, SPC560 JTAG
For the iPROG PRO programmer!!!
Scripts for cleaning CRASH SRS units on the SPC560 processor. Reads and writes the DATA FLASH area. A built-in calculator.
For Kia, Hyundai,
SRS Kia-Hyunai CAN CANFD Crash reset Full
For iPROG PRO programmer!!!
Kia-Hyundai SRS via CAN on the bench and via OBD2.
Kia-Hyundai SRS via CAN FD on the bench.
KIA_CEED_95910_A2xxx – CRASH RESET
KIA_HYUNDAI_95910_B2xxx_95256_MOBIS_CRASH_RESET_OBD2 – CRASH RESET
KIA_HYUNDAI_95910_F2xxx_MOBIS – CRASH RESET.
KIA_HYUNDAI_9S12DT128__K_Line – CRASH RESET.
KIA_HYUNDAI_BOSCH_EEPROM_CAN Reading, Writing (there is a calculator for the dump)
KIA_HYUNDAI_DELPHI – CRASH RESET
KIA_HYUNDAI_MAC7242_CAN – Reading, Writing, CRASH RESET (there is a calculator for the dump)
Kia_Hyundai_MOBIS – Reading, Writing (there is a calculator for the dump)
KIA_HYUNDAI_RH850_95512_MOBIS – CRASH RESET
KIA_HYUNDAI_RH850_CAN_CONTINENTAL – CRASH RESET (two versions or two generations)
KIA_HYUNDAI_RH850_CAN FD_CONTINENTAL – CRASH RESET
KIA_HYUNDAI_SPC560_CAN_CONTINENTAL – CRASH RESET
Tricore Aurix TC2xx (VEONER) – Reading, Writing, CRASH RESET (there is a calculator by dump)
Infineon XC2361A – Reading, Writing, CRASH RESET (there is a calculator by dump)
Infineon XC2060N – CRASH RESET.
KIA_KONA_TRICORE_TRW – CRASH RESET.
Kia-Hyundai SRS MOBIS with EEPROM CAN
For iPROG PRO programmer!!!
Scripts for reading, writing eeprom. Reading and erasing errors. Built-in calculator, for cleaning CRASH!!!
KIA-HYUNDAI SRS TC23xx JTAG
For iPROG PRO programmer!!!
KIA-HYUNDAI SRS TC23xx JTAG
Reading and writing D-Flash Infineon TC23x via JTAG interface.
Removing CRASH.
Removing B1620.
SRS LADA VESTA SPC560 JTAG
For iPROG PRO programmer!!!
SRS LADA VESTA SPC560 JTAG.
Lada VESTA, Lada VESTS NG.
Takata, Joyson.
Reads and writes DATA FLASH 64kb. Cleans CRASH. Saves normal operation. Does not turn on the airbag switch if it is not there
SRS Lada SPC560 OBD2 Clear Crash
For the iPROG PRO programmer!!!
SRS Lada Vesta TAKATA SPC560 CAN_OBD2 Clear Crash
SRS Lada Vesta JOYSON SPC560 CAN_OBD2 Clear Crash
SRS Lada GRANTA SPC560+EEPROM CAN_OBD2 Clear Crash
SRS UAZ TAKATA SPC560 CAN_OBD2 Clear Crash
Identification.
Reading and erasing errors (DTC). Cleaning CRASH data. (done only on the car provided that all safety is restored and there are no errors in the unit). Bench working only resets the unit to the factory mode.
Changing VIN. Entering into normal operation mode!!!
LAND ROVER Infineon Tricore TC22x CRASH RESET
For iPROG PRO programmer!!!
LAND ROVER_Infineon_Tricore_TC22xx_CRASH_RESET_OBD2
You can work on the car and on the table. This is a push-button solution!
MAZDA SRS Infineon & MAC7242 CAN
Script for reading and writing EEPROM in Mazda airbag units on Infineon and MAC7242 processor.
Also reads and erases errors. Built-in CRASH cleaning calculator, The script can work with other people’s 64kb dumps
Attention!!!
For correct operation of the unit, it is recommended to connect the unit on the bench, in the normal position (not upside down)
MAZDA SRS TRICORE TC2xxx CRASH RESET CAN
For iPROG PRO programmer!!!
MAZDA SRS TRICORE TC2xxx CRASH RESET CAN
You can work on the car and on the bench. This is a push-button solution!
SRS MITSUBISHI TRICORE TC2xx CRASH RESET
For iPROG PRO programmer!!!
SRS MITSUBISHI TRICORE AURIX TC2xx CRASH RESET CAN (push-button solution)!!!
You can work on the car and on the bench if you use the crash reset command.
If you need to work with eeprom, working on the bench is recommend. The script has been tested on adapters on MCP2515
NISSAN SRS Infineon XC2xxx CAN
For iPROG PRO programmer
The script reads and writes eeprom of Nissan airbag units on Infineon XC2xxx processor via CAN bus.
Reads and writes 64 kb flash. Reads and erases errors.
There is a calculator for cleaning CRASH. There are two scripts in the package for two types of units.
Attention!!! For correct operation of the unit, it is recommended to connect the unit on the “bench”, in the normal position (not upside down)!
NISSAN SRS TRICORE AURIX Infineon TC23xx CAN
For iPROG PRO programmer !!!!
NISSAN SRS TRICORE AURIX Infineon TC23xx CAN
The script reads and writes the EEPROM of the Infineon Tricore TC23xx AURIX processor via the CAN interface. A built-in crash cleaning calculator.
SRS PSA PEUGEOT CITROEN SPC JTAG
For iPROG PRO programmer!!!
SRS PSA_PEUGEOT_CITROEN SPC JTAG
Script for reading and writing DATA FLASH. Detects CRASH and erases it. When reading, the DATA FLASH dump is standard 64 kb.
PSA CITROEN PEUGEOT SRS AUTOLIV EEPROM UPD70F3624 GM S CAN
For the iPROG PRO programmer!!!
A joint purchase is opening for PSA_CITROEN_PEUGEOT_SRS_AUTOLIV_EEPROM_UPD70F3624_GM_S_CAN
Unit identification. Reading and erasing errors. CRASH removal.
This is a push-button solution! Now you no longer need to solder the EEPROM or connect to the processor.
Renault SRS RH850, SPC560, XC23XX, CAN, K-Line
For iPROG PRO programmer!!!
RENAULT / KOLEOS / ESPACE V / MEGANE IV / SCENIC IV 2016+
NISSAN, LADA
SRS RH850, SPC, Megane, TEMIC CAN, K-Line
Renault XC2336
Renault / Lada SPC560,
Renault / Lada RH850,
Renault / Lada TEMIC CAN, K-Line
Scenic II,
Megane III, Fluence III in black plastic case on 95640
SRS RENESAS H8SX REPAIR UART CAN READ
For the iPROG PRO programmer!!!
Script for working with TOYOTA HONDA SUBARU SRS units on Renesas H8SX processors
Script Restores SRS ECU via UART when selecting the ECU number from the list.
Resetting the mileage to ZERO!
Included is a dump database, updatable.
You can also record any other dump by selecting the processor (R5F61721, 23, 25, 26, R5F61797)
Added a script via CAN (read only) for DENSO and FUJITSU units.
In order to read the flash if the corresponding number is not in the database.
SRS SKODA OKTAVIA A7 RH850 UART
For the iPROG PRO programmer!!!
Script “SRS SKODA OKTAVIA A7 RH850 UART” for working with SRS units in SKODA OKTAVIA A7 cars on RH850 processors.
The script reads, writes DATA FLASH of the processor via UART. Deletes CRASH DATA and non-erasable error B2000
Tested on units:
- 3Q0 959 655 BE
- 3Q0 959 655 BL
- 3Q0 959 655 CQ
- 3Q0 959 655 AK
SRS SKODA RAPID SPC560P50 JTAG
For iPROG PRO programmer!!!
SRS SKODA RAPID SPC560P50 JTAG
Reading and writing DATA FLASH,
Via JTAG interface
Built-in tracing for cleaning CRASH. DATA FLASH standard 64 kb
SRS Exeed TXL LX Infineon XC2xxx CRASH RESET
For iPROG PRO programmer !!!!
SRS Exeed TXL LX Infineon XC2xxx CRASH RESET.
Identification
Reading and erasing errors. (DTC)
Removing the crash data
A push-button proven solution.
Does not erase the configuration.
SUBARU BOSCH RH850 R7F701064 CRASH RESET
For the iPROG PRO programmer!!!
SUBARU_BOSCH_RH850_R7F701064_CRASH_RESET (push-button solution)
You can work on the car and on the bench.
Unit identification.
Reading errors (DTC).
Erasing errors (DTC). The unit allows you to delete errors in the car, provided that there is no CRASH and errors.
Erasing the collision event (CRASH).
SRS SUBARU RH850 UART
For iPROG PRO programmer!!!
SUBARU_SRS_RH850_UART
Reading and writing DATA FLASH of RH850 processor
Built-in CRASH cleaning calculator.
SRS SUZUKI Infineon XCxx SPC560 RH850 CAN
For iPROG PRO programmer!!!
SRS SUZUKI Infineon XCxxxx, SPC560, RH850 Erase Crash Data by OBDII (push-button solution)
Infineon XC2xx, SPC560, RH850.
Can be used on a car or on the bench.
SRS SUZUKI SPC560P50 JTAG
For iPROG PRO users !!!!
Script for reading and writing DATA FLASH.
Detects CRASH data and erases it. When reading, the DATA FLASH dump is standard 64 kb.
TOYOTA SRS Infineon TC23X JTAG
For iPROG PRO programmer!!!
Reading and writing DATA FLASH, via JTAG interface. A built-in calculator for cleaning CRASH.
Video
SRS VAG 561 959 655 SPC56AP54 JTAG
For iPROG PRO programmer!!!
Reading and writing DATA FLASH, via JTAG interface. Built-in tracing for CRASH cleaning.
DATA FLASH standard 64 kb.
VAG SRS VW3, VW5, VW51, VW52, VW61 by K-Line
For iPROG PRO programmer
The script reads and writes EEPROM of VAG airbag units – groups VW3, VW5, VW51, VW52, VW61 via K-Line
Built-in CRASH cleaning calculator
List of tested units (List is not complete)
- 6Q0 909 601
- 6Q0 909 601 C
- 1C0 909 601
- 1C0 909 605 K
- 6Q0 909 605 AH
- 6Q0 909 605 AN
- 377 909 603-A
- 1C0 909 605 C
HONDA SRS TRW EEPROM CRASH RESET CAN K-Line
For iPROG PRO programmer!!!
HONDA SRS TRW EEPROM CRASH RESET CAN K-Line (Push-button solution)
You can work on the car and on the bench if you use the crash reset command.
MCU Infineon AURIX TC22xx TC23xx UART
For iPROG PRO programmer!!!
The script reads and writes processor memory (FLASH, EEPROM)
TC22xx,TC23xx and similar via UART interface. Processors are found in SRS units Mazda, Ford, Toyota, KIA-Hyundai 2018+
JAECOO SRS R7F701042 CONTINENTAL CRASH RESET
For iPROG PRO programmer!!!
JAECOO SRS R7F701042 CONTINENTAL CRASH RESET!!!
Identification of the unit.
Reading and erasing errors. (DTC)
Erasing collision information. (CRASH)
KIA-HYUNDAI SRS 9S12DT128 K-Line
For the iPROG PRO programmer!!!
KIA-HYUNDAI SRS 9S12DT128 K-Line (push-button solution)
You can work on the car and on the bench if you use the crash reset command.
CAREFULLY follow the instructions!!!! The program will tell you everything.
VAG SRS CONTINENTAL RH850+95128 RESET B2000 C
For the iPROG PRO programmer!!!
Script VAG SRS CONTINENTAL RH850+95128 RESET B2000 CAN! Inside there is a bundle RH850+95128.
Identification of the unit.
Reading and erasing errors.
Reading in the parameters information about collisions.
Removing the non-erasable error B2000.
Sample list:
- 5Q0 959 655 AR
- 5Q0 959 655 AS
- 5Q0 959 655 AT
- 5Q0 959 655 BC
- 5Q0 959 655 BD
- 5Q0 959 655 BE
- 5Q0 959 655 BF
- 5Q0 959 655 BG
- 5Q0 959 655 BH
- 5Q0 959 655 BJ
- 5Q0 959 655 BK
- 5Q0 959 655 BM
- 5Q0 959 655 BN
- 5Q0 959 655 BP
- 5Q0 959 655 BQ
- 5Q0 959 655 BR
- 5Q0 959 655 B.S.
- 5Q0 959 655 BT
- 5Q0 959 655 CA
- 5Q0 959 655 CB
- 5Q0 959 655 CC
- 5Q0 959 655 CD
- 5Q0 959 655 CE
- 5Q0 959 655 CF
- 5Q0 959 655 CG
- 5Q0 959 655 CH
VAG SRS CONTINENTAL SPC560P50 CRASH COUN B2000 RESET CAN
For the iPROG PRO programmer!!!
- Identification of the unit.
- Reading and erasing errors. (DTC).
- Reading in the parameters information about collisions.(CRASH).
- Erasing in the parameters information about collisions.(CRASH).
- Erasing the non-erasable error B2000.
Approximate list ….
5Q0959655C
5Q0959655D
5Q0959655J
5Q0959655K
5Q0959655L
5Q0959655M
5Q0959655N
5Q0959655P
5Q0959655R
5Q0959655S
5Q0959655T
5QD959655A
5QD959655AA
5QD959655AB
5QD959655AE
5QD959655AG
5QD959655AJ
5QD959655AK
5QD959655AM
5QD959655B
5QD959655C
5QD959655D
5QD959655E
5QD959655G
5QD959655J
5QD959655L
5QD959655R
5QD959655S
5QD959655T
ZOTYE SRS Continental SPC560P40 CRASH RESET
Only for iPROG PRO programmer!!!
The script can:
- Identify the unit.
- Read errors (DTC).
- Erase errors (DTC).
- Delete the collision data (CRASH).
EWS-1, EWS-2, EWS-3, EWS-4 Writing PCF7935
The script is designed to write PCF7935 to immobilizer and change the mileage of EWS-1, EWS-2, EWS-3, EWS-4
Added key rolling, key blocking, reset to factory settings (i.e. make the block new) and ISN on EWS-3
Scripts work on dumps!!!
Immo Off for SsangYong ECU DELPHI 95160 95320
KIA HYUNDAI ME17.9.11(12) READ PIN CAN
For the iPROG PRO programmer!!!
The script reads pin from ME17.9.11(12), that have 46 keys registered
Works via the OBD connector.
Added reading of eeprom via CAN
Added ME17.9.13
MB ESL Unlock K-Line
For iPROG PRO programmer!!!
MB ESL Unlock
W202, W208, W210, W203, W209, W211, W219
NISSAN NATS-5 with ST K-Line
Script for immobilizer NISSAN NATS-5 on ST
For programmer iPROG PRO !!!!
Identifies the unit.
Reads and writes PIN
Reads three memory areas EEPROM, RAM, ROM
Writes EEPROM area
BMW EWS-3 0D46J K-Line
Script for reading and writing the BMW EWS-3 immobilizer unit on the 0D46J processor via K-Line
For the iPROG PRO programmer
Works with a regular K-Line adapter. A small modification is required. One 10-30 Ohm resistor and a jumper.
WARNING !!!!
This script only works on the original K-Line adapter.
MAZDA SRS Infineon Tricore TC23xx CAN
For the iPROG PRO programmer !!!!
The script reads and writes the EEPROM of the Infineon Tricore TC23xx AURIX processor via the CAN interface
Built-in crash erasing calculator.
VAG RH850 Continental Script Pack – extra script required
VAG NEC35 and VAG NEC34 are required.
VAG RH850 Continental script package:
1) Script for working with instrument panels on the RH850 processor from Continental (5A immo + odo, 5C odo, 5D odo)
To assemble the adapter you will need:
- Rasberry Pi Pico without a wi-fi module – 1pc
- IRLML2030TRPBF transistor – 1pc (but 5 is better since it can be easily killed by static)
- DB44 connector – 1pc
- Cables
VAG NEC35 Script Pack
VAG NEC35 script package:
1) a. Script for intravenous reading of the engineering key to the server from RuPolo panels (861 and similar on 3524)
b. Script for working via CAN with RuPolo panels (861 and similar on 3524)
2) Script for intravenous work with Continental panels on NEC35 processors
3) Script for intravenous work with JCI/Visteon panels on NEC35 processors
4) Calculator for generating CS 16 in engine blocks from CS12 instrument cluster
4) Calculator for generating KeySynchro from CS ECU, DSG, ELV and CS Instrument cluster (depending on the configuration). And also reverse generation is possible.
VAG NEC34 Script Pack – extra script required
VAG NEC35Â is required for this purchase.
VAG NEC34 script package:
1) Script for reading and writing locked processors
2) JCI/Visteon Nec3423 calculator + 95320 immo + odo
3) JCI/Visteon MQB Nec3426 calculator + 95128 immo + odo
4) Continental Nec3426 calculator + 24C64 SW > 2050
To assemble the adapter you will need:
- Rasberry Pi Pico without a wi-fi module – 1pc
- IRLML2030TRPBF transistor – 1pc (but 5 is better since it can be easily killed by static)
- DB44 connector – 1pc
- Cables
MCU MPC(SPC) MPC5605B, MPC5606B, MPC5607B + Keyless block dumps (KESSY MQB-B) on MCU MPC5605B.
Script for reading MCU MPC(SPC) MPC5605B, MPC5606B, MPC5607B via JTAG + Calculator for working with Keyless (KESSY MQB-B) block dumps on MCU MPC5605B. The script may also read other open MCUs based on Power PC.
Tested on:
- 3Q0 959 435 A
- 3Q0 959 435 B
- 3Q0 959 435 E
- 3Q0 959 435 G
- 3Q0 959 435 K
- 3Q0 959 435 L
- 3Q0 959 435 M
- 3Q0 959 435 N
- 3Q0 959 435 Q
Update VAG Continental 5D on RH850 processors (R7F7014XX) – extra script required
VAG RH850 Continental is required. As well as VAG NEC35 and VAG NEC34 are required.
Tested on panels:
- 5E3 920 770 A
- 5E3 920 770 B
Attention!!! The script is only for the IprogPro programmer!!! The script does NOT require internet!!!
The adapter is assembled independently.
Adapter:
- Rasberry Pi Pico without a wi-fi module – 1pc
- IRLML2030TRPBF transistor – 1pc (but 5 is better since it can be easily killed by static)
- DB44 connector – 1pc
- Cables
VAG panels: JCI D70F3423 + 95320, JCI D70F3426 + 95128, Continental D70F3426 + 24C64 – extra script required
Script package for working with VAG panels: JCI D70F3423 + 95320, JCI D70F3426 + 95128, Continental D70F3426 + 24C64
The script is only availabel if you have VAG NEC35!!!
The package consists of:
Script Reading/Writing NEC D70F342X (Reads Flash in encrypted form and writes accordingly)
- Calculator JCI D70F3423 + 95320 (Amarok 2H0920863F)
- Calculator JCI D70F3426 + 95128 (Octavia 5E0920851A)
- Calculator Continental D70F3426 + 24C64 (T6 SW> 2050)
Attention!!! The script is only for the IprogPro programmer!!! The script does NOT require internet!!!
The adapter assembly is done independently (The diagram and firmware will be sent individually to each purchaser)
Adapter:
- Rasberry Pi Pico without a wi-fi module – 1pc
- IRLML2030TRPBF transistor – 1pc (but 5 is better since it can be easily killed by static)
- DB44 connector – 1pc
- Wires
Update VAG (KeySynchro and 12 to 16) – extra script required
Update of the script package for working with VAG instrument panels.
Full VAG NEC35 is required.
The update consists of:
- The KeySynchro calculator script for working with immobilizer dumps (Continental and JCI) and a 32-byte key dump (KeySynchro).
- The CS 12byte to 16byte calculator script. It is used to convert CS 12 bytes in ruPolo boards to CS 16 bytes in MED17.5.26 engine units.
Attention!! The script is only for the IprogPro programmer!!!
Update VAG JCI/Visteon on NEC 70F35XX processors – extra script required
VAG NEC35Â Is required. Update of the script package for working with VAG JCI/Visteon instrument clusters on NEC 70F35XX processors.
The update consists of:
- Script for in-circuit reading/writing/editing.
Attention!! The script is only for the IprogPro programmer!!! The script needs the Internet!!!
- To work, first remove the panel.
- Lift one leg of the processor (be careful).
- Solder the adapter (Scheme in Help).
- Run the script.
- Click Read.
- Then check the validity of the read data.
- After all the changes, write the data back. If a server error pops up, perhaps such a panel is not in the database. Write to me in a personal message or Skype, I send a script for pulling out the necessary data.
- If everything is ok, put everything back together.
Update VAG Continental on NEC 70F35XX processors
Update of the script package for working with VAG Continental instrument panels on NEC 70F35XX processors.
The update consists of:
- Script for in-circuit reading/writing/editing.
Attention!! The script is only for the IprogPro programmer!!! Internet connection is required.
- To work, first remove the panel.
- Lift one leg of the processor (be careful).
- Solder the adapter (Scheme in Help).
- Run the script.
- Click Read.
- Then check the validity of the read data.
- After all the changes, write the data back. If a server error pops up, perhaps such a panel is not in the database. Write to me in a personal message or Skype, I send a script for pulling out the necessary data.
- If everything is ok, put everything back together.
VAG Ru Polo 861x on NEC 70F3524 processors Script Pack
Scripts package for working with VAG Ru Polo 861x instrument panels on NEC 70F3524 processors.
The package consists of:
- Script for in-circuit reading of access keys.
- Script for working with the instrument panel via OBDII.
Attention!! The script is only for the IprogPro programmer!!! Internet connection is required for working
Script for working with panels:
- 6RF920860Q SW 0152 HW H02
- 6RF920861 SW 0214 HW H01
- 6RF920861B SW 0215 HW H01
- 6RF920861C SW 0217 HW H01
- 6RU920861 SW 0218 HW H02
- 6RU920861 SW 0225 HW H02
- 6RF920862A SW 0215 HW H01
- 6RF920862B SW 0217 HW H01
Instructions:
- To work, first remove the panel.
- Lift one leg of the processor (be careful).
- Solder the adapter (Scheme in Help).
- Run the script.
- Click Read .
- If everything is OK, the script will write the number of the panel you are working with and the status of sending data to the server at the end.
- After that, we assemble the panel back, connect it to the table or to the car. And work via CAN.
After reading the access key once, you do not need to repeat this procedure anymore. The key is saved on our server.
VAG MM7 (Magneti Marelli) Motorola 9S12XHZ512
The script is designed to correct the mileage and work with the immobilizer data of VAG panels on Motorola 9S12XHZ512 processors from Magneti Marelli by OBDII.
Attention!! The script is only for the IprogPro programmer!!!
VAG MM7 (Magneti Marelli) Nec + 95320 by OBD
The script is designed to correct the mileage and work with the immobilizer data of VAG panels on NEC processors with EEprom 95320 from Magneti Marelli.
Attention!! The script is only for the IprogPro programmer!!!
VAG VISTEON TMS470 + 95320 by OBDll
The script is designed to correct the mileage and work with the immobilizer of VAG Visteon panels on TMS470 processors with EEprom 95320.
Porsche Macan by dump EEprom 95640
The script is designed to adjust the mileage of Porsche Macan Magneti Marelli panels using the EEprom 95640 dump.
Restrictions:
1) Internet connection
2) Saving changes twice a day
VAG NEC70F3524 RU POLO 6RF920860Q
Script for working with 6RF920860Q panels.
Polaris EEPROM25256 panels
Script calculator for working with Polaris EEprom25256 instrument panels. The script is designed to correct the mileage.
Attention!!! The script is only for the IprogPro programmer!!!
Dashboards MB W205 W447 W222 NEC35xx OBD2/CAN
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W205, W447, W253, W222 (LCD Dorest) from approximately 2013 to 2017, based on NEC3525(26) processors, via OBD2 in the car or via the CAN bus on a bench.
The mileage can be adjusted in these clusters either on the first versions from 2013-2014, but a filter will need to be installed (there is an active backup in the ignition switch), or if the cluster has already been patched.
If not and you want to patch it, you will need, for example, a script from Cardiag –Â Renesas V850E2 Locked, or another third-party programmer that can read and write locked NEC35xx data in clear text.
Read the EEprom via OBD and the version numbers. Remove the dashboard and disassemble it. Photos of the soldering points are included.
Afterwards, you’ll need a patched firmware for your dashboard. You can purchase it from me. After flashing the patched firmware and reassembling the dashboard, you need to flash the previously read EEprom.
Now you can edit the mileage on a computer via CAN or on the car via OBD. A filter is not required in this case.
It is recommended to use an OBDII cable with an MCP2515.
The script supports:
- Mileage reading and writing
- EEprom reading and writing
- Clearing all event records
- Clearing all Assist+ records
Dashboards YZK CMB N1 N2 N3 Peugeot Citroen
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Yazaki YZK CMB N1 N2 N3 instrument clusters in Peugeot, Citroen, and Toyota ProAce vehicles from 2016-2022 based on Renesas RL78 / Renesas RH850 and NEC35xx processors via the CAN bus on a desktop.
The script supports reading and writing mileage. The script DOES NOT WORK via the OBD2 port in the vehicle!!!
These vehicles have an active mileage backup. The script changes the mileage ONLY in the instrument cluster.
BSI Delphi Peugeot, Citroen, Toyota CAN, OBD2
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Delphi BSI units in Peugeot, Citroen, and Toyota ProAce vehicles from 2016-2020 via OBD2 (manual CAN switching to pins 3 and 8 of the OBD2 connector is required), or via CAN on a workbench.
The script supports reading and writing mileage.
Piaggio Vespa R5F100xxx One-Wire UART
Piaggio Vespa R5F100xxx One-Wire UART
- Supports Reading and writing for Rl78
- Adjust cluster for Piaggio Vespa
Scripts for Iprog Pro
Honda SRS R8C R5F2154AE
MCU R5F2154AE
Protocol UART
Support With File Original
- 77960-T9A-F411-M2
- 77960-T9A-H410-M2
- 77960-TG4-P110-M2
Support Iprog Pro
Fieldking 2023+ Chang Hours (R5F10TPJL)
Fujitsu_Spansion script pack CMU ODO
Fujitsu + Spansion script pack CMU ODO MB91xx
***Honda HRV MB91F062BS Read/Write UART
***Honda Brio MB91F061BS Read/Write UART
***Honda City MB91F061BS Read/Write UART
***Vezel 2014+MB91F060BS Read/Write UART
***Jade 2014+MB91F060BS Read/Write UART
***Rondo MB91F067BS Read/Write UART
***Sedona MB91F067BS Read/Write UART
***Soluto MB91F067BS Read/Write UART
***Morning MB91F061BS Read/Write UART
***K3 MB91F061BS Read/Write UART
***Canival MB91F061BS Read/Write UART
***Picanto MB91F061BS Read/Write UART
***Cerato MB91F061BS Read/Write UART
***Cerato MB91F067BS Read/Write UART
***Santafe MB91F061BS Read/Write UART
***Elantra MB91F061BS Read/Write UART
***Elantra MB91F067BS Read/Write UART
***Elantra 2022+ CY91F061BS (DNKR) Read/Write UART
***Elantra 2023+ CY91F061BS (DNKR)Read/Write UART
***Avanza MB91F061BS Read/Write UART
***Fortuner MB91F061BS Read/Write UART
***Fortuner MB91F060BS Read/Write UART
***Innova MB91F061BS Read/Write UART
***Innova MB91F060BS Read/Write UART
***Hilux MB91F060BS Read/Write UART
***Rush MB91F060BS Read/Write UART
***Vios MB91F060BS Read/Write UART
***Vios MB91F061BS Read/Write UART
***Wigo MB91F060BS Read/Write UART
***Suzuki Hustler MB91F061BS Read/Write UART
***SuzukiJimmy MB91F061BS Read/Write UART
***Ioniq Hybrid 2022+ CY91F061BS (DNKR) Read/Write UART
***Santafe 2020+CY91F062BS Read/Write UART
***Santafe 2015+MB91F067CS Read/Write UART
***Sonata 2017+MB91F062BS Read/Write UART
***Yaris MB91F060BS Read/Write UART
***Soul 2019+MB91F061BS Read/Write UART
***Rondo 2020+MB91F062BS Read/Write UART
***VF34 S6J328CKSP(UART) Read/Write UART
***Kona 2018+ S6J300BKSE Read/Write UART
***Camry 2018+ V70 Denso S6J3001LSJ Read/Write UART
***Corolla Altis 2021+Denso S6J3001LSJ Read/Write UART
***Cross 2021+Denso S6J3001LSJ Read/Write UART
***RAV4Â 2021+Denso S6J3001LSJ Read/Write UART
***Veloz 2021+Denso S6J3001LSJ Read/Write UART
***Lexus LSÂ 2021+Denso S6J3001LSJ Read/Write UART
***Accord 2018+Denso S6J3001LSJ Read/Write UART
***Raizer 2021+Denso S6J3001LSJ Read/Write UART
***Palisade 2021+ S6J332EJTD Read/Write UART
***Lexus Es250Â 2018+Denso S6J3001LSJ Read/Write UART
***Hiace 2021+Denso S6J3001LSJ Read/Write UART
***HRV 2022+Denso S6J300YLSM Read/Write UART
***Crown 2018+Denso S6J3001LSJ Read/Write UART
***Venzel 2022+Denso S6J300YLSM Read/Write UART
***Yaris Cross 2024+ Denso S6J3001LSJ Read/Write UART
***Yaris Cross 2021+ Denso S6J3001LSJ Read/Write UART
***Highlander Hybrid 2021+Denso S6J3001LSJ Read/Write UART
***City 2022+Denso S6J300YLSM Read/Write UART
*** Fujitsu MB91Fxxx
-MB91F038
-MB91F047
-MB91F59A
-MB91F59B
-MB91F060
-MB91F061
-MB91F062
-MB91F067
-MB91F522
-MB91F523
-MB91F524
-MB91F525
-MB91F526
-MB91F527
-MB91F528
-MB91F575
-MB91F577
-MB91F578
-MB91F579
-MB91F591
-MB91F592
-MB91F594
-MB91F596
-MB91F597
-MB91F599
-MB91F058
-MB96F6A6R Lock chip and supprot some cluster unlock
*** S6J3_Traveo
-S6J3001LSJ
-S6J300BKSE
-S6J311AHAA
-S6J311BHAB
-S6J311BHBB
-S6J311BJAB
-S6J311BJBB
-S6J311CHAB
-S6J311CHBB
-S6J311CJAB
-S6J311CJBB
-S6J311DHAB
-S6J311DHBB
-S6J311DJAB
-S6J311DJBB
-S6J311EHAA
-S6J311EHAB
-S6J311EHBB
-S6J311EJAA
-S6J311EJAB
-S6J311EJBB
-S6J312AHAA
-S6J320CQXA
-S6J323C
-S6J324C
-S6J324CKS
-S6J324CLS
-S6J325C
-S6J326C
-S6J326CKS
-S6J326CLS
-S6J327C
-S6J328C
-S6J328CKSP
-S6J329CKS
-S6J329CLS
-S6J32A9
-S6J32AA
-S6J32B9
-S6J32BA
-S6J32C9
-S6J32CA
-S6J32D9
-S6J32DA
-S6J331E
-S6J336A
-S6J33xBxxx
-S6J33xCxxx
-S6J33xDxxx
-S6J33xExxx
Xsr900 R5Fxxx scripts
Kia Hyundai NEC D70F3524 V850E 2021+ OBD2
Support Unlock Flash no Path Flash
– Accent 2021+V850 Continental D70F3524 OBD2 Support Unlock not Path Flash
– Rio 2021+V850 Continental D70F3524 OBD2 Support Unlock not Path Flash
Kia Hyundai RH850 2021+ OBD2
Support Unlock Flash no Path Flash
— Accent 2021+ RH850 Continental R7F701418 OBD2 Support Unlock not Path Flash
— Accent 2023+ RH850 Continental R7F701421 OBD2 Support Unlock not Path Flash
— Sorento 2022+ RH850 Continental R7F701414 OBD2 Support Unlock not Path Flash
— Sorento 2021+ RH850 R7F701422 Continental OBD2 Support Unlock not Path Flash
— K5 2021+Full LCD RH850 R7F701414 Continental OBD2 OBD2 Support Unlock not Path Flash
— K5 2021+ RH850 Continental R7F701418 OBD2 OBD2 Support Unlock not Path Flash
— Rio 2021+ RH850 SuperVision OBD2 OBD2 Support Unlock not Path Flash
— Sorento MQ4 2021+ RH850 OBD2 Support Unlock not Path Flash
— Palisade Lx2 FE 2022+ RH850 OBD2 Support Unlock not Path Flash
— Palisade Full LCD 2022+ RH850 OBD2 Support Unlock not Path Flash
— Solaris 2021+ RH850 SuperVision OBD2 Support Unlock not Path Flash
— Sonata DN8 2022+ RH850 OBD2 Support Unlock not Path Flash
— Sonata Lx2 FE 2022+ RH850 OBD2 Support Unlock not Path Flash
— Stargazer 2023+ RH850 Continental R7F701421 OBD2
Kia Hyundai Infineon XC23xx Clear Crash OBD2
Kia Hyundai Tricore TC23xx Clear Crash OBD2
Mazda Infineon XC2361A Clear Crash OBD2
Mazda Tricore TC23xx Clear Crash OBD2
Ford 2022+ Encrypted(24C64) Scripts
Ford 2022+ Encrypted(24C64) Scripts Iprog Pro
Support with Smart EEPROM
***Ford 2022+ Big LCD Encrypted(24C64) Read/Writer Smart EEPROM
***Ford 2022+Small LCD Encrypted(24C64)) Read/Writer Smart EEPROM
***Ford Mustang Big LCD Encrypted(24C64) Read/Writer Smart EEPROM
-Support File Orginal
K200 K250 2016+ V850E+ 24C16 Lock OBD2
Support car list only Ipro Pro
K200 2016+ D70F3421GJ(A) + 24C16 Lock
Santafe 2022+ Mobis (FS32K146) OBD2
Working with Iprog Pro + Smart CAN (Only Test On MPC2526)
read and Write EEPROM
Adjust Cluster ODO Function
Language English- Vietnamese
GEELY EMGRAND – OBDII
A script for IProg Pro and IProg+. The scripts are different. The functions are the same. When ordering, please specify which programmer you need the script for!
Script for repairing mileage via the GEELY EMGRAND OBD connector
Works via the CAN bus. It is possible to read and write mileage via the dashboard connector itself.
Cars with these dashboards were produced from 2009 to almost 2012-2013.
The dashboards are based on NEC K0 (uPD78F0828) series controllers.
The following functions are available:
- Reading and writing mileage,
- Reading and writing EEPROM.
- Dumps are displayed in a HEX editor.
Important!
The script only works with dashboards of the type shown on the script’s splash screen. That is, with a gray overlay.
CHERY – OBDII
Only for IProg PRO!
A script package for OBD2 instrument cluster adjustments for the following cars: CHERY AMULET A15, CHERY QQ S11, CHERY TIGGO T11, CHERY TIGGO T11FL, CHERY KIMO S12, CHERY FORA A21 (VORTEX ESTINA), CHERY INDIS S18D. These scripts are from the old package. New cars have also been added: CHERY BONUS A13, CHERY M11, CHERY EASTAR B11, CHERY EASTAR CROSS B14 (these protocols are not available anywhere yet!). These cars were produced between 2003 and 2012-2014. The panels are based on NEC K0 series controllers. Operation is carried out either via the OBD connector or through the instrument cluster connector.
Great Wall Hover odometer via OBDII
A script for OBD2 instrument cluster adjustments for GREAT WALL HOVER H3, H5, and M4 vehicles. These vehicles were produced between 2009 and 2016. The clusters are based on NEC (Renesas) controllers. Operation is performed either via the OBD port or the instrument cluster connector.
Subaru Impreza/XV/Crosstrek (MB91F579+93C86)
Attention!! Script for the IprogPro programmer only!!!
This script corrects mileage in Subaru Impreza/XV/Crosstrek NS instrument clusters based on the Fujitsu MB91F579CHS microcontroller and an external 93C86 (MSOP8) EEPROM. The script was created to make working with these clusters easier. These clusters not only have an MSOP8 EEPROM located on the arrow-side of the cluster, but they also feature the unpopular Mazda-style arrows, which are best avoided without a special arrow puller. While it’s possible to connect to the EEPROM in-circuit (vias are present on the board), reading the EEPROM in-circuit is very difficult and intermittent. Because of this, a script was created that works with the EEPROM via the MB91F579CHS processor.
The script supports EEPROM reading and writing and has a built-in mileage calculator. The dashboard is accessed via points on the back of the printed circuit board.
Lada Remote Key
A script for programming remote controls directly into the driver’s door module or the “Norma” power package in LADA Priora, Priora 2, Kalina, Kalina 2, and Granta vehicles.
This script allows you to program remote controls into cars with a disabled or faulty immobilizer, or without a learning key.
Connect iProgPro directly to the modules via a K-Line adapter. To use the script, you will need an RFID adapter and a radio module.
A radio module based on the CC1101 chip (the module costs $2-3 on AliExpress). You can program both new, untrained and used remote controls.
Reset Key UAZ
“Reset Key UAZ” script.
UAZ keys can be reset to new condition using a PCF7941-61. Or VAZ keys can be rewritten to a UAZ.
MMT Toyota
For iProgPro only!!!
A script for reading and writing the flash of closed M30833FJVGP processors in Toyota Corolla, Auris, and Yaris MMT units.
You can convert the oldest revision of the unit to the latest (there are no CUW updates for these units).
You can convert a Corolla unit to a Yaris unit (the Yaris units are more expensive). The units are identical in hardware, but the firmware is different, so the operating algorithm is also different.
There are no firmware updates in the script!!!
MMT Toyota
For iProgPro only!!!
A script for reading and writing the flash of closed M30833FJVGP processors in Toyota Corolla, Auris, and Yaris MMT units.
You can convert the oldest revision of the unit to the latest (there are no CUW updates for these units).
You can convert a Corolla unit to a Yaris unit (the Yaris units are more expensive). The units are identical in hardware, but the firmware is different, so the operating algorithm is also different.
There are no firmware updates in the script!!!
Dashboard MB LCD 205 213 222 463 RH850 OBD2
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W205 (LCD), W213 (Arrow), W213 (LCD), W222 (LCD), W463 (LCD) from approximately 2018 to 2021, based on R7F701414 (Locked) processors, via OBD2 in the car or via the CAN bus on the bench.
This script works without any preparation or patching! No need to remove the panel or work with the processor! The processor in these panels is protected.
Simply connect, do what you need to, and disconnect.
After editing, a filter between the lock and the panel is not needed!
The script also supports already patched panels and operates on them using a different algorithm.
If you still want to patch the dashboard yourself, you can use a third-party programmer to read and write the firmware as usual, and you can purchase it from me.
It’s recommended to use an OBDII cable with an MCP2515.
The script supports:
Odometer reading and writing
EEprom reading and writing
Delete all event records
Assist+ reading, editing, and writing. You can write a maximum of 15 services.
Virginize
Dashboard MB LCD 205 213 222 463 NEC35xx OBD2
Attention!! Script for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W205 (LCD), W213 (Strelka), W213 (LCD), W222 (LCD Rest), W463 (LCD) from approximately 2015 to 2018, based on NEC3525(26) processors, via OBD2 in the car or via the CAN bus on the bench.
This script works without any preparation or patching! No need to remove the panel or manipulate the processor!
Simply connect, do what’s needed, and disconnect.
After editing, a filter between the lock and the panel is no longer needed!
Those who have worked with these panels know well that the processor in these panels is often protected from erasure. Therefore, when patching it intravenously, the processor had to be replaced with a new one.
This script solves this problem and works via OBD2.
The script also supports working with already patched dashboards. If you still want to patch it yourself, you can also read and write the firmware using a third-party program, and you can purchase the firmware from me.
It is recommended to use an OBDII cable with an MCP2515.
The script supports:
Odometer reading and writing
EEprom reading and writing
Delete all event records
Assist+ reading, editing, and writing. You can write a maximum of 15 services.
Virginize – Create a new dashboard
Learn Dash – Learn the dashboard
Programming BSI Delphi Peugeot, Citroen, Toyota
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Delphi BSI units in Peugeot, Citroen, and Toyota ProAce vehicles from 2016-2020 via OBD2 (manual CAN switching to pins 3 and 8 of the OBD2 connector is required), or via CAN on a workbench.
The script supports reading and writing mileage.
Dashboards MB W213 NEC35xx OBD2/CAN
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W213 (arrow) from approximately 2015 to 2018, based on NEC3525(26) processors, via OBD2 in the car or via CAN bus on a bench.
To edit the mileage with this script, these dashboards need to be patched. For this, you’ll need, for example, a script from Cardiag –Â Renesas V850E2 Locked, or another third-party programmer capable of reading and writing locked NEC35xx data in clear text.
Read the EEprom data via OBD and version numbers (or via CAN bus on a bench). Remove the dashboard and disassemble it.
After that, you’ll need patched firmware for your dashboard. You can purchase the firmware from me. After flashing the patched firmware and assembling the dashboard, you need to flash the previously read EEprom.
Now you can edit the mileage on the dashboard via CAN or on the car via OBD; installing a filter is not required in this case.
It is recommended to use an OBDII cable with an MCP2515.
The script supports:
Reading and writing (after patching) mileage
Reading and writing (after patching) EEprom
Deleting all event records
Deleting all Assist+ records
Reading, editing, and writing (after patching) Assist+
A maximum of 15 services can be flashed.
Programming Dashboards Ford Ranger RH850 OBD2
Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Ford Ranger Continental/VDO instrument clusters from approximately 2020 onwards, based on Renesas RH850 (R7F701405) processors, via OBD2 in the vehicle or via the CAN bus on a bench. (The instrument cluster tested was from 2022.)
The script supports reading and writing mileage.
SRS TOYOTA RH850 R7F710Axxx
SRS TOYOTA RH850 R7F710Axxx
Wigo
RUSH
- 89170-BZ350
- 89170-BZ550
- 89170-Bz680
Toyota/Lexus: ECU configuration reset and adaptation for vehicle configuration via CAN online
Erasing the errors:
- U130C57 Software Incompatibility with Image Processing Module “A” Invalid / Incompatible Software Component
- U030057 Internal Control Module Software Incompatibility Invalid / Incompatible Software Component
- B2456 Left Headlight ECU Variation Error
- and similar ones
The script is useful when installing a unit from a different region/vehicle given that the unit supports the required version. The script pack includes the following units:
- AFS (aluminum sealed, with locked processors, usually single-lens or reflectory)
- AFS (disassemblable with eprom, three or four lens without eprom removal)
- AFS (disassemblable without eprom with locked processors, three or four lens)
- AFS (2023+, have some issues, not included in the pack)
- Front Radar Sensor denso (2018-2022)
- Front Radar Sensor denso (2021-2025 have some issues, not included in the pack)
- Front Radar Sensor continental (2018-2022)
- Front Recognition Camera denso (2016-2019)
- Front Recognition Camera denso (2018-2022)
- Front Recognition Camera continental (2018-2022)
- Lane Control
- Pre Collision
- Front Recognition Camera Lighting Control (it has options to switch from AHB to AHS for intelligent lighting activation if the vehicles supports it)
- BSM master (2016-2019)
- BSM slave (2016-2019)
- BSM master A (2018-2024)
- BSM slave B (2018-2024)
- Front Side radar master (2021+ have some issues, not included in the pack)
- Front Side radar slave(2021+ have some issues, not included in the pack)
- Radar Cruise2
- Front Bsm Radar – as is, no support
- Start/stop – as is, no support
VTS Disabling in Porsche
Warning:Â Script for iPROG PRO only!
This script software disables the built-in VTS (VEHICLE TRACKING SYSTEM, also known as COBRA) anti-theft system for Porsche vehicles, circa 2014-2018. The script only works with dumps of both BCMs (front and rear), changing the vehicle’s configuration.
This problem is familiar to many owners: due to a Cobra module failure or after installing a used rear BCM with the VTS system, the car won’t start. Errors will be reported for the front BCM 80530F (start inhibit) and the rear BCM 805108 (authorization error). The standard dealer solution is an expensive module replacement with online linking or very expensive online reprogramming.
This script is designed for users who are familiar with and know how to properly work with Motorola’s proprietary processors. The script only works with dumps, i.e., it functions as a dump calculator.
Before installing ready-made units on a car, you need to disable COBRA (VTS), that is, the script excludes it from the package (VEHICLE TRACKING SYSTEM), which is often located under the rear seat or on the floor of the luggage compartment under a metal cover with shear nuts.
RENAULT_EPAS_NSK
FOR IPROGPRO PROGRAMMER ONLY!
This script supports reading CAN data from Renault vehicles’ EPAS NSK (ELECTRIC POWER STEERING) units, CLEANING THE IMMO CODE, CHANGING AND RESETTING THE VIN, AND CLEARING ERRORS IN THE EPSU UNIT. The script automatically detects whether the unit is clean or not.
After clearing the immobilizer code and changing the VIN using the used unit script, the immobilizer code from the car is automatically programmed into the unit after the ignition is turned on.
Third-Party Software Scripts from CardiagÂ
Volvo CAN Dashboard 1998-2007 (CAN-BUS)
This script allows to read/write EEPROM, read/write FLASH of Motorola MCU in Volvo dashboards via CAN-bus. The script has the built-in mileage calculator. Automatic recognition of dashboard type  (5 types of dashboard supported). Script support work with dashboard “on a table”, and through OBDII.
The list of the supported dashboards:
Volvo S80 1999-2000 with HC08 1H56A MCU (only EEPROM);
Volvo S60, V70, S80 2000-2001 HC912 4F73K MCU;
Volvo S60, V70, S80, XC70, XC90 2001-2004 HC912 3K91D MCU;
Volvo S40, V40, S50, S60, V70, S80, XC90 2004-2007 9S12 0L85D MCU;
Volvo V50, C30, 40, 50 2007+ 9S12 3L16Y MCU;
Video of script work
Hyundai/Kia MB91F06x OBD2
The script works only at IprogPro!!!!
This script allows to write mileage in Kia/Hyundai dashboards with MB91F061, MB91F062, MB91F067 MCU via OBD2 (CAN-bus). Automatic recognition of dashboard MCU and save readed Flash in backup folder. Script support work with dashboard “on the bench”, and through OBD2.
Suzuki Hustler, Jimny, Wagon-R MB91F061BS OBD2
This script allows to write mileage in Suzuki MB91F061BS OBD2 (CAN-BUS).
Script work with the dashboards through OBD2.
During the work the script automatically recognize dashboard type.
The script has Recovery function if panel is dead. The flash files in script folder is necessary for recovery.
Approximate list of cars:
Suzuki Hustler, Jimny, Wagon-R
Honda MB91F061BS, MB91F060BS OBD2
The script works only at IprogPro!!!!
This script allows to write mileage in Honda MB91F061BS, MB91F060BS OBD2 (CAN-BUS).
Script work with the dashboards only through OBD2.
The script has Recovery function if panel is dead. The backup file readed durning the work is necessary for recovery.
Approximate list of cars:
Honda FIT, Honda FIT Hybrid, Honda Vezel, Honda HRV
Video of script work with MB91F061BS (time of script work is 3.5 min)
Video of script work with MB91F060BS (time of script work is 7 min)
Ford OBD2
This script allows to write mileage in Ford OBD2 (CAN-BUS). Script work with the dashboards only via OBD2.
List of supported cars:
- Bantam (NEC+24c16) Read/Write KM
2. Ecosport 2013+ (MC9S12XEQ384) Read/Write EEPROM, Read/Write KM
3. Expedition 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
4. Explorer 2011+ (NEC+93C86+2xLCD) Read/Write KM
5. Explorer 2015+ V1 (SPC5606S+93C86+2xLCD) Denso Read/Write KM
6. Explorer 2015+ V2 (SPC5606S+93C86+2xLCD) Denso Read/Write KM
7. F150 2013+ (MPC5604S+24C32) Read/Write KM
8. F150 2015+ (MPC5606S+24C32) Read/Write KM
9. Fiesta 2006+ (MC9S12H256) Read/Write EEPROM, Read/Write KM
10. Fiesta 2008+ (MC9S12HZ256) Read/Write EEPROM, Read/Write KM
11. Fiesta 2013+ (MC9S12XEQ384) Read/Write EEPROM, Read/Write KM
12. Figo 2015+ V1 (R5F10DPJJ) Read/Write KM
13. Figo 2015+ V2 (R5F10DPJJ) Read/Write KM
14. Figo 2017+ (R5F10DPJJ) Read/Write KM
15. Focus 2 2005+ (MC9S12H256) Read/Write EEPROM, Read/Write KM
16. Focus 2 2008+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
17. Focus 2 2008+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
18. Focus 3 2011+ (NEC+95320) Read/Write KM
19. Fusion 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
20. Fusion 2015+ (SPC5606S+93C86+2xLCD) HYBRID Denso Read/Write KM
21. Galaxy 2006+ Lo (MC9S12H256) Read/Write EEPROM, Read/Write KM
22. Galaxy 2010+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
23. Galaxy 2010+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
24. Galaxy Convers+ (MAC7116+24C16) Read/Write KM
25. KA 2015+ V1 (R5F10DPJJ) Read/Write KM
26. KA 2015+ V2 (R5F10DPJJ) Read/Write KM
27. KA 2017+ (R5F10DPJJ) Read/Write KM
28. Kuga 2008+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
29. Kuga 2008+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
30. Kuga 2 2013+ (MPC5606S+24C32) Read/Write KM
31. Kuga 2 2013+ (MPC5645S+24C32) Read/Write KM
32. Mondeo 2007+ Lo (MC9S12H256) Read/Write EEPROM, Read/Write KM
33. Mondeo 2010+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
34. Mondeo 2010+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
35. Mondeo Convers+ (MAC7116+24C16) Read/Write KM
36. Mondeo 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
37. Mondeo 2015+ (SPC5606S+24C32) Visteon Read/Write KM
38. Mondeo 2015+ (SPC5606S+93C86+2xLCD) HYBRID Denso Read/Write KM
39. Mustang 2015+ Read/Write KM
40. Ranger 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
41. Ranger 2015+ (SPC5645S+93C86+2xLCD) Denso Read/Write KM
42. Transit 2006+ (NEC 70F3325+93C76) Write KM
43. Transit 2009+ (NEC 70F3421+93C76) Write KM
44. Transit 2011+ (NEC+95320) Read/Write KM
45. C-Max 2015+ HYBRID (SPC5606S+93C86+2xLCD) Denso Read/Write KM
46. F150 2010+ (TMS470+24C16) Read/Write KM
47. F250 2011+ (MB91F037+93C86) Read/Write KM
48. Focus EV 2013+ (SPC5606S+93C86+2xLCD) Denso Read/Write KM
49. Fusion USA 2011+ (NEC3423+93C86+2xLCD) Read/Write KM
50. Lincoln MKZ 2011+ (NEC3423+93C86+2xLCD) Read/Write KM
51. Lincoln MKZ 2015+ (SPC5606S+93C86+2xLCD) Denso Read/Write KM
52. Mustang 2010+ (TMS470+24C16) Read/Write KM
53. Mustang 2013+ (SPC5606S+24C32) Read/Write KM
54. Transit MK8 2016+ (NEC70F3525) Read/Write KM
Mazda Calsonic Kansei 93c86 OBD2
A package of scripts for working with Mazda 2, 6, CX-3, CX-5, CX-9 and Scion IA instrument panels by Calsonic Kansei.
The scripts work via the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench.
The package includes:
- Mazda2_CX3_(Scion_IA)_93C86_OBD2 script. Supported cars:
- Mazda 2 (93c86) 2016
- Mazda CX-3 (93c86) 2018
- Scion IA (93c86) 2016
- Mazda6_CX5_CX9_93C86_OBD2 script. Supported cars:
- Mazda 6 Color Display (93c86) 2016+
- Mazda CX-5 Color Display (93c86) 2016+
- Mazda CX-9 Color Display (93c86) 2016+
Subaru 2015+ (NEC 70F3529) OBD2 (CAN-BUS)
The script is only for the IprogPro programmer!!!
Script for correcting mileage in dashboards of Subaru Legacy/Outback 2015+ cars made on NEC uPD70F3529 microcontroller.
The script supports reading / writing EEPROM, read FLASH,  have mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
Fujitsu_Spansion script pack
Script package for working with Fujitsu/Cypress/Spansion microcontrollers
The scripts work only on IprogPro.
1)Â Denso S6J3001LSJ 2018+Â (Toyota Camry V70, RAV4, Corolla, Altis, Lexus LS, Honda Accord, Hyundai Kona, Hyundai Kona Electric)
This script allows you to adjust the mileage of Denso panels with MCU S6J3001LSJ in Toyota Camry V70, RAV4, Corolla, Altis, Lexus LS, Honda Accord, Hyundai Kona, Hyundai Kona Electric (UART) cars.
The script reads/writes the WorkFlash dump, the built-in calculator automatically determines the mileage.
2)Â HONDA HYUNDAI KIA TOYOTA SUZUKI MB91F06X
This script allows you to adjust the mileage of the panels:
Honda FIT/Jazz/HRV Hybrid 2015- MB91F060BS
Honda FIT/Jazz/HRV 2014- MB91F061BS
Kia Picanto/Carens/Carnival/Ceed/Cerato MB91F061BS
Hyundai I30/I40/Tucson/SantaFe MB91F062BS
KIA Sorento MB91F067BS
Toyota RAV4 MB91F060BS 2015-
Toyota Avanza/Veloz/Innova MB91F061BS 2015-
SUZUKI Hustler/Jimny MB91F061BS 2015-
3)Â Toyota MB96F0xx
This script allows you to adjust the mileage of Toyota/Perodua panels with MCU MB96F001YB, MB96F016YB
4)Â MB91Fxxx
Scripts for reading/writing Fujitsu MB91F0xx microcontrollers
Supported microcontrollers:
MB91F011, MB91F013, MB91F016, MB91F037, MB91F038, MB91F047, MB91F058, MB91F59A, MB91F59B, MB91F060, MB91F061, MB91F062, MB91F067, MB91F526, MB91F575, MB91F57, MB91F578, MB91F579, MB91F591, MB91F592, MB91F594, MB91F596, MB91F597, MB91F599
5)Â MB90Fxxx
Scripts for reading/writing Fujitsu MB90F0xx microcontrollers
Supported microcontrollers:
MB90F020, MB90F022, MB90F025, MB90F026, MB90F035, MB90F394H, MB90F395H, MB90F423GA_GC, MB90F427GA_GC, MB90F428GA_GC, MB90F922, MB90F931, MB90F946, MB90F947, MB90F949
6)Â MB96Fxxx
Scripts for reading/writing Fujitsu MB96Fxxx microcontrollers
Supported microcontrollers:
MB96F001YB, MB96F6A5A_R, MB96F6A6R, MB96F6B5A_R, MB96F6B6R, MB96F6C5A_R, MB96F6C6R, MB96F016YB, MB96F119RB, MB96F313A_R_Y, MB96F315A_R_Y, MB96F326A_R_Y, MB96F346A_R_Y, MB96F347A_R_Y, MB96F356A_R_Y, MB96F385R_Y, MB96F386R_Y, MB96F387R_Y, MB96F613A_R, MB96F615A_R, MB96F657R, MB96F673A_R, MB96F675A_R, MB96F683A_R, MB96F685A_R, MB96F693A_R, MB96F695A_R, MB96F696R
7)Â S6J_Traveo
Scripts for reading/writing Spansion S6J microcontrollers
Supported microcontrollers:
S6J32A9_B9_C9_D9, S6J32AA_BA_CA_DA, S6J300BKSE, S6J311AHAA, S6J311BJAB_BHAB_BJBB_BHBB, S6J311CJAB_CHAB_CJBB_CHBB, S6J311DJAB_DHAB_DJBB_DHBB, S6J311EJAA_EHAA, S6J311EJAB_EHAB_EJBB_EHBB, S6J312AHAA, S6J320CQXA, S6J323C_4C_5C_6C_7C_8C, S6J324CLS_CKS, S6J326CLS_CKS, S6J329CLS_CKS, S6J3001LSJ, S6J331, S6J332, S6J334
Mitsubishi Denso ECU SH7058 SH7059 (CAN-BUS)
The script works only at IprogPro.
Script for mileage correction in diesel Mitsubishi engine control units (ECU) maded on SH7058, SH7059, R4F70580, R4F70590 MCU’s.
Supports reading/writing of external EEPROM(93C86) and Flash of the microcontroller, has the built-in mileage calculator.
Script does not calculating checksums so be careful with the write Flash, checksums must be calculated in advance.
Suzuki NEC35xx + NEC_24C16 OBD2 (CAN-BUS)
The script works only at IprogPro.
Script allows to write mileage in Suzuki dashboards VDO/Continental with MCU NEC70F35xx without external eeprom and NEC70F3421(22)+24С16.
Script reading/writing full dump EEPROM, internal calculator automatically recognize mileage. Script work through OBD2 (CAN-BUS).
List of supported cars:
Grand Vitara (NEC70F3422+24C16)
Kizashi (NEC70F3422+24C16)
SX4 (NEC70F3421+24C16)
Swift (NEC70F3421+24C16)
Swift Monochrome 2017+ (NEC70F3524)
Swift Colour 2017+ (NEC70F3529)
Maruti Swift Monochrome 2017+ (NEC70F3524)
Maruti Ertiga (NEC70F3422+24C16)
GAZ, MAZ, UAZ, KAMAZ, URAL MB96F693(696)RB
Scripts work only on IprogPro.
A package of scripts for mileage correction in GAZ, MAZ, UAZ, KAMAZ, URAL instrument clusters based on MB96F693(696)RB and MB96F673AB processors.
The scripts support reading/writing the full memory capacity of the microcontroller and have a built-in mileage calculator. The scripts work in-circuit via the service connector of the cluster.
Video of the script in action
Update 1: a script for 2015 clusters has been added, an additional script for 2016 has been added (different mileage addressing), the algorithm for determining mileage and cluster versions has been improved.
Update 2: added scripts for UAZ Patriot dashboards on MB96F693/696RB version 3, GAZ Volga on MB96F696AB, MAZ8090-4 on MB96F973AB version 2.
Update 3: added scripts for MAZ, UAZ, KAMAZ, LIAZ (8090,-x 8160-x) dashboards. Added scripts for working with MB96F6xx processors.
Update 4: added script for UAZ Patriot 2017+ dashboards with blue display and locked processor.
Toyota VDO Continental OBD2 (CAN-BUS)
The script works only at IprogPro!!!!
Scripts package for change mileage in Toyota Camry V70 2018 Continental R7F701406; Toyota Corolla/Auris/CH-R/Tacoma 70F3535; Toyota Corolla/Auris NEC+24C16Â Â dashboards .
Scripts reading/writing full dump EEPROM, internal calculator automatically recognize mileage. Scripts work through OBD2 (CAN-BUS).
Video of script working
Renault Logan2/Duster2 9S12XHY256 + ABS OBD2
The script works only with IprogPro!!!!
Script for change mileage in Renault Logan2/Duster2, Renault Kaptur/Captur/Clio4, Lada X-Ray, Nissan Terrano 3 Visteon dashboards with MCU Freescale 9S12XHY256.
Script support reading/writing mileage, reading/writing FLASH. The script has Patch and Unpatch function. Script work through OBD2 (CAN-BUS).
Added Renault BOSCH ABS/ESP by OBD2. Supports automatic EEPROM detection (95320, 95640, 95128). Read/Write EEPROM, set 0km in ABS.
Video of updated script work
Attention!!!! The following ABS are not supported:
0265 261 127
0265 243 681
0265 245 742
Renault Megane3/Fluence MB96F386(387)+95160 & Megane3/Fluence NEC+24C16 OBD2(CAN-BUS)
The script works only with IprogPro!!!!
Script for changing mileage in Renault Megane3/Fluence dashboards with MB96F386(387)+95160 and NEC70F3424+24C16
Script supports reading/writing EEPROM, reading/writing FLASH, internal calculator automatically recognizes mileage. the script hasPatch and Unpatch functions. Works via OBD2 (CAN-BUS).
Renesas RH850 (R7F701xxxx, R7F7010xx, R7F7014xx, R7F7015xx, R7F7016xx) UART
The script works only with IprogPro!!!!
The scripts support reading/writing CodeFlash and DataFlash of Renesas RH850 microcontrollers (R7F7010xxxx) via UART. When reading DataFlash, the scripts also create a DataFlash map (MAP) which is useful when analyzing a dump or writing DataFlash back to the microcontroller.
The list of supported microcontrollers
Renesas RL78/D1A R5F10Dxxx (single-line UART)
Script for the read/write DataFlash of the R5F10Dxxx microcontrollers used in dashboards of the bikes/scooters and cars. Script works only with IprogPro.
Please note: Renesas RL78/D1A microcontrollers don’t have reading commands of DataFlash and CodeFlash, only writing ones. But with this script it is possible to read DataFlash.
The script works through TOOL0 (dedicated single-line UART). The scheme of a cable will be in the instruction to a script (the scheme not difficult: DB44, diode and 4 wires).
THE CALCULATOR WAS REMOVED FROM SCRIPT!!!
Supported microcontrollers :
• 48-pin: R5F10CGxJ, R5F10DGxJ, R5F10CGxL, R5F10DGxL (x = B, C, D)
• 64-pin: R5F10CLDJ, R5F10DLxJ, R5F10CLDL, R5F10DLxL (x = D, E)
• 80-pin: R5F10CMxJ, R5F10CMxL (x = D, E),R5F10DMxJ, R5F10DMxL (x = D, E, F, G, J)
• 100-pin: R5F10DPxJ, R5F10DPxL (x = E, F, G, J), R5F10TPJJ, R5F10TPJL
These microcontrollers are used in dashboards (the list not full):
1. Bajaj Pulsar 220
2. Bajaj Pulsar 200RS
3. Bajaj New Avenger
4. Hero Passion Pro
5. Mahindra Kuv100
6. Maruti Suzuki Brezza
7. Mitsubishi Colt T120SS
8. Piaggio Vespa
9. Proton Saga
10. Suzuki Access
11. Suzuki Carry Futura
12. TVS Star City+
13. TVS Victor
14. TVS Star City
15. TVS Apache RTR150
16. TVS Apache RTR200
17. Yamaha YZF-R125, MT-125
Video of script working
MAZ/KAMAZ/UAZ PA8046-1,2,3,4 (ATTINY2313, AT90S2313)
Script for working with MAZ/KAMAZ/UAZ instrument panels:
- PA8046-1
- PA8046-2
- PA8046-3
- PA8046-4
Attention!! The script is only for IprogPro programmer!!!
Script for working with instrument panels made on ATTINY2313/AT90S2313 microcontrollers, has a built-in calculator. The script works through the ISP connector of the speedometer (it is necessary to disassemble the speedometer and solder 6 wires). For PA8046-3, PA8046-4 instrument panels, the firmware HAS a sensor calibration function!!!
Chevrolet Aveo MB90Fxxx+93C56 (DASH connector)
The script for mileage correction of Chevrolet Aveo MB90Fxxx+93C56 works via the panel connector.
As you know, to get to the EEPROM in these panels, you need to remove the arrows, unsolder the display or drill a hole in the plastic under the silkscreen.
With this script, you don’t need to do this.
Tagaz Tager/SsangYong Korando MB90F428G+93LC56 (ISP connector)
The script for mileage correction Tagaz Tager/SsangYong Korando MB90F428G+93LC56 works via the ISP connector located on the board under the rear panel cover.
As you know, to get to the EEPROM in these panels, you need to remove the arrows, solder the display.
With this script, you do not need to do this.
Kia/Hyundai VDO Continental OBD2 (CAN-BUS)
These scripts allow you to adjust the mileage on Kia/Hyundai NEC+24C16 and NEC D70F35xx/R7F7014xx OBD2 (CAN-BUS) vehicles. The script works only with IprogPro.
Scripts define CAN-ID of the instrument cluster, built-in calculator automatically defines mileage. Reading/Writing full EEPROM dump, or writing only mileage area.
List of supported cars
- Ceed 2009+, 2012+, 2014+ (NEC+24C16)
- Rio 2011+ (NEC+24C16)
- Sorento 2009+, 2012+ (NEC+24C16)
- Soul 2010+ (NEC+24C16)
- Magentis/Optima 2012+ (NEC+24C16)
- Sportage 2010+, 2015+ (NEC+24C16)
- Accent 2010+ (NEC+24C16)
- Genesis 2014+ (NEC+24C16)
- I20 2010+ (NEC+24C16)
- Solaris 2010+, 2013+ (NEC+24C16)
- SsangYong Action/Korando Sport (NEC+24C16)
- SsangYong Tivoli (NEC70F35xx)
- Stinger (NEC70F35xx) 2018+
- Sportage (NEC70F35xx) 2014+, 2016+
- Ceed (NEC70F35xx) 2015+
- Optima (K5) (NEC70F35xx) 2014+
- Sorento (NEC70F35xx) 2015+
- Soul (NEC70F35xx) 2014+
- Mohave (NEC70F35xx) 2017+
- Rio (NEC70F35xx) 2017+
- Azera (NEC70F35xx) 2016+
- Genesis (NEC70F35xx) 2014+
- Genesis G70 (NEC70F35xx)
- I20 (NEC70F35xx) 2014+
- Creta (NEC70F35xx)
- Tucson (NEC70F35xx) 2015+
- Solaris (NEC70F35xx) 2017+
- Sonata (NEC70F35xx) 2015+
- Veloster (NEC70F35xx) 2015+
The list is not complete, in theory all Kia/Hyundai panels on NEC+24C16 and NEC D70F35xx/R7F7014xx should be supported.
Kia Sportage 2016+ YAZAKI (NEC UPD70F3526+25160) OBD2
Script only for IprogPro programmer!!!
The script allows you to read/write mileage in YAZAKI panels of the Kia Sportage 2016+ car via CAN-bus. Automatic detection of the panel type (YAZAKI or VDO). The script supports work with the panel both “on the table” and via OBD2
Mitsubishi OBD2 (CAN-BUS)
The script works only with IprogPro!!!!
The package include 4 scripts:
- Script Mitsubishi Outlander NEC70F342x+93C76 OBD2 allows to read/write mileage in Mitsubishi Outlander III 2012-, Pajero Sport IV , Triton/L200 2016-, Fiat Fullback 2016- dashboards via CAN-bus. Support Colour and Monochrome display type of dashboards. The script supports working with dashboard “on the bench”, and through OBDII.
The list of the supported dashboards:
- Mitsubishi Outlander III monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
- Mitsubishi Outlander III colour display dashboard with NEC UPD70F3425 + 93C76 OBD2.
- Mitsubishi Pajero Sport IV colour display dashboard with NEC UPD70F3425 + 93C76 OBD2.
- Mitsubishi Triton/L200 monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
- Fiat Fullback monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
Video of script work
- Script ASX/Lancer X/Outlander MB91F223+93C76(86) OBD2 allows to read/write mileage in Mitsubishi ASX/Lancer X/Outlander, Citroen C-Crosser, Peugeot 4007 dashboards via CAN-bus. Support Nippon Seiki (NS) dashboard with colour displayand MB91F223+93C76(86) Videoof the script working
3. Script ASX NEC70F352x OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi ASX 2014+ dashboards via CAN-bus. Support Continental eepromless dashboards with NEC70F3529 and NEC70F3523 MCU’s.
4. Script Eclipse NEC70F352x OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi Eclipse 2017+ dashboards via CAN-bus. Support Continental eepromless dashboards with NEC70F3529 MCU.
5. Script Eclipse R7F701404 OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi Eclipse 2019+ dashboards via CAN-bus. Support Continental eepromless dashboards with Renesas R7F701404 MCU.
Dacia Logan2/Duster2 MB96F6A6(MB96F385+95160) OBD2
Script only for IprogPro programmer!!!
Script for mileage correction in Dacia Logan2/Duster2 dashboards made on MB96F6A6 or MB96F385+95160.
The script supports mileage reading/writing, FLASH reading/writing. The processor type is determined automatically. When you press the Write KM button, the script checks whether the panel patch has already been used and if not, it offers to patch the panel to change the mileage. Also, the script has the Patch FLASH function (patch the FLASH panel to unbind from ABS). In order to patch the panel, you must first read FLASH (Read FLASH) or open the original FLASH file (Open FLASH), press the Patch FLASH button and then write FLASH (Write FLASH).
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
Renault KWID / Datsun Redi-GO MB96F119RB OBD2
Script only for IprogPro programmer!!!
Script for mileage correction in Visteon instrument clusters of Renault KWID cars made on the Spansion MB96F119RB microcontroller.
The script supports mileage reading/writing, FLASH reading/writing. When you press the Write KM button, the script checks whether the panel patch has already been used and if not, it offers to patch the panel to change the mileage. Also, the script has the Patch FLASH function (panel FLASH patch for unbinding from ECU/ABS). In order to patch the panel, you must first read FLASH (Read FLASH) or open the original FLASH file (Open FLASH), press the Patch FLASH button and then write FLASH (Write FLASH).
The script works via the OBD2 (CAN-BUS) diagnostic connector of the car.
Video of the script in action
Nissan/Infiniti Hitachi ECU Immo OFF (Dump solution)
Script only for IprogPro programmer!!!
The script allows you to disable the immobilizer in the ECU of Nissan/Infinity cars manufactured in 2001-2010. Supported ECUs are Hitachi GEN1 K-line/CAN based on SH705x microcontrollers (SH705415N, SH705507N, SH705513N, SH705519N, SH705520N, SH705524N, SH705529N, SH705821N, SH705823N, SH705826N). The script works with Flash dumps read via OBD2, JTAG, AUD.
Webasto TTV Landrover/Volvo (WBUS/K-Line)
Script only for IprogPro programmer!!!
The script allows reading data (identification, hours, errors), reading/writing the processor EEPROM area (automatic detection of EEPROM size when reading) and saving it in .bin format, built-in calculator of operating hours, number of starts, etc., erasing errors.
Hyundai Kona 2018 S&T Motiv OBD2
Script only for IprogPro programmer!!!
Script for mileage correction in Hyundai Kona 2018+ dashboards made on Spansion S6J300BKSE or S6J32BAKSE microcontrollers. The script supports mileage reading/writing. The script works via the OBD2 (CAN-BUS) diagnostic connector of the car.
Kia Denso MB90F025(037)+93C66 OBD2
Script only for IprogPro programmer!!!
Script for mileage correction in Kia Cerato, Cadenza, Carens, Carnival, Sedona, Quoris dashboards made on Fujitsu MB90F025 or MB90F037 microcontrollers and external EEPROM 93C66. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
List of supported cars:
Equus (Centennial) 2013-2015 Full TFT LCD (mb91F037+93C66)
Cadenza 2013-2016 7in TFT LCD (mb91F037+93C66)
Carens 2012-2016 SuperVision TFT LCD (mb91F037+93C66)
Carens 2012-2016 Small LCD (mb90F026+93C66)
Carnival (Sedona) 2014+ Small segment LCD (mb91F047+93C66)
Cerato (K3, Forte) 2012-2016 Segment LCD (mb90F025+93C66)
Cerato (K3, Forte) 2012-2017 SuperVision Monochrome (mb91F037+93C66)
Cerato (K3, Forte) 2012-2017 SuperVision TFT LCD (mb91F037+93C66)
Quoris 2012-2014 SuperVision Full TFT LCD (mb91F037+93C66)
Quoris 2012-2014 SuperVision TFT LCD (mb91F037+93C66)
Quoris 2015-2017 SuperVision Full TFT LCD (mb91F037+93C66)
LandRover/RangeRover CEM PIC18F6620
Script for working with CEM module of cars:
- LandRover Discovery 3, LR3 (2004-2010)
- RangeRover Sport (2005-2010)
Attention!! The script is only for the IprogPro programmer!!!
In these cars, the CEM module contains a PIC18F6620 microcontroller that is closed from reading. The script allows you to read/write the EEPROM of the microcontroller for subsequent addition of a transponder, or modification of the EEPROM contents. At the moment, the script supports reading/writing EEPROM, outputting transponder IDs to the table, and generating transponders on CN3.
Renesas V850E2, V850E2-L (Single-wire UART)
Attention!! Script only for IprogPro programmer!!!
Package of scripts for working with Renesas V850E2/Dx,Fx,Sx and V850E2/Fx-L processors
The scripts support reading/writing/erasing CodeFlash, DataFlash of Renesas V850E2 microcontrollers via Single-wire UART. The scripts automatically determine the microcontroller name and the volume of CodeFlash and DataFlash.
Video of the script in action
List of supported microcontrollers: 70F3505, 70F3506, 70F3507, 70F3508, 70F3509, 70F3522, 70F3523, 70F3524, 70F3525, 70F3526, 70F3529, 70F3532, 70F3535, 70F3536, 70F3537, 70F3548, 70F3549, 70F3550, 70F3551, 70F3552, 70F3553, 70F3554, 70F3555, 70F3556, 70F3557, 70F3558, 70F3561, 70F3564, 70F3570, 70F3571, 70F3572, 70F3573, 70F3574, 70F3575, 70F3576, 70F3577, 70F3578, 70F3579, 70F3580, 70F3582, 70F3583, 70F3584, 70F3585, 70F4000, 70F4001, 70F4002, 70F4003, 70F4004, 70F4005, 70F4006, 70F4007, 70F4008, 70F4009, 70F4010, 70F4013, 70F4014, 70F4015, 70F4016, 70F4017, 70F4018, 70F4019
Renault Arkana/Duster (R7F701400) OBD2 + ABS
Attention!! Script only for IprogPro programmer!!!
Script for working with Dacia Duster2/Logan2/Sandero2, Renault Arkana RH850 (R7F701400) OBD2(CAN-BUS) instrument clusters.
ABS SUPPORT ADDED VIA OBD2!!!
Script for mileage correction in Dacia Duster2/Logan2/Sandero2, Renault Arkana instrument clusters made on Renesas RH850 (R7F701400). Script supports reading/writing EEPROM and mileage, reading FLASH. Script works via OBD2 (CAN-BUS) diagnostic connector of the car or on the table (connection is available in the pdf help file).
Video of the script in action
Subaru Impreza/XV/Crosstrek 2017 Coding OBD2
Script for changing the panel settings (coding) Subaru Impreza/XV/Crosstrek 2017 via OBD2 (CAN-BUS). The script is relevant for swappers, as well as if any unit is damaged and its replacement is not financially profitable (or there was a replacement for a cheap option, such as adaptive headlights for simple headlights).
Activate / Deactivate EyeSight, Auto Start & Stop, SI-X, SI-DriveDMS, LED Headlights, TMPS and other settings. In the future, it is planned to add scripts for other models and years.
Video of the script working
Added:Â script for changing the configuration of the dashboards SubarLegasy/Outback 2015 Dashboard Coding OBD2(CAN-BUS).
Suzuki SX4/Baleno (MB91F577+93C86) (UART)
Attention!! Scripts only for the IprogPro programmer!!!
A script for mileage correction in the NS instrument panels of Suzuki SX4, Baleno cars made on the Fujitsu MB91F577BHS microcontroller and external EEPROM 93C86 (MSOP8). The script was created for the convenience of working with these panels. In these panels, not only is the EEPROM in the MSOP8 case and it is located on the arrow side, but there are also arrows a la Mazda, which are not everyone’s favorite, which are better not to approach without a special arrow puller.
- The script supports reading/writing EEPROM, has a built-in mileage calculator. Work with the panel is carried out through dots on the back side of the printed circuit board.
- Also added a script for mileage correction in NS instrument panels of Suzuki SX4, Baleno cars made on Fujitsu MB91F579CHS microcontroller and external EEPROM 93C86 (MSOP8)
Suzuki Vitara/Ignis/XL (MB91F579(577)+25C320)
Attention!! Scripts only for the IprogPro programmer!!!
Scripts for mileage correction in the NS instrument clusters of Suzuki Vitara/Ignis/XL7 cars made on Fujitsu MB91F579CHS or MB91F577BHS microcontrollers and external EEPROM 25C320 (TSOP8). The script was created for the convenience of working with these panels.
There is NO in-circuit access to EEPROM in the Suzuki Vitara panel, i.e. to read/write EEPROM, you need to remove 4 arrows, and they are usually Mazda ones, and with large arrows, the arrow remover is useless due to the arrow design. Because of this, a script was created that works with EEPROM through the MB91F579 processor.
In Suzuki Ignis EEPROM is under the back cover, the script is made to avoid the hassle of pogopins or soldering, work with EEPROM is carried out through the MB91F577 processor. The script supports reading/writing EEPROM, has a built-in mileage calculator. Work with the panel is carried out through dots on the back side of the printed circuit board.
Suzuki SX4, Vitara (NEC70F3425+93C86) OBD2
Script only for IprogPro programmer!!!
The script allows you to read/write mileage in Suzuki SX4, Vitara (NEC70F3425+93c86) panels via OBD2 (CAN-bus).
Supported firmware versions:
- 34100-54PA
- 34100-61MA
- 34100-65MA
- 34100-67MA (added 09/22/2024)
- 34100-84RA
Video of script working
Chery Tiggo 7 (MB91F594BS) UART
Script for mileage correction in BOSCH instrument panels of Chery Tiggo 5 and Chery Tiggo 7 cars made on Fujitsu MB91F594BS microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
DO NOT TRY to work with this panel with programmers such as UPA, VVDIPROG – you will get problems with resetting the mileage.
SsangYong Rexton/Korando 2018- R7F701412 OBD2
Script for working with car dashboards:
- SsangYong Rexton 2018- R7F701412 OBD2 (CAN-BUS)
- SsangYong Korando 2018- R7F701412 OBD2 (CAN-BUS)
- SsangYong Korando 2019- R7F701404 OBD2 (CAN-BUS)
- Mahindra Alturas 2018- R7F701412 OBD2 (CAN-BUS)
Script for mileage correction in Continental dashboards of SsangYong Rexton/Korando cars made on the Renesas R7F701412 microcontroller. The script supports reading/writing the EEPROM of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through the OBD2 diagnostic connector (CAN-BUS).
DO NOT try to work with R7F7014xx processors via UART programmers – you will get a dead panel.
Mazda Universal OBD2
The package contains 2 scripts: Mazda_Universal_OBD2 and Mazda_6_Hitachi_93C66_OBD2.
The first script is universal, supports panels made on Fujitsu microcontrollers with external EEPROM 93C56/66/76. The second script is designed for Mazda 6 instrument panels 2007-2012 made on Hitachi microcontroller with external EEPROM 93C66. The scripts support reading/writing EEPROM, have a built-in mileage calculator. Work with the panel is carried out through the OBD2 diagnostic connector (CAN-BUS) or on the table. Information for connecting on the table is available in the help file.
List of supported cars:
Mazda 2 (Demio) 93C66
Mazda 3 2005-08 (93С56)
Mazda 3 2009-13 (93С66)
Mazda 3 2014+ (93C76)
Mazda 6 2002-2006 (93C56)
Mazda 6, CX5 2013+ MB91Fxxx+93c76
Mazda 6, CX5 2013+ MB90Fxxx+93c76
Mazda CX-7 2007 (93C56)
Mazda CX-7 2009-2012 (93C66)
Mazda CX-9 2007-2009 (93C56)
Mazda Biante 2009 (93C56)
Mazda Premacy 2010 (93C56)
Mazda Premacy 2012 (93C66)
Mazda Tribute 2004 (93C56)
Ford Escape 2006-2008 (93C56)
Nissan Lafesta 2011 (93C66)
Mazda 6 2019+ Big Display (93c76)
Mazda 6 2007-2012 (93C66)
Chevrolet Captiva 9S12HZ128 OBD2 (GMLAN)
Script for mileage correction in Chevrolet Captiva dashboards made on Motorola/Freescale 9S12HZ128. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (GMLAN) diagnostic connector of the car or on the table (the connection is in the pdf help file).
The script works ONLY with the adapter since it uses GMLAN, which is not available in other adapters!!!
Video of the script in action
Chevrolet Captiva (MB90F394+93C86) OBD2
Script for mileage correction in Chevrolet Captiva dashboards made on Fujitsu MB90F394 and external EEPROM 93C86. The script supports mileage recording. The script works through the OBD2 (GMLAN) diagnostic connector of the car or on the table (the connection is in the pdf help file).
The script works ONLY with the adapter from @_UnderTakeR_Â since it uses GMLAN, which is not available in other adapters!!!
Video of the script in action
Ford 6000CD Code (NEC70F3357+24C16) OBD2
Script for working with Ford Visteon/Sony 6000CD 2011+ radios made on the NEC70F3357 microcontroller and EEPROM 24C16. The script supports reading/writing EEPROM, reading/changing the radio code, restoring from the “LOCKED” status (resetting input attempts).
The script is only for IprogPro!!!
Video of the script in action
Ford 6000CD Code (TMS470+24C16) OBD2
Script for working with Ford Visteon/Sony 6000CD/6CD radios based on TMS470R1VF48BPGEA/TMS470R1VF288PZA/TMS470AVF688APZA microcontrollers and 24C16 EEPROM. The script supports reading/writing EEPROM, reading/changing/disabling the radio code, restoring from the “LOCKED” status (resetting entry attempts).
The script is only for IprogPro!!!
Video of script 1
Video of script 2
Video of script 3
Renault ATE ABS/ESC/CDC/ESP OBD2
Script for working with ABS/ESC/CDC/ESP units manufactured by ATE of Renault cars. The script automatically determines the size of the EEPROM (95160,95320,95640), supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench (connections are available in the pdf help file).
The list of models on which ATE units were installed:
- Renault Megane IV, Talisman, Trafic III, Scenic IV
- Renault Latitude, Fluence, Scala, Scenic III, Laguna III, Megane III
- Dacia Duster, Dokker, Sandero II
Video of the script in action
Fiat OBD2
The Fiat OBD2 package includes scripts:
1) Fiat Doblo/Ducato/Albea -2011 MagnetiMarelli NEC+95040 OBD2(CAN-BUS)
2) Fiat Ducato/Citroen Jumper/Peugeot Boxer 2011- MagnetiMarelli NEC+95160 OBD2(CAN-BUS)
3) Fiat 500 (NEC70F3422+95160) OBD2(CAN-BUS). Video of the script in action
4) Fiat 500L 2017- Continental (NEC70F3532) OBD2(CAN-BUS). Video of the script in action
5) Fiat 500X 2015- (NEC70F3529+24С32) OBD2(CAN-BUS). Video of the script in action
6) Fiat Panda 2012- (95160) OBD2(CAN-BUS).
Jeep OBD2
A script package for working with Jeep Cherokee, Grand Cherokee, Renegade OBD2(CAN-BUS) instrument panels.There are 5 scripts in the package:
- Jeep_Cherokee_2014_(NEC70F3525)_OBD2Â Videoof the script in action
- Jeep_Cherokee_2019_(R7F701414)_OBD2Â Videoof the script in action
- Jeep_Grand_Cherokee_2015_(70F3524_93C86)_OBD2Â Videoof the script in action
- Jeep_Renegade_2015_(NEC70F3525_95320)_OBD2Â Videoof the script in action
- Jeep_Grand_Cherokee_2019_(70F3524_93C86)_OBD2 (added 06/22/2023)
- Jeep_Wrangler_2021_(R7F701422_95320)_OBD2 (added 01/15/2024)Â Videoof the script in action
- Dodge_Challenger_2021_(R7F701411)_OBD2 (added 01/15/2024)Â Videoof the script in action
- Dodge_RAM_2019_(R7F701401)_OBD2 (added 02.02.2024)Â Videoof the script in action
- Dodge_Charger_2017_(NEC70F3525)_OBD2 (added 07.10.2024)
Nissan Qashqai/X-trail/Rogue 9S12XHZ256 OBD2
Script for working with dashboards of Nissan Qashqai/X-trail/Rogue cars 9S12XHZ256 OBD2 (CAN-BUS).
Script for mileage correction in dashboards of Nissan Qashqai/X-trail/Rogue 2010+ cars made on Motorola/Freescale 9S12XHZ256. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
Honda Accord 2018+ (S6J3001LSJ) OBD2
This script allows you to adjust the mileage on Honda Accord 2018+ cars with instrument panels made on Spansion S6J3001LSJ microcontrollers without external EEPROM.
The script has a recovery function if for some reason the panel has stopped responding.
A lot of work was done when creating the script, because the panels have a large number of TCFlash varieties. At the moment, the script contains 16 TCFlash files for S6J3001LSJ that are downloaded from the server as needed. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is in the pdf help file).
Video of the script in action
Haval H6 Coupe 2015+ Continental (NEC70F3529)
Script for mileage correction in Continental Haval H6 Coupe dashboards made on the Renesas 70F3529 microcontroller. The script supports reading/writing the microcontroller’s EEPROM and has a built-in mileage calculator. The script works via the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
Renault Megane4/Kadjar/Talisman/EspaceV OBD2
Script package for working with Renault Megane4/Kadjar/Talisman/EspaceV/Koleos (NEC70F3525/NEC70F3532) OBD2(CAN-BUS) instrument clusters
There are 3 scripts in the package:
- Renault_Talisman_Continental_(NEC70F3525)_OBD2, a script for working with Continental panels made on the NEC70F3525 microcontroller (monochrome display). The script supports reading/writing EEPROM, has a built-in mileage calculator. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench. Video of the script in action
- Renault_Talisman_Continental_(NEC70F3532)_OBD2, a script for working with Continental panels made on the NEC70F3532 microcontroller (color display). The script supports reading/writing EEPROM, has a built-in mileage calculator. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench. Video of the script in action
- Renault_Talisman_Visteon_(NEC70F3532)_OBD2, a script for working with Visteon/JCI panels made on the NEC70F3532 microcontroller (color display). The script supports reading/writing mileage. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 diagnostic connector (CAN-BUS) of the car or on the bench.
Panel appearance:
1) LED scales
2) arrow scales
KDBA 402928.001 + KD8083 + TESM-2YAA
Script package for working with instrument panels KDBA 402928.001 (PIC16F884) + KD8083 (PIC16F886/876A) + TESM-2YA (PIC16F630)
1) KDBA 402928.001 (PIC16F884)
2) KD8083 (PIC16F886/876A)
3) TESM-2YA (PIC16F630)
1) KDBA 402928.001 (PIC16F884) RIKOR. First, there will be a background story of the creation of this script. About 2 years ago, having decided to save time, I tried to make this panel using an Iprog+ script. Since IprogPro programmer was used, and the script was for Iprog+, then something went wrong and the script crashed the CODE Flash of the microcontroller. Having barely found the same panel, I replaced it for the client (the old-fashioned way, correcting the pickit + knobs) and thought that I should make a script for myself so that such jambs do not happen anymore, and it is much more convenient to work. The script supports reading / writing EEPROM PIC16F884, has a built-in mileage calculator. The script also has a function for restoring the firmware of the PIC16F884 in case of damage to the firmware by other devices or scripts.
Video of the script in action
2) KD8083 (PIC16F886 / 876A). The script was created for ease of use. Tired of reading with a pickit, then counting with your hands. The script supports reading/writing EEPROM PIC16F886/PIC16F876A, has a built-in engine hours calculator. The script also has a function for restoring the PIC16F886 firmware in case of firmware damage by other devices or scripts.
Both scripts work via the ICSP (In-Circuit Serial Programming) connector on the panel board (the connection is in the pdf help file).
CODE Flash in these instrument panels is CLOSED from reading.
Haval F7/F7x Continental (R7F701404) OBD2
Script for mileage correction in Continental dashboards of Haval F7/F7x/Jolion and GreatWall Poer cars made on the Renesas R7F701404 microcontroller.
The script supports reading/writing the microcontroller’s EEPROM, has a built-in mileage calculator.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
Haval H9 Continental (70F3532) OBD2
Script for mileage correction in Continental dashboards of GreatWall / Haval H9 cars made on the NEC70F3532 microcontroller. The script supports reading / writing the EEPROM of the microcontroller, has a built-in mileage calculator. The script works through the OBD2 diagnostic connector (CAN-BUS) of the car or on the table (the connection is in the pdf help file).
Video of the script in action
BRP (CAN-AM, Lynx, Ski-Doo) Bosch (70F3554)
Script for mileage correction in BOSCH instrument panels of BRP (Bombardier) equipment manufactured in 2019-2021, made on the Renesas/NEC 70F3554M1 microcontroller.
The script supports reading/writing the microcontroller’s DataFlash and has a built-in mileage calculator.
I’ll tell you a little about these panels. They are interesting because it is very problematic to disassemble them. The plastic speedometer housing consists of 2 parts glued together. Opening the instrument panel along this seam, we get chips and dents along the seam, and you can also damage the display cable located next to the case seam. Well, no less interesting is the mileage recalculation itself in the dump covered with checksums. Actually, this is why this script was created to make it easier to work with these instrument panels. To work with the script, a small technological hole is cut in the back cover of the case and several wires are soldered to the board. The connection is in the pdf help file. The calculation of the new mileage works ONLY with the instrument panel connected to the programmer.
Video of the script in action
Chery Tiggo 7 Pro (S6J328CKSP) (UART)
Script for mileage correction in BOSCH instrument panels of Chery Tiggo 7/8 Pro cars made on the Spansion S6J328CKSP microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the instrument panel connected to the programmer.
Kia Rio 2021 (NEC70F3524) Continental OBD2
Script for mileage correction in dashboards of 2021 Kia Rio cars from Continental made on the Renesas (NEC) 70F3524 microcontroller.
I’ll tell you a little about these panels. In principle, these dashboards are no different from the panels of previous years, except that the manufacturer has disabled EEPROM recording if the mileage is more than 100 km. That is, if the mileage on the display is from 0 to 100 km, then EEPROM recording works, if more than 100 km, the panel responds with an error that such a command (EEPROM recording) is not supported.
This script allows you to bypass this problem. The script works completely via OBD2. It may also support other 2021 Kia / Hyundai models with NEC70F3524.
Video of the script in action
Mitsubishi Pajero (S6J329CLSP) (UART)
Script for mileage correction in Mitsubishi Pajero dashboards made on the Spansion S6J329CLSP microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the dashboard connected to the programmer. Attention!! The script is only for the IprogPro programmer!!!
K5/Stonic/Rio 2021 (R7F701418) Continental
The kit includes three scripts for mileage correction in the dashboards of Kia K5/Stonic/Rio 2021 cars from Continental, made on the R7F701418 microcontroller, and Kia K5/Palisade Full LCD 2021 from Continental, made on the R7F701414 microcontroller.
- Kia K5/Stonic/Rio 2021 (R7F701418) Continental OBD2
- Kia K5/Palisade Full LCD 2021 (R7F701414) Continental OBD2
- Kia_Stinger_2021_(R7F701411)_Continental_OBD2
In general, these dashboards are no different from the previous years’ dashboards, except that the manufacturer has disabled EEPROM recording if the mileage is more than 100 km. That is, if the mileage on the display is from 0 to 100 km, then EEPROM recording works, if more than 100 km, then the panel responds with an error that such a command (EEPROM recording) is not supported.
This script allows you to bypass this problem. The script works with a connection to the internal CAN bus of the car (bypassing the Gateway) or on the table. It may also support other 2021 Kia / Hyundai models with R7F701418 / R7F701414.
Video of the script in action
Chevrolet Captiva (S6J324CKSP) (UART)
Script for mileage correction in the dashboards of Chevrolet Captiva cars (Baojun 530, Wuling Almaz, MG Hector) 2020 model year made on the Spansion S6J324CKSP microcontroller. The script supports reading / writing WorkFlash of the microcontroller, reading TCFlash, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the dashboard connected to the programmer.
Kia/Hyundai R7F7014xx DKNR (UART)
Script for mileage correction in DKNR instrument clusters of Kia/Hyundai 2021 cars made on Renesas R7F7014xx microcontrollers. The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator.
The mileage calculation is accurate to a hundred kilometers, i.e. if you see 26156 km on the display, the calculator will determine the mileage of 26100 km. Accordingly, if you enter 100 km, then the panel display will show a mileage equal to 100 km + the remainder of dividing the old mileage by 100 (26156/100 remainder 56 km) = 156 km. When entering a new mileage of 0, you will get a mileage of 56 km. Of course, this has its own downside, that you cannot accurately set the desired mileage (although usually, few customers need exact numbers). But there is also a plus, that you don’t need to first reset the mileage to 0 via UART and then set the desired mileage via diagnostics as is done in other devices.
List of supported car models:
Kia Cerato 2021+ (R7F701401)
Kia Ceed 2021+ (R7F701401)
Kia Carnival 2021+ (R7F701421)
Hyundai Alcazar 2021+ Full LCD (R7F701421)
Hyundai Staria 2021+ Full LCD (R7F701421)
Hyundai Kona 2021+ Full LCD (R7F701401)
Hyundai Tucson 2021+ (R7F701421)
Hyundai Tucson 2021+ Full LCD (R7F701421)
Toyota Continental OBD2 v2
Attention!! Script only for IprogPro programmer!!!
The set includes two scripts for mileage correction in the dashboards of Toyota Avanza 2022 by Continental, made on the R7F701442 microcontroller, and Toyota Raize 2021 by Continental, made on the R7F701417 microcontroller.
Perdoua Myvi with R7F701417
Toyota Yaris Cross 2025 R7F701442
The scripts support reading/writing the EEPROM memory of the microcontroller, have a built-in mileage calculator.
Smart W453/Renault Twingo 3 + ABS OBD2
The kit includes two scripts for mileage correction:
- Smart W453/Renault Twingo 3 with a panel based on the MB96F696RB processor and a monochrome display
2. Smart W453/Renault Twingo 3 with a panel based on the NEC70F3536 processor and a TFT display.
In general, there is practically nothing to say about these cars. Smart W453 is nothing more than Renault Twingo3 in terms of its internals, so the mileage on these cars is in the instrument cluster and ABS. The scripts correct the mileage in the panel and in ABS via the OBD2 connector. In case of any error, the panel can be restored by backing up the read firmware via the Write Flash button (in the case of the MB96F696RB panel) or the Recovery button (in the case of the NEC70F3536 panel).
Videos of scripts in action:
- https://www.youtube.com/watch?v=sBV1dWs5N7U
2. https://www.youtube.com/watch?v=QopQdgYLEXU
Jaguar XF OBD2
The kit includes two scripts for mileage correction:
- Jaguar XF with Visteon panel made on MAC7116+24C64
2. Jaguar XF 2016- with NipponSeiki panel made on 70F3525+93C86
The scripts correct the mileage in the panel via the OBD2 connector. Other Jaguar models with identical panels are probably supported (not verified).
Videos of the scripts in action:
- https://youtu.be/Da8p8UzyAHY
2. https://youtu.be/EGd6sD0oExw
BRP Bosch (70F3554) CAN-BUS
Script for mileage correction in BOSCH instrument panels of BRP (Bombardier) equipment manufactured in 2019-2021, implemented on the Renesas/NEC 70F3554M1 microcontroller.
The mileage in the panel is changed in 4 steps: 1) reading encodings, 2) writing patched firmware to reset the panel, 3) writing the original firmware, 4) writing mileage and restoring the panel encoding.
Unlike devices such as DP4 or Smok, the script does not spoil the panel data and there is no need to use BUDS2 to restore and bind the panel, since the script pre-reads the necessary encodings and saves them to a file, and after work restores this data. The script works via an OBD2 adapter with a CAN-BUS connection to the instrument panel connector. The connection is available in the pdf help file.
ATTENTION!!! The script does not support all firmware versions, some are not in its database, so if the firmware is unknown to the script, it will need to be read by FLUR0RTX and sent to me to add to the script.
Video of the script in action
Chevrolet Captiva S6J324CKSP (OBD2)
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Chevrolet Captiva dashboards (Baojun 530, Wuling Almaz, MG Hector) 2020 model year made on the Spansion S6J324CKSP microcontroller. The script supports reading / writing EEPROM emulation, has a built-in mileage calculator. The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Geely Tugella R7F701401/R7F701402 (UART)
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Geely Tugella 2022 instrument clusters – made on Renesas R7F701401/R7F701402 microcontrollers. The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Renesas V850E2 Locked (FLUR0RTX)
Attention!! Script only for IprogPro programmer!!!
Script is designed to read data from closed processors of the V850E2 family (70F3505, 70F306, 70F3507, 70F3508, 70F3509, 70F3522, 70F3523, 70F3524, 70F3525, 70F3526, 70F3529, 70F3532, 70F3554, etc.).
Automatic detection of processor, DataFlash and CodeFlash size. Reading/Writing DataFlash and CodeFlash. Erasing both DataFlash and CodeFlash separately, as well as erasing the entire chip. Reading/writing OPBT0 and OCD, setting protection bits.
The script has a specially developed algorithm for bypassing protection, faster, different from other programmers, which allows you to read the contents without errors. The script also reads REAL NATIVE OPBT0 and OCD bytes from closed processors. A special erasing procedure gives a small but chance to erase completely closed processors with the “Disable Chip Erase” protection bit set. The script works with the processor both in-circuit (with the FVDD pin of the processor raised), and on a ZIF adapter (sold separately, made to order).
Video of the script in action
Chery Tiggo 4/7/8 Pro S6J328CKSP (OBD2)
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Bosch instrument panels of Chery Tiggo 7/8 Pro and XCITE XCross 7 cars made on the Spansion S6J328CKSP microcontroller.
In short… The script for this instrument panel has already been made by me, but via UART with soldering of wires. At the same time, I already knew that the panel has access to EEPROM via CAN-BUS, but…. Work on the script was carried out for a long time, and all because the manufacturer Bosch, although left reading / writing EEPROM, but prohibited writing to the mileage area. I had to make a script through a patch of the panel flash. The panel has more than one firmware version, so the script has a firmware database on my server, which will be replenished. At the moment, there are 10 firmware on the server. If you encounter an unknown version, you will need to read TCFlash and WorkFlash via UART and send it to me to add to the database.
The script needs internet to work, download the required FLASH!!!
The script supports reading/writing EEPROM emulation, writing FLASH, has a built-in mileage calculator. The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Nissan Altima (NEC70F3532) Continental (OBD2)
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Continental dashboards of Nissan Altima 2019 cars made on Renesas/NEC 70F3532 microcontroller.
The script supports reading/writing EEPROM emulation, reading FLASH, has a built-in mileage calculator. The script works via OBD2 adapter (CAN-BUS). Video of the script in action
Great Wall Poer R7F701442 (OBD2)
Script for working with car dashboards: Great Wall Poer, Haval H5 New R7F701442 (OBD2)
Attention!! The script is only for the IprogPro programmer!!!
Script for mileage correction in the dashboards of Great Wall Poer, Haval H5 New cars made on the Renesas R7F701442 microcontroller. The script supports reading/writing mileage, reading DFLASH/FLASH. The script works via the OBD2 adapter (CAN-BUS). Video of the script
Toyota/Lexus SAS Tokai Rika Repair by CAN
Script for working with steering angle sensors (SAS) of Tokai Rika Toyota/Lexus cars
Attention!! Script only for IprogPro programmer!!!
Script restores the functionality of blocked (twisted more than 3 turns) sensors of Tokai Rika Toyota/Lexus cars. Script works on CAN-bus, connecting directly to the sensor connector. Video of the script
Renesas R5F10PLJL, Renesas R5F2134, NEC+93C66
Sensors with R5F2154 ARE NOT SUPPORTED!!!!
Renesas RH850 Locked (UART)
Script only for IprogPro!!!
ATTENTION!!! Script only for professional use!!! This means that you must understand what you are doing and what result you want to get.
If you do not have a sufficient level, then please do not buy this script, so as not to ask me questions later on how to use it.
If you are used to “press the button – the mileage changes” then this script is not for you. It will not have colorful pictures of boards with connections and calculators, you must test the necessary points yourself and connect to them based on the help file with pinouts of processors.
In some cases, you will have to use an oscilloscope or logic analyzer to check the process and adjust the script.
If you are still not scared, and in anticipation of making new cars like MB, Toyota and others with closed processors, then please check the text below:
Now let’s move from warnings to a description of the script itself.
- The script allows you to read/write the DataFlash of the processor in 4-byte mode. As you already know, in many cases, when reading the RH850 and writing back the read
dump, the instrument cluster or other units stopped working normally. Now, with this mode, you can easily write what was previously impossible.
Of course, there are some RH850 families that do not support this mode, so for such processors, reading occurs at 16 bytes. ATTENTION!!! If the DataFlash is read in 16Bytes mode, then write it back at your own risk!!! - The script allows you to read both open and closed (Locked) processors. With open ones, I think everything is clear and there is no need to tell much. Read/erased/written.With the locked ones, everything is much more complicated.
RH850 has several types of protection: No Security (no protection), ID Code protection (protection by 16-byte password), Command Protection Read/Write/Erase (protection from Reading/Writing/Erasing).
In addition, you can also set the Serial Programmer Disable protection.
The script allows you to bypass single protections Serial Programmer Disable and ID Code protection. That is, if you have both Serial Programmer Disable and ID Code protection enabled, then
you definitely need to know the ID Code.
In the case of single protection by ID Code (which you naturally do not know) the script allows reading, but writing and erasing will be unavailable without a known ID Code.
The script also determines the state of ICU-S (enable/disable). Some information about ICU-S can be read here
The script does not encrypt the read dumps, it saves them in normal form.
The adapter used to work with the script is almost identical to the adapter used with VAG scripts from @marchcat, raspberry is also used to form a glitch, but has a small modification for ease of use. The adapter diagram will be given to all participants.
Video of the script in action:
Reading/Writing in 4-byte mode
Reading/writing a processor with Serial Programmer Disable protection installed
Haval Jolion SRS 3658112XST01A (R7F701064)
Script only for IprogPro!!!
The script was created to reset (Renew) SRS units Haval Jolion 3658112XST01A with a closed (Locked) processor R7F701064. The processor in this unit has protection from reading and writing. With this script, you can make a new control unit that has already been linked and / or has data on a collision (Crash). Subsequently, the new unit can be linked again with diagnostic equipment.
That is, let’s say a unit arrived to you that has a Crash and the errors in it are not erased. After applying the script (we disassemble the unit, solder to the points on the board, press Renew), we get a new unit without VIN with the EOL Unlock status.
The script works via UART, photos of the connection are in the help file.
Kawasaki Ninja/Z900 R7F701442 (UART)
Script for mileage correction in Kawasaki Ninja/Z900 2020 instrument clusters – made on Renesas R7F701442 microcontrollers.
The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator. The panel is operated via points on the back side of the printed circuit board.
Renesas M32R JTAG
Script only for IprogPro!!!
Brief introduction: I think many people know that when flashing Subaru engine control units via Openport or PCMflash, there were cases of their failure, after which they could not be restored via OBD2. It was necessary to buy another unit, or send them to people who could restore them. The units were restored via JTAG using the Renesas emulator/debugger M32100T-EZ-E. This debugger is a rare, rarity and noticeably expensive thing. Now, with the help of this script package, you too can restore such units. Perhaps someone has even accumulated a whole stack of them.
Supported units on the processor marked WA12212970WWW which is a re-marked M32170F4VFP. Also in the package there is a script for working with the M32190 series of processors, which was found in Lexus Parking Assist.
Supported Processors: M32170F3xxx, M32170F4xxx, M32170F6VFP, M32171F2VFP, M32171F3VFP, M32171F4VFP, M32172F2VFP, M32173F2VFP, M32174F3xxx, M32174F4xxx, M32176F2VFP, M32176F3VFP, M32176F4VFP, M32180F8xxx, M32182F3xxx, M32182F8xxx, M32185F4VFP, M32186F8VFP, M32192F8xxx, M32195F4xxx, M32196F8xxx, WA12212970WWW, WA12212953WWW, WA12212954WWW, MH8104F, MH8106F of the M32R family. Others may be added if a sample is sent to me.
Video of the Subaru ECU script in action
Video of the Lexus Parking Assist script in action
Great Wall Poer R7F701428 (OBD2)
Script for mileage correction in Great Wall Poer 2023 car dashboards made on Renesas R7F701428 microcontroller. The script supports mileage reading/writing, DFLASH/FLASH reading. The script works via OBD2 adapter (CAN-BUS).
Jetour X70 Plus S6J328CKSP (CAN)
Script for mileage correction in the dashboards of Jetour X70 Plus 2020-2024 cars made on the Spansion S6J328CKSP microcontroller. The script supports mileage recording.
The script works via a CAN-BUS adapter that must be connected directly to the panel connector. The script DOES NOT WORK via the OBD2 connector in the car!!!
Haval H6 SRS 3658110XKN02A 0285015318 Renew
The script is created to reset (Renew) SRS units Haval H6 3658110XKN02A with a closed (Locked) processor R7F701064. The processor in this unit has protection from reading and writing. With this script, you can make a new control unit that has already been linked and / or has data on the collision (Crash). Subsequently, the new unit can be linked again with diagnostic equipment.
The script works via UART, photos of the connection are in the help file.
Ford RH850 Unprotected UART OBD2
Script for mileage correction in Continental instrument clusters of Ford cars made on UNPROTECTED Renesas R7F701402, R7F701403, R7F701405 microcontrollers.
The script supports reading/writing mileage, reading/writing EEPROM (CAN-BUS), as well as FLASH patching and FLASH recovery from a previously read backup (UART). In these instrument clusters, writing to some EEPROM cells is blocked. To unlock EEPROM writing, a FLASH patch via UART is required. After the patch, EEPROM writing is unlocked and, accordingly, mileage writing too.
The script works via the OBD2 adapter (CAN-BUS). Approximate list of cars: Escape, Fiesta, Focus 4, Transit, Kuga, Ecosport.
Video of the script in action:
KTM Duke SPC5645S (CAN-BUS)
Attention!! Script only for IprogPro programmer!!!
A script for mileage correction in KTM Duke motorcycle instrument clusters made on Freescale(NXP) SPC5645S microcontroller. The script supports mileage reading/writing, works via OBD2 adapter (CAN-BUS).
Video of script working
MG 5 EV (70F3532 Locked) Continental CAN-BUS
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Continental dashboards of MG 5/MG 6 cars manufactured in 2019-2024, made on a closed Renesas 70F3532 microcontroller.
The script supports reading/writing mileage, reading/writing EEPROM (CAN-BUS). The script works via OBD2 adapter (CAN-BUS). The car has a duplicate mileage in the BCM module, which you must correct manually.
Video of the script in action
Ford Bronco 7inch (R7F701441) Denso OBD2
A script for mileage correction in Denso instrument clusters of 2021 Ford Bronco vehicles (with a 7″ display) built on the proprietary Renesas R7F701441 microcontroller.
The script supports mileage reading/writing and EEPROM reading (CAN-BUS).
The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Nissan Juke/Sentra S6J329CLSP (OBD2)
Attention!! This script is for the IprogPro programmer only!!!
This script corrects mileage in Visteon instrument clusters for Nissan Juke/Sentra 2019-2024 vehicles using the Spansion S6J329CLSP microcontroller.
The script supports mileage reading/writing and flash writing. Writing shorter mileage is done via a patch to the dashboard’s flash. The dashboard has multiple firmware versions, so the script maintains a firmware database on my server, which will be updated. If you encounter an unknown version, please contact me to enable the flash reading function and then send me the read flash file to add to the server database.
The script requires internet access to run (download the required flash file)!!!
The script works via an OBD2 adapter (CAN-BUS).
These vehicles have an active mileage recorder. This script only changes the mileage in the dashboard.
Video of the script in action
Ford Ranger (R7F701405) Continental OBD2
A script for mileage correction in Continental Ford Ranger instrument clusters from 2019 onward, powered by Renesas R7F701405 microcontrollers.
The script supports mileage reading/writing and EEPROM reading/writing (CAN-BUS).
The script works via an OBD2 adapter (CAN-BUS).
Ford F150 8inch (R7F701441) Denso OBD2
A script for mileage correction in Denso instrument clusters of 2021 Ford F150 vehicles (with 8″ displays) built on the proprietary Renesas R7F701441 microcontroller.
The script supports mileage reading/writing and EEPROM reading (CAN-BUS).
The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Third-Party Software Scripts from panascan
SAS Tokai Rika Low Level Repair
Script for repairing steering angle sensors (SAS) of Toyota/Lexus/Suzuki cars
The script allows you to restore the functionality of those sensors that cannot be restored by other means, for example, via the CAN bus.
So, with this script, you can restore sensors that are no longer visible via the CAN bus (error U0126).
Works on sensors with R5F2134 processors (tested on sensors 89245-12040 89245-12050 89245-02060 89245-0R030), with the R5F2154 processor (89245-47010 89245-0K020). Reading/writing all areas of the processor memory (Data Flash and Rom Flash) is supported.
The script allows you to work with the 37440-68L010 sensor (R5F2134), used in Suzuki cars, currently only reading and writing Data Flash is available.
The script does not require an Internet connection to work.
It requires a connection to the contact pads on the printed circuit board. After recovery, calibration 0 via the CAN interface may be required (on the table, via the CAN adapter or on the car).
Tested with sensors:
- 89245-02060 (R5F2134)
- 89245-0K020 (R5F2154)
- 89245-0R030 (R5F2134)
- 89245-12040 (R5F2134)
- 89245-12050 (R5F2134)
- 89245-47010 (R5F2154)
- 37440-68L10 (R5F2154)
Reviews
There are no reviews yet.
