OBDSTAR P50 Support List
The OBDSTAR P50 is a professional-grade, intelligent diagnostic tool specifically designed for airbag crash data resetting, battery management, and steering angle sensor (SAS) calibration. As of early 2026, it supports 102 vehicle brands and over 15,900 ECU part numbers, making it one of the most comprehensive tools for SRS (Supplemental Restraint System) repairs.
Core Capabilities
One-Click Airbag Reset: Automatically clears crash records and internal fault codes from the airbag control module without requiring physical soldering or chip removal in most cases.
OBD & BENCH Modes: Supports resetting via the vehicle’s standard OBD port or directly on the “Bench” (removing the unit from the car) using the included P004 adapter.
Extended Reset Functions:
Battery Reset (BMS/MVBM): Specifically supports battery system resets for brands like Audi and Volvo in bench mode.
SAS Reset: Calibrates the Steering Angle Sensor (crucial after suspension or steering repairs), with notable support for Toyota and Lexus.
ECM/ECU Programming: Allows for reading and writing EEPROM and FLASH data, as well as writing the correct VIN back to a module after a crash clear.
Technical Specifications
Feature Details
Processor RK3128 Quad-Core ARM Cortex A7
Operating System Android 5.1.1
Display 5.0-inch capacitive touch screen (800×480 resolution)
Connectivity Supports Wi-Fi for one-click updates and remote assistance
Protocols CAN BUS (3&11, 6&14), CAN FD (for 2020+ models), K-Line, and GM Single CAN
Key Advantages
Fuzzy Search: Allows users to quickly find the correct ECU reset protocol by typing only a portion of the part number.
No Tokens: Most versions operate without per-use token fees and include one year of free software updates.
Upgradeability: Can be upgraded with additional software licenses to perform odometer correction (Mileage Calibration), effectively turning it into an “Odo Master” tool.
These product pages outline the OBDSTAR P50’s functionality for resetting airbag modules, managing battery systems, and calibrating steering angle sensors across numerous vehicle brands.
OBDSTAR P50 is the new generation of intelligent airbag reset equipment of OBDSTAR Technology Co., Ltd. It has powerful function and wide coverage, covering 102 brands and over 15500 ECU part No. and some MCU. It’s based on the RK3128 Quad-Core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch screen, touch sensitive.
Language: English only, can’t change to other languages.
Ship from US/ EU warehouse, fast delivery & no tax to the USA and EU countries.
OBDSTAR P50 Basic Functions:
1. Supports one-click airbag reset for 102 brands and over 15900 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. One year update for free. 150 USD for update per year from second year. ( 120 USD for another year of update if you renew it before expires)
6. Supports Hyundai/Kia TC2xxx types bench airbag reset with CAN FD adapter
7. Newly add Battery Reset for Audi/Volvo by BENCH
8. Support Tesla bench airbag reset
9. Support SAS reset function
Attention:
Unable to add function of ECU clone.
OBDSTAR P50 Advanced Functions:
Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing Crash Data Clear
Clear/Erase Crash: Clear ECU crash data
Unlock ECU
Battery Reset for Audi and Volvo by BENCH
P004 Highlights:
P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CAN BUS ECU;
3. Support 6&14 and 3&11 CAN BUS Protocol at the same time;
4. Optional CAN FD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. The DB15 connector can communicate with any OBDII-16 I/O interface.
How to use OBDSTAR P50?
Please register the device before using.
Instructions for registration.
Distributor code: 0086A002.
The general operation steps are as follows:
1. Read the part number—To see whether it reads the correct part number
2. Read fault codes Check if there is an airbag crash fault
3. Clear the fault code A few car models’ airbag fault codes can be cleared by cleaning the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the collision record
6. If there is a write VIN function, please write VIN ( Very few Ford and Renault models’ VIN information will be erased when cleaning the fault codes)
7. Clear the fault code
8. Read the fault code To confirm that the fault has been successfully cleared
Attention:
Any part number listed as DIAG ONLY, can read fault codes only, but can’t clear the crash data.
For any part number listed as PARTIALLY or BETA, if the P50 fails to work with it, there is no solution, but this is not a quality issue.
OBDSTAR P50 Vehicle Coverage:
1. Supported 95 brands:
ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAIC, BAOJUN, BENTLEY, BENZ, BMW, BRILLIANCE, BUICK, CADILLAC, CHANGAN, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DATSUN, DODGE, FAW, FERRARI, FIAT, FORD, GEELY, GMC, GREATWALL, HAIMA, HONDA, HONGQI, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, POLESTAR, PORSCHE, RENAULT, ROEWE, SCION, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE
2. Cover over 15900 ECU part No. (supporting fuzzy search)
3. Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570…
4. Support bench airbag reset for Tesla
5. Support SAS reset for TOYOTA
6. Support battery reset for Audi and Volvo;

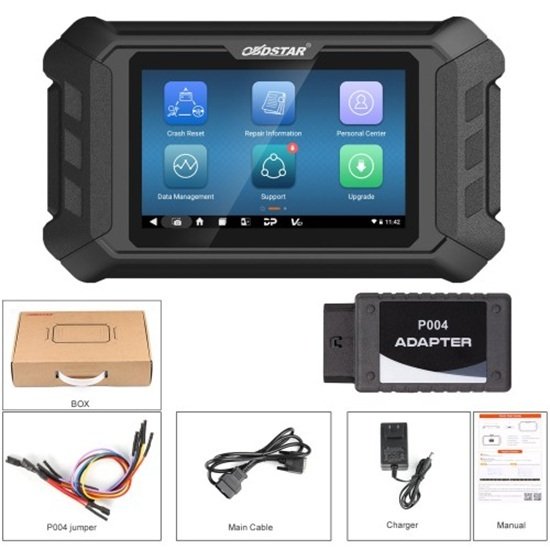

1pc x OBDSTAR P50 Main Unit
1pc x Main cable
1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A Charger;
You can purchase the OBDSTAR P50 Airbag Reset Tool in Dubai directly from Jabedul Dewan Trading Co, LLC, which is an authorized dealer for automotive diagnostic scanners and programming tools in the UAE.
Where to Buy: Jabedul Dewan Trading Co, LLC
The company maintains a physical presence in Dubai and also sells through major online marketplaces.
Physical Store Location: Nesto Hypermarket, Meena Bazaar – Shop F98 – 3 64 St – Bur Dubai – Al Fahidi – Dubai.
Operating Hours: Open daily from 9:00 AM to 11:00 PM.
Contact Information:
Phone/WhatsApp: +971 50 997 0171.
Official Website: auto-scan-tool.com.
Online Shopping Options:
Noon: Available for approximately 2700 AED with free delivery and a 1-year warranty.
Amazon UAE: Jabedul Dewan Trading operates as a seller on Amazon.ae, offering various diagnostic cables and tools.
Product Highlights
The OBDSTAR P50 is a specialized tool for intelligent airbag reset and ECU programming.
Coverage: Supports 102 brands and over 15,900 ECU part numbers (via OBD/BENCH).
Key Functions:
One-click airbag reset and clearing crash data.
Battery Reset for brands like Audi and Volvo via BENCH mode.
SAS Reset (Steering Angle Sensor) and ECM/PCM adaptation.
Read/Write EEPROM and FLASH, and VIN writing.
Hardware: Features a 5-inch touch screen, RK3128 quad-core processor, and Android 5.1.1 OS.
Updates: Includes one year of free software updates.
